JIS F 2029 Marine Mooring and Towing Bracket

Request a Quote Not what you need, please send your RFQs via Email.

Details

China JIS F 2029 Marine Mooring and Towing Bracket:

Marine mooring smit towing bracket can be used in the majority of marine applications,suit to many sizes mooring chains.It is a important component part in an emergency towing system or single poin mooring,it also be used solely for a chain connection on a ship or barge.

It is welded to the deck to withstand the breaking load of the chain being used. It works using a sliding pin which receives the towing chain and locks it quickly and securely into place.

1.Reliable and easy maintenance.

2.Simple structure with effective design.

3.Paint: Grey Epoxy Primer, for the middle paint and surface according to your requirement.

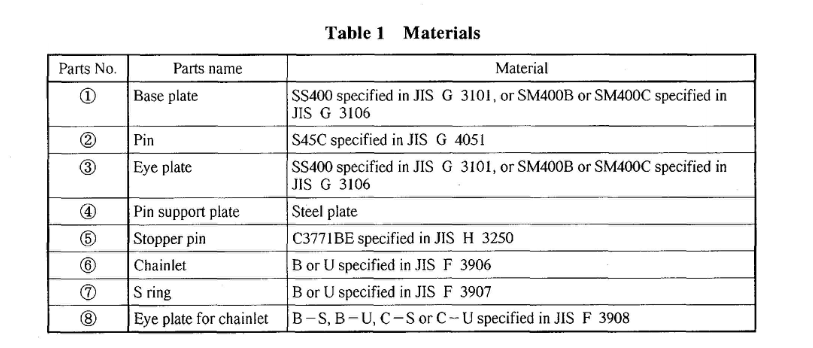

Towing Bracket Material

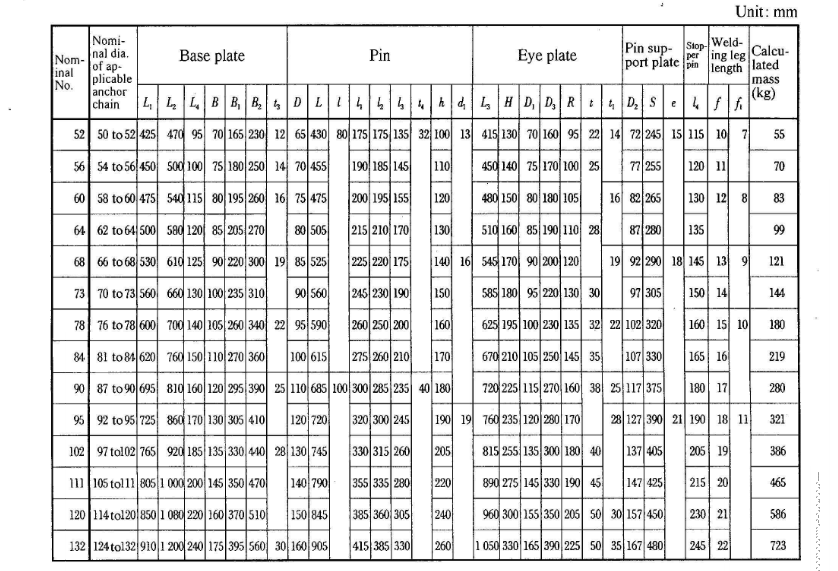

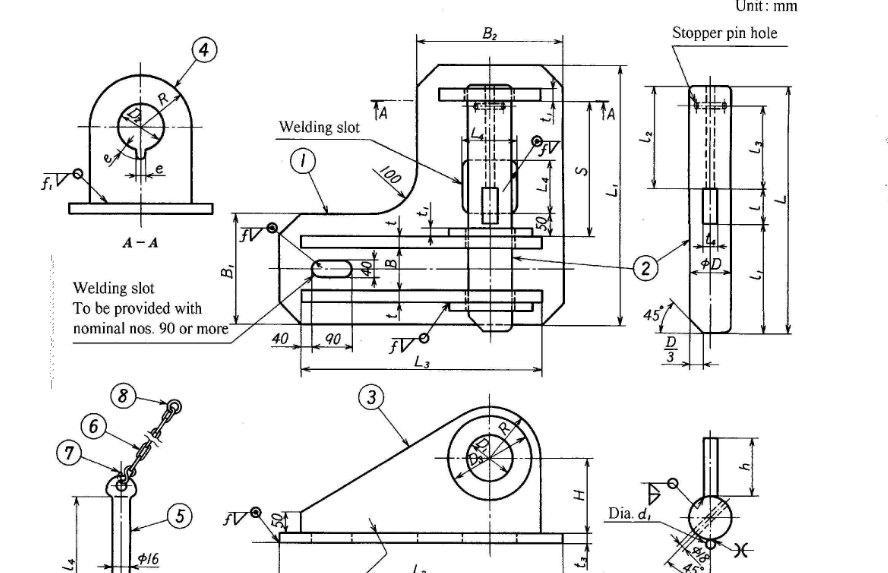

Size and drawing
