JKS200 Manual Type Hose Crimping Machine
- Category:Hose Crimping Machine
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China JKS200 Manual Type Hose Crimping Machine:

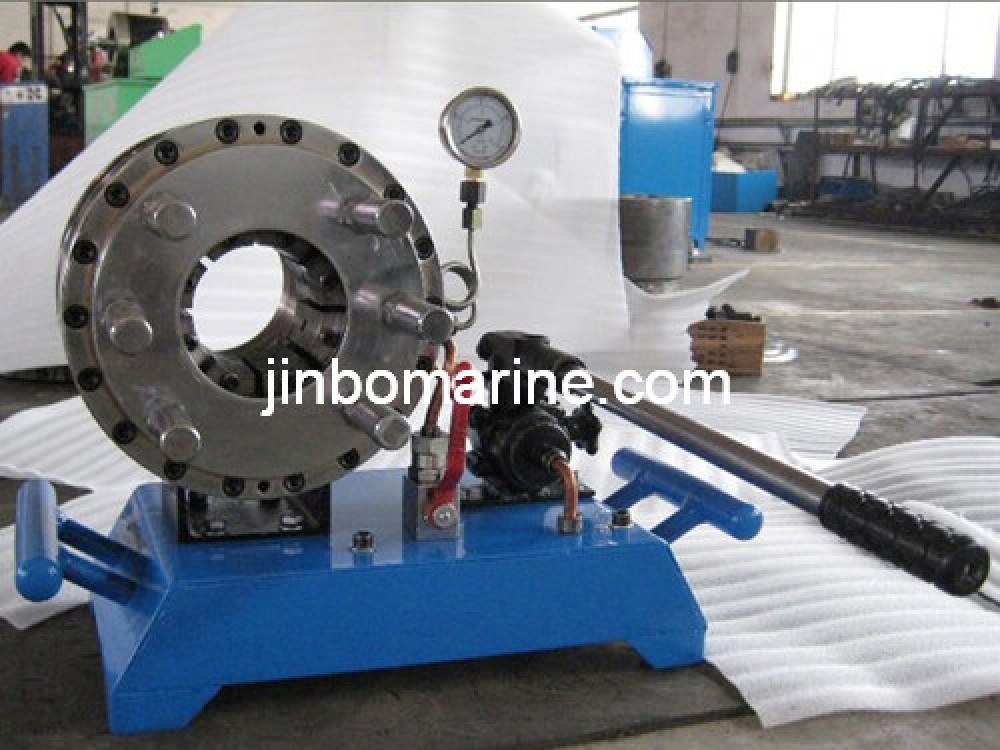

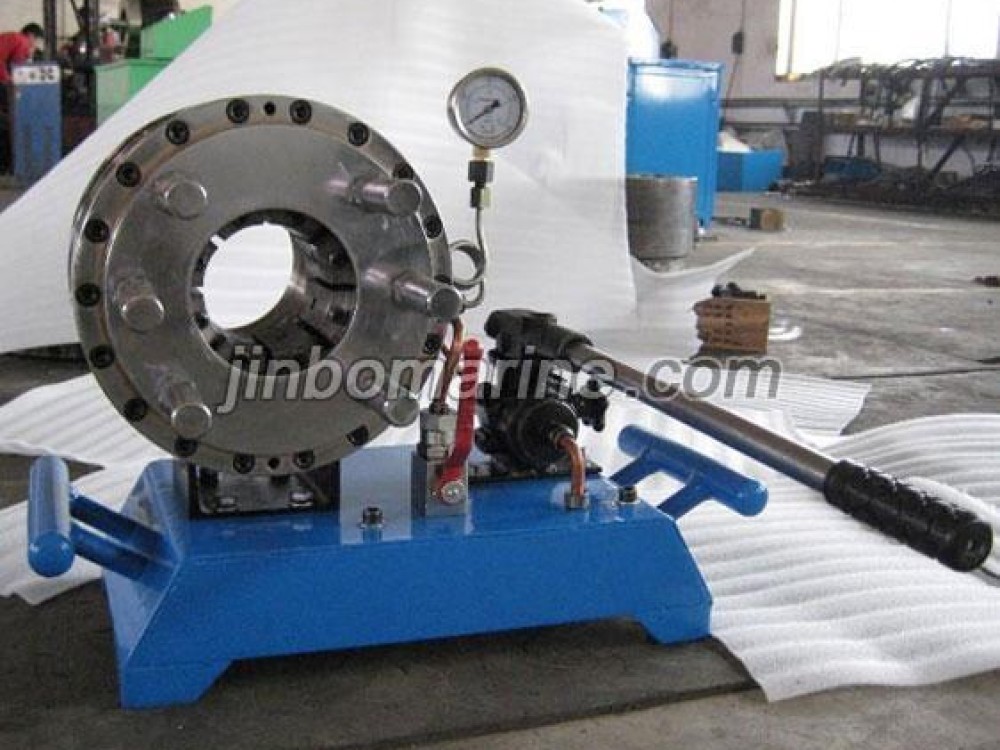

JKS200 Hose crimping machine is a portable type of machine which is simply designed and convenient for operating
and carrying. It takes manual pump of extra high pressure as power source. So it’s much suitable for the outdoor work and production of without electric power.
Hydro-cylinder pressure:40T
Displacement of oil pump:30ml Hydraulic oil
Summer:YB-N46
Winter:YB-N32
Crimpingrange:φ6——φ32mm
Weight:120kg
Volume:600×500×370mm

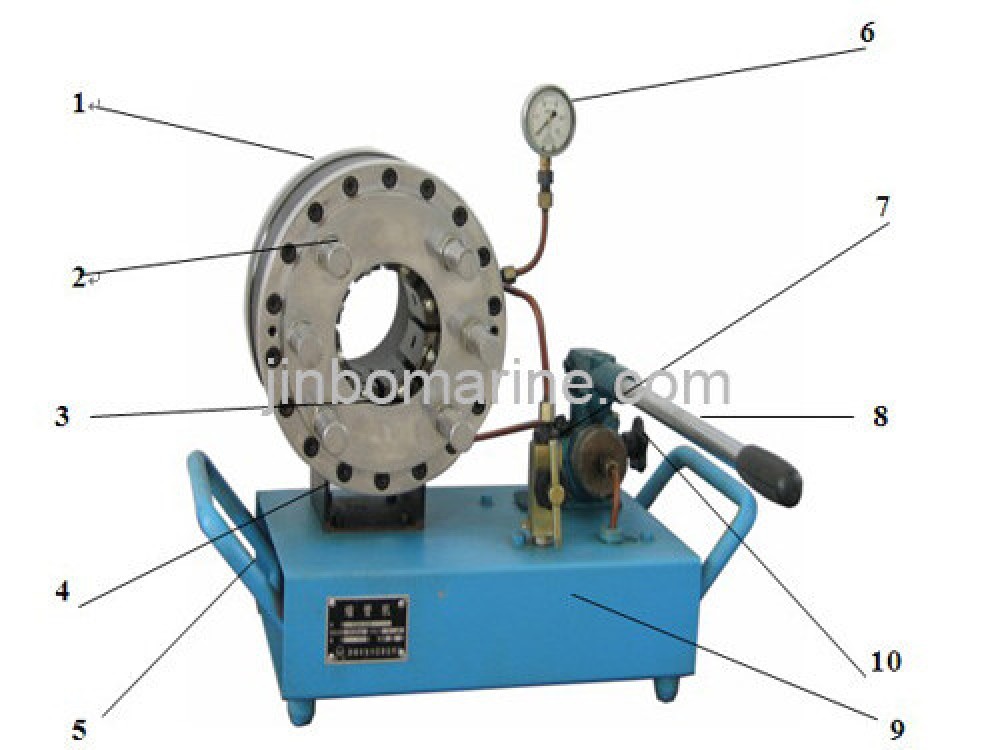

Diagram
1.Head 2.Thimble of bouncing spring 3.Tighten 4.Bracket 5.Handle 6.Pressure gauge 7.Valve
8.Pressurization pole 9.Oil tank 10.Valve of pump
|
