JSZW-10 Voltage Transformer

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

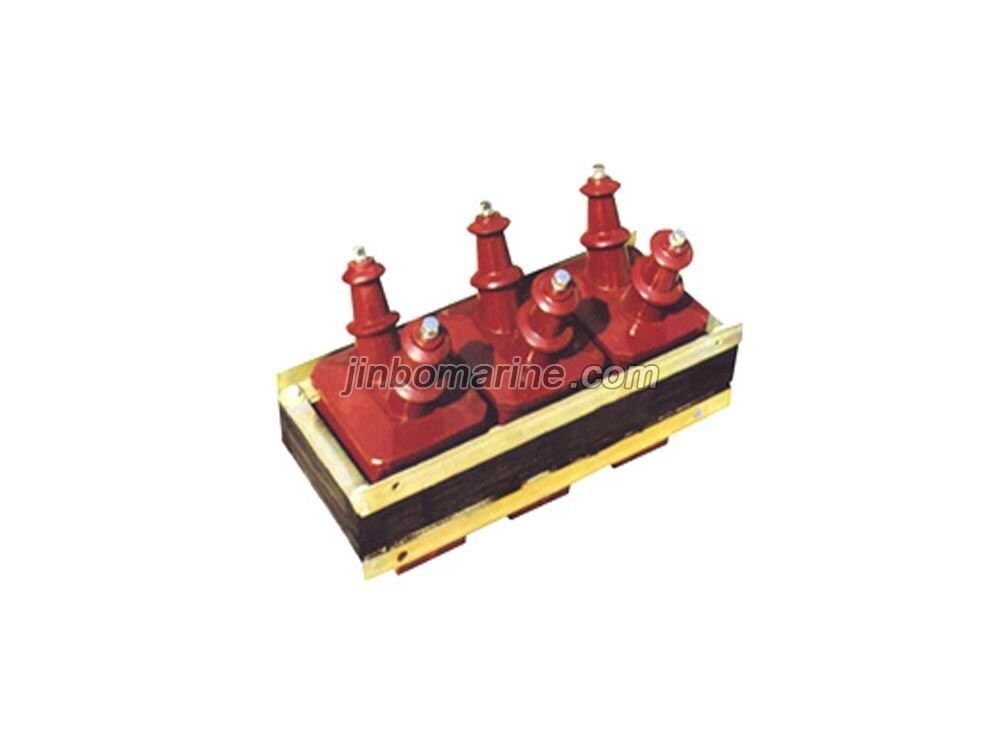

JSZW-10 Voltage Transformer

The product complies with the standards GB1207 and IEC186

JSZW-10 Voltage Transformer Parameters

Model Rated Voltage Ratio/V Rated Frequency/Hz Ultimate Output /VA Rated Insulation Level/KV
50.6
JSZW-10 10000/√3/100/√3/100/3 600 12/42/75
Model Rated Output/VA
0.5grade 1grade 3grade 6Pgrade
JSZW-10 90 150 300 75

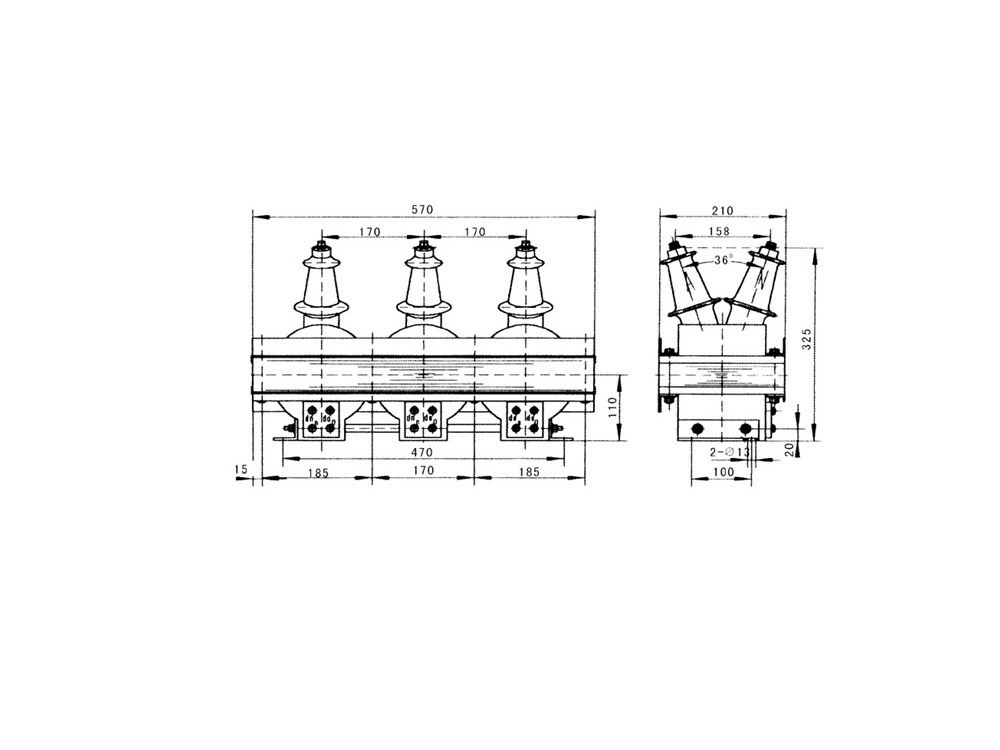

JSZW-10 Voltage Transformer Drawing
