JTZK Navy Integral Air Conditioning Unit

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

JTZK navy integral air conditioning unit is direct expansion, sea water cooled small sized marine heating and cooling unit, which includes cooling compressor, coaxial condenser, evaporator, centrifugal fan, 4-way solenoid valve , accumulator, pressure switch, condensate water pan, return air filter mesh, control box and control panel etc. The control has touch panel procedure control and knob type. The location of the unit can be under a seat berth, in a closet or in a locker, through flexible pre-insulated duct the conditioned air will be sent to supply air grill at high place and regulate the chamber temperature.

Technical Data:

Type JTZK-1.5-B JTZK-2-B JTZK-3-B JTZK-3.5-B JTZK-4.7-B JTZK-7-B
Cooling capacity Kw 1.5 2 3 3.5 4.7 7
Btu/hr 5000 7000 10000 12000 16000 24000
Heating capacity Kw 1.65 2.2 3.3 3.85 5.17 7.7
Btu/hr 5500 7700 11000 13200 17600 26400
Refrigerant R22
Power supply 220V 50Hz 1Φ
Total Power KW 0.75/0.88 0.9/1.03 1.1/1.23 1.3/1.45 1.5/1.67 2.2/2.35
Current A 4.5/5.28 5.4/6.18 6.6/7.38 7.8/8.7 9/10.02 13.2/14.1
Cooling sea water inlet temp. Cooling≤32℃, heating≥8℃
sea water flow m3/h 0.38 0.51 0.76 0.89 1.2 1.8

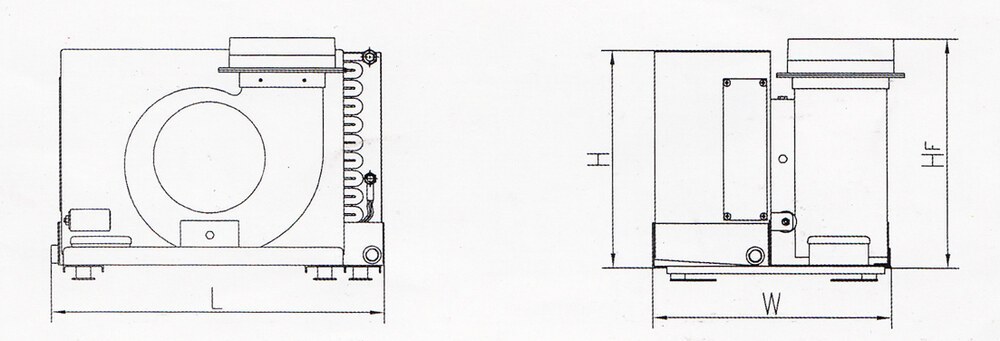

Dimension L mm 450 450 515 515 550 630
W mm 295 295 315 315 340 400
H mm 325 325 335 340 385 460
M mm 0 0 0 0 0 96
Weight kg 27 30 34 39 42 65
