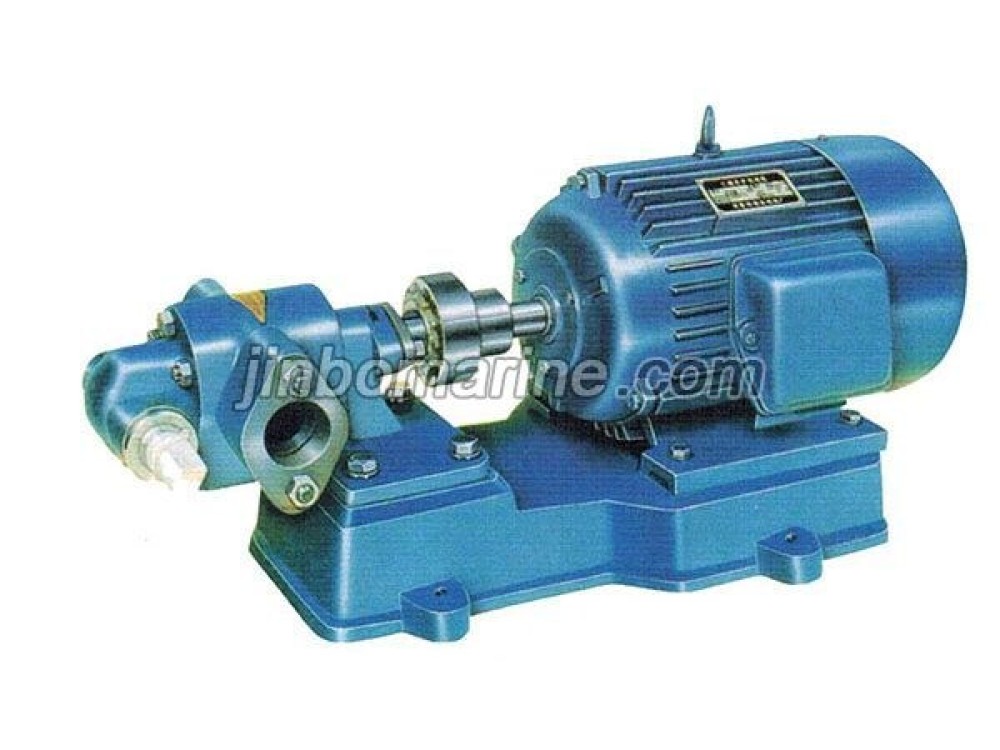

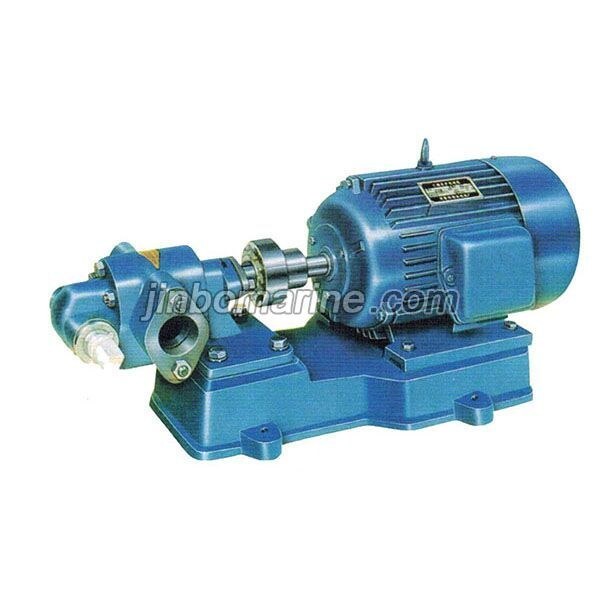

KCB-200 Marine Gear Pump

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China KCB-200 Marine Gear Pump:

KCB series of gear pumps is used to deliver non-corrosive lubricating oil at temperature below 80℃ or equivalent liquid without solid particles and fibres and with the viscosity of 5-1500CST.

Main Technical Data
Model Pump flow rate
(L/min) 		Rev
speed（r/min） 		Discharge pressuer (Mpa) Motor
power (KW)
KCB-18.3 18.3 1400 1.45 1.5
2CY-1.1/1.45 18.3 1400 1.45 1.5
KCB-33.3 33.3 1420 1.45 2.2
2CY-2/1.45 33.3 1420 1.45 2.2
KCB-55 55 1400 0.33 1.5
2CY-3.3/0.33 55 1400 0.33 1.5
2CY-3.3/0.8 55 1420 0.8 3
KCB-83.3 83.3 1400 0.33 2.2
2CY-5/0.33 83.3 1400 0.33 2.2
2CY-5/0.8 83.3 1420 0.8 4
KCB-200 200 1420 0.33 4
2CY-12/0.33 200 1440 0.33 4
