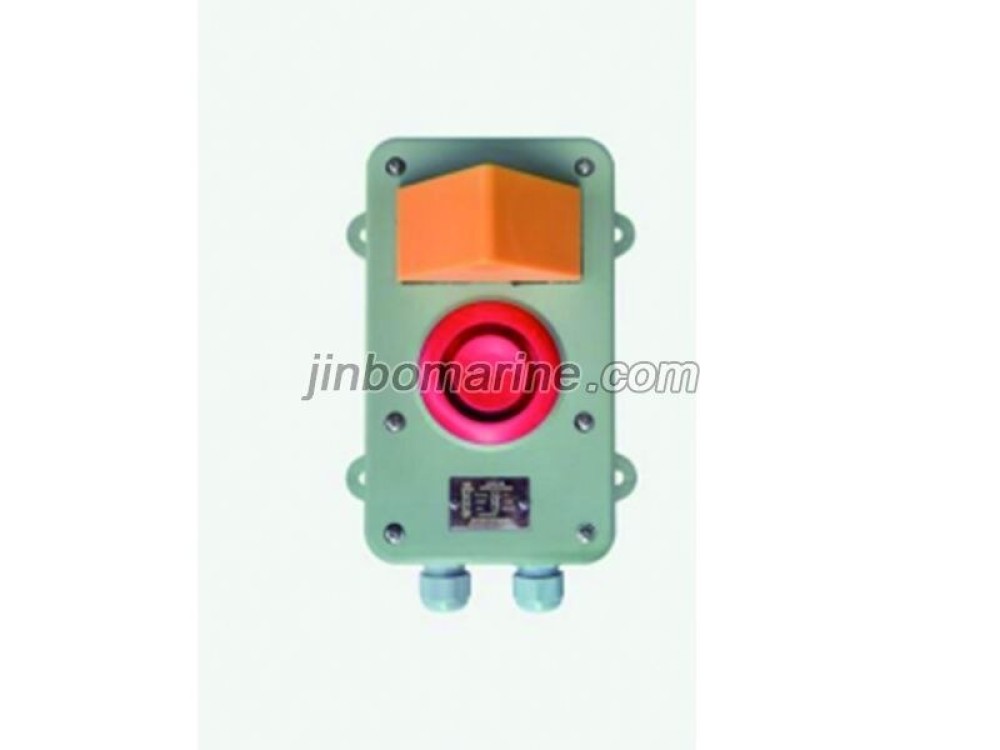

KL-1AG/2AG Alarm With Light And Buzzer

KL-1AG/2AG Alarm With Light And Buzzer

Power supply: KL-1AG: DC24V -25% +30% KL-2AG: AC220V±10%

Color: Green gray（RAL6034)

IP class:IP66

Weight:0.8/1.2Kg

Sound pressure level: 90dB～105dB

Passive contact load (resistance): 2A/30VDC 1A/125VAC

Passive contact maximum switchover voltage: 240VAC/120VDC

Stuffing box cable entrance hole size:2-Φ14mm

Power:5W
