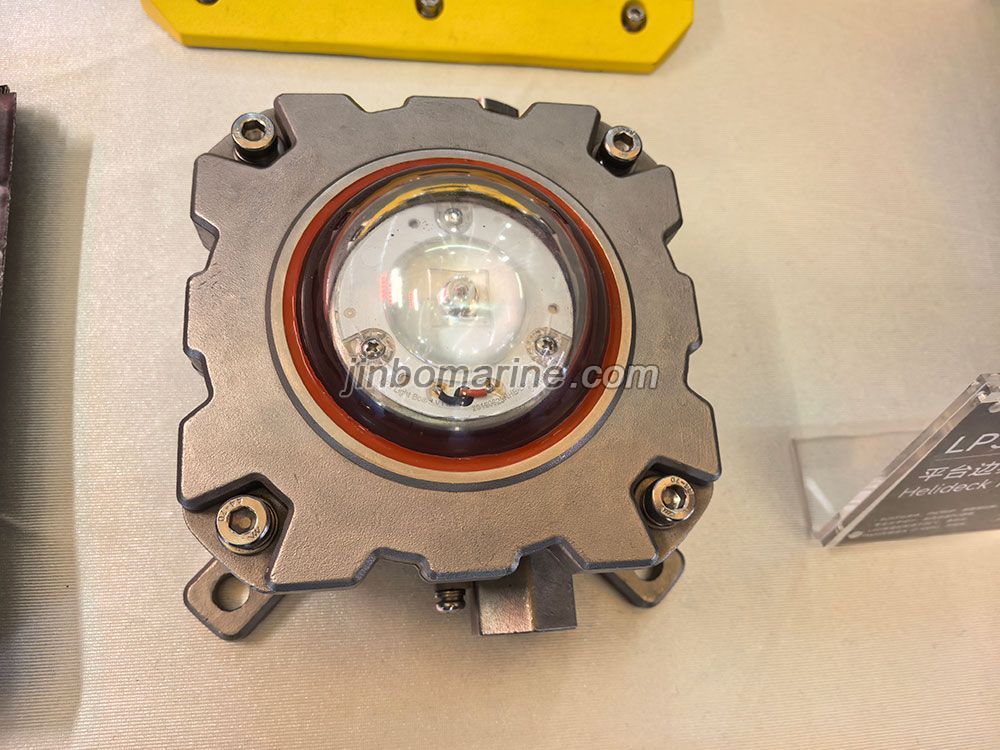

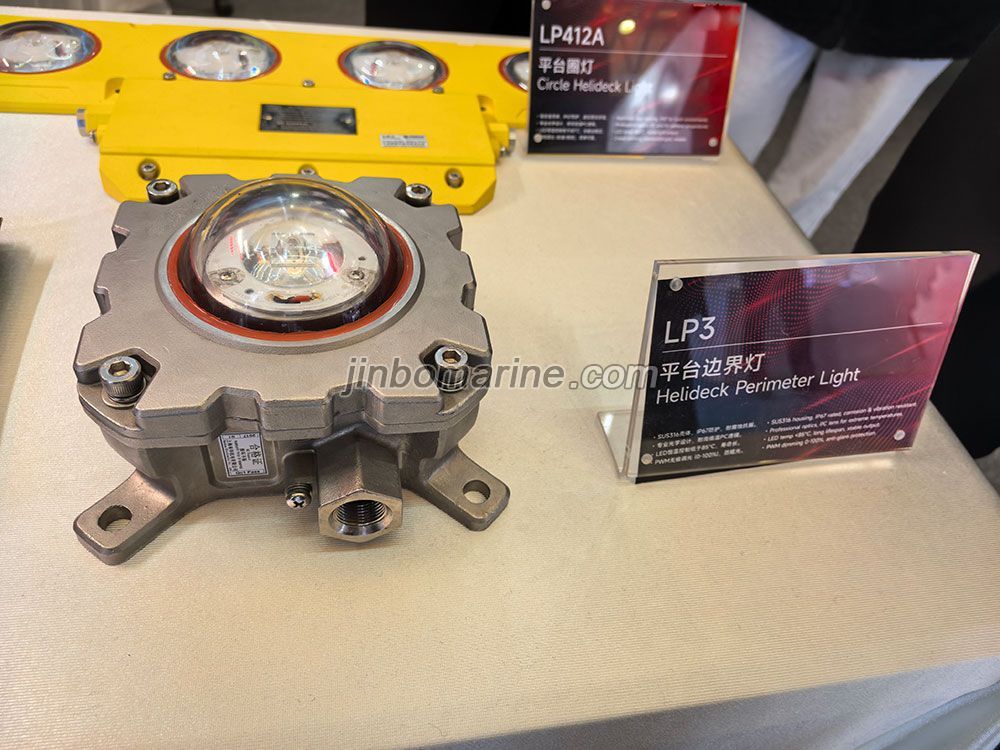

LP312A Ex-proof Perimeter Light

The LP3 series ex-proof perimeter lights are used to mark the boundaries of offshore helipads, mobile platforms and fixed platforms. They are suitable for explosive gas environments of IIA, IIB, IIC and temperature groups T1-T6 in Zone 1 and Zone 2 locations, such as offshore oil platforms, oil tankers and other hazardous areas and helicopter pads on ships.

Stainless steel 316 light housing, with corrosion and vibration resistant features, IP protection can be IP67, suitable for hazardous outdoor environment.

Professional photometric design, use the high and low temperature resistant PC lens to make sure can be long term photometric qualified.

Tempered glass light cover, operation temperature can be-50℃, with 4J shock resistance, hot and cold upheaval resistance and 5Mpastatic pressure qualified features.

Lamp is using LED light source，design with professional heat simulation software to make sure the chips’ temperature will lower than 85℃ when operation to make sure the stable light illuminations.

With Dimming function, can use the PWM or RS485(0-100)to be stepless dimming to avoid light dazzle when pilot approaching.

Operating voltage 24VDC

Power consumption ≤5W

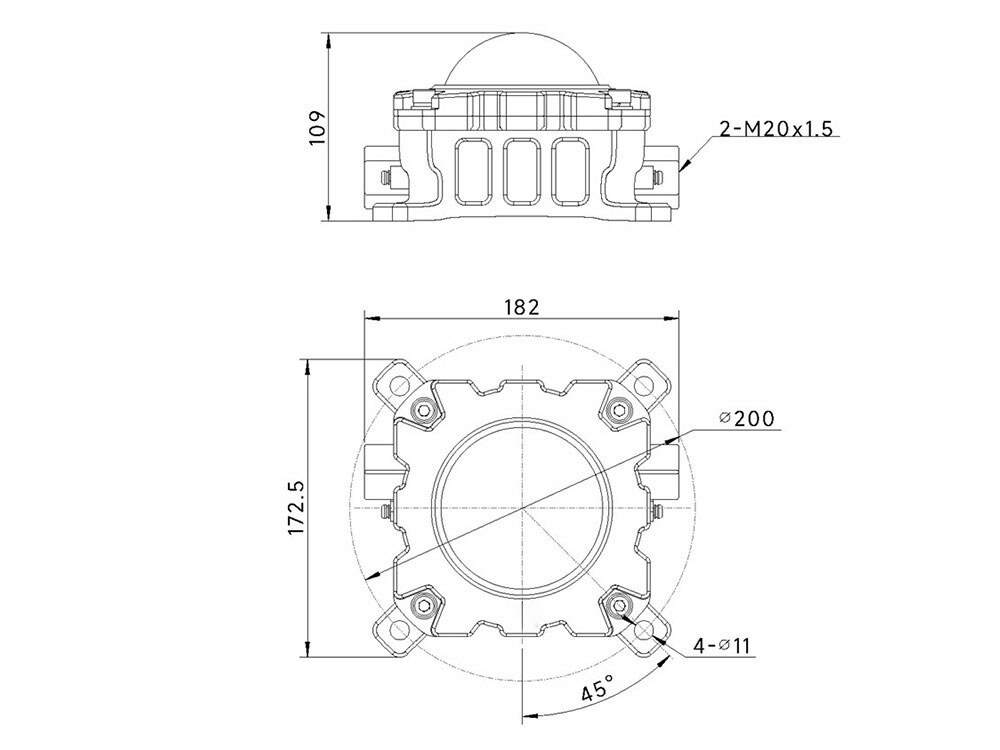

Dimming mode PWM 2-M20x1.5（It needs to be used in conjunction with the appropriate explosion-proof connectors）

Wiring EMC

GD22-2015 L-L ±0.5kV

GD22-2015 L-G ±1kV GD22-2015

contact discharge±8kV

GD22-2015 air discharge±

Housing material SUS316

Cover material Tempered glass

Weight 4.3kg

Mounting Surface mount

Operating temperature -

50℃ ~ +60℃ Storage temperature-50℃ ~ +70℃

perating humidity 10%~95%RH

IP rate IEC60529 IP67

Salt spray rate ISO9227 NSS 1440h
