LQJ-10Q Current Transformer

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

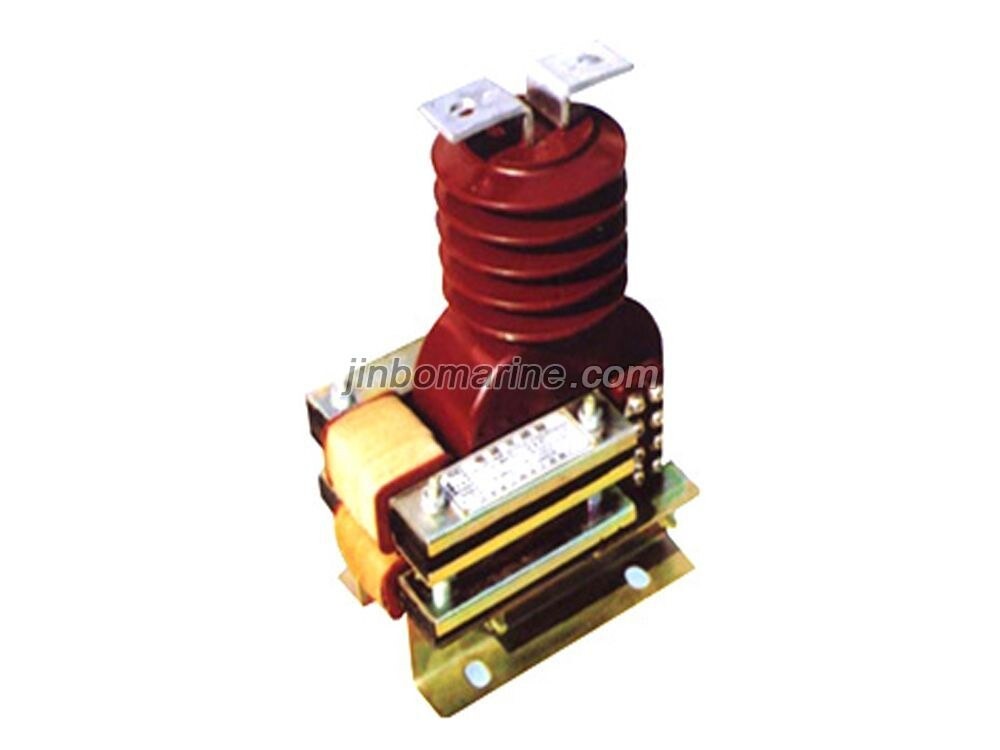

LQJ-10Q Current Transformer

1.The product complies with the standards GB1208 and IEC185
2. Rated insulation level 12/42/75KV
3. Rated frequency 50Hz, 60Hz
4. Rated secondary current 5A, 1A

LQJ-10Q Current Transformer Parameters

Model Rated Primary Current Accuracy Combination Rated Output/VA LTH KA/S Rated Dynamic Current
LQJ-10Q 5-100 0.2/10P
0.5/10P 		10/15
10/15 		90In 225Iin
150 11.25 24
200 15 32
300 22.5 48
400 30 64
