LRZ-10 Current Transformer
LRZ-10 Current Transformer 1. The product complies with the standards GB1208 and IEC185 2. Rated insulation level 12/42/75KV, 7.2/25/60KV 3. Rated frequency 50Hz, 60Hz 4. Rated seco...
Loading product images...

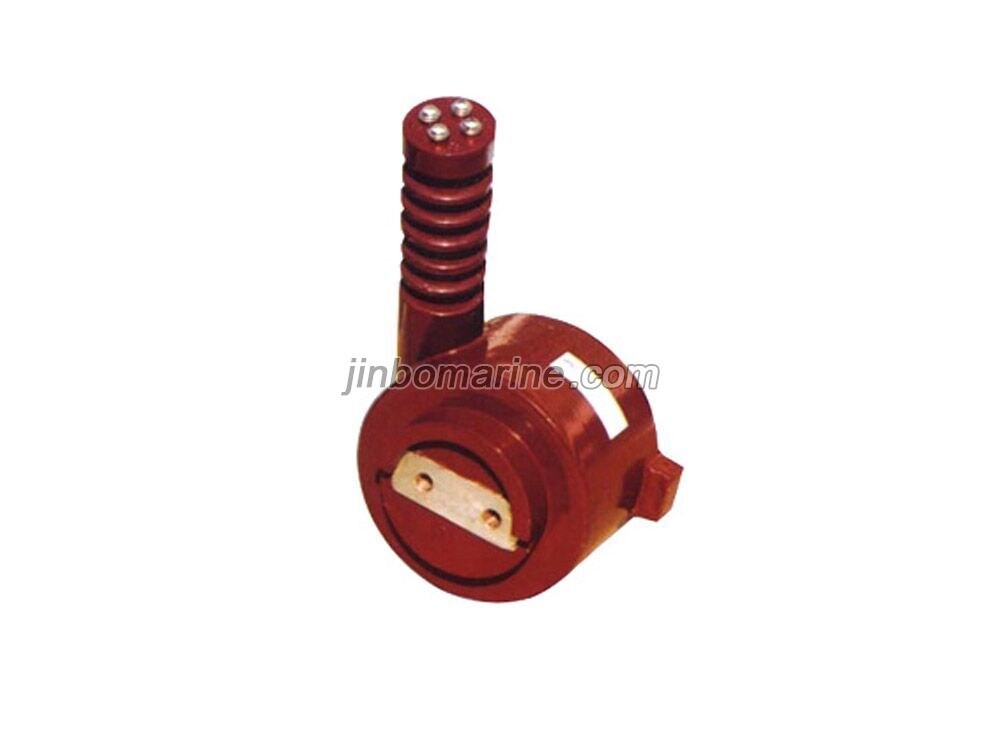

LRZ-10 Current Transformer
PDF Datasheet
We can supply according to your requirement.
LRZ-10 Current Transformer
1. The product complies with the standards GB1208 and IEC185
2. Rated insulation level 12/42/75KV, 7.2/25/60KV
3. Rated frequency 50Hz, 60Hz
4. Rated secondary current 5A, 1A
LRZ-10 Current Transformer Parameters
| Model | Rated Primary Current A | Accuracy Combination | Rated Output/VA | LTH KA/S | Rated Dynamic Current |
|---|---|---|---|---|---|
| LRZ-10 | 200 400 630 | 3/1/0.5 | 25/25/25 | 15 | 37.5 |
| 200 400 600 | 3/1/0.5 | 25/25/25 | |||
| 50 75 100 | 3/3 | 10/15/15 | |||
| 100 150 200 | 3/1 | 15/15/15 | |||
| 50，75，100，150 | 3/3 | 15/15 | |||
| 200,300,400,600 | 0.5/0.5 | 10/10 |
