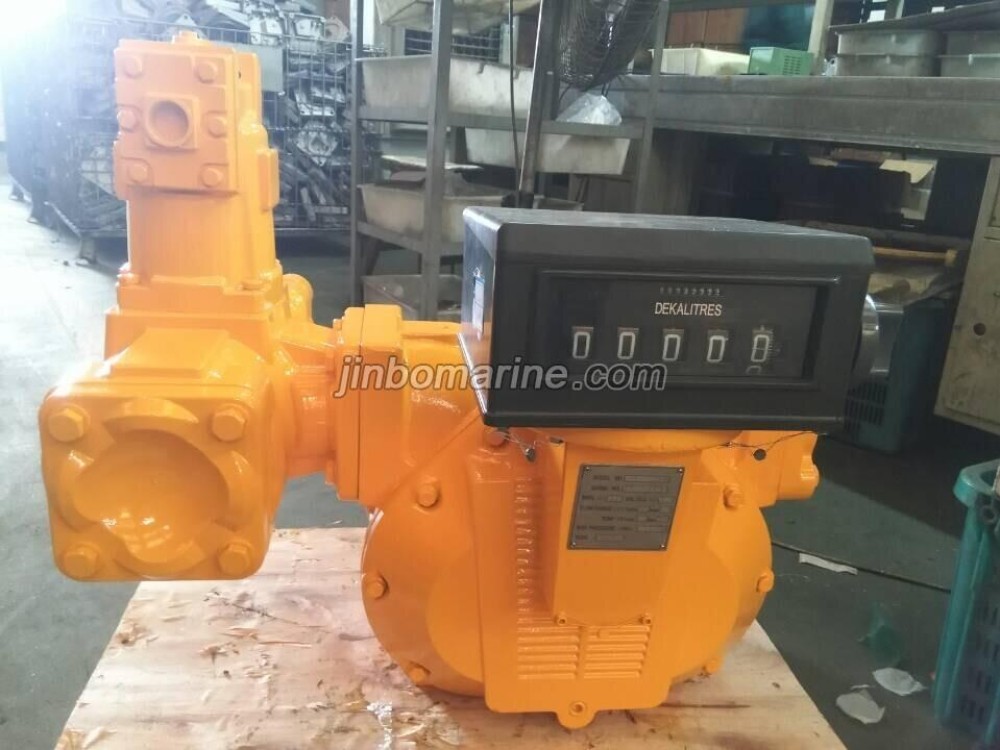

M Series Positive Displacement Flow Meter
Advantage:
- Excellent stepless adjusting mechanism allows a micro adjustment of the meter.
- High accuracy and repeatability over the widest range of flow, superior accuracy at constant flow.
- Low maintenance, no metal to metal contact in measuring chamber, long life service.
- Low pressure loss, a true gravity flow meter.
- Accuracy regardless of pressure fluctuations, temperature variation, viscosity.
Technical specification
| Model | M-40-1 | M-50-1 | M-50H-1 | M-80-1 | M-80H-1 | M-100-1 | M-100H-1 | M-150-1 | M-150H-1 |
| Size | 40mm | 50mm | 80 | 100 | 150 | ||||
| Flow range: L/min | 25-250 | 38-380 | 55-550 | 75-750 | 115-1150 | 130-1300 | 170-1700 | 225-2250 | 300-3000 |
| Volume per revolution | 0.309L | 0.681L | 1.839L | 5.102L | 9.507L | ||||
| Max.Pressure | 10Bar | ||||||||
| Accuracy | 0.20% | ||||||||
| Repeatability | ≤0.05% | ||||||||
