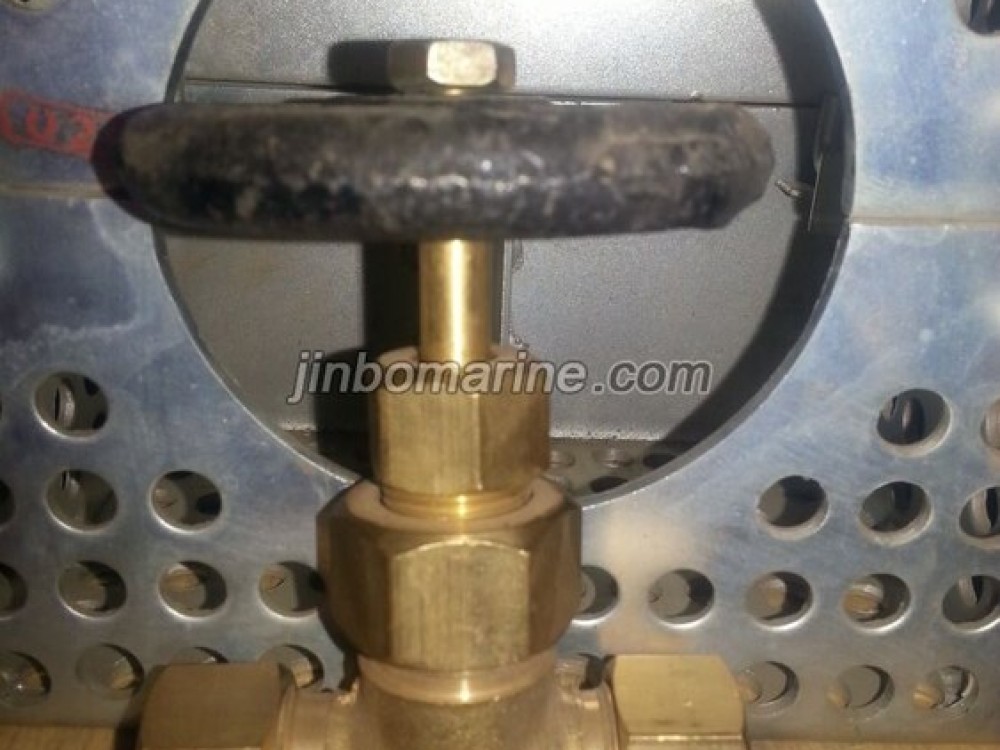

Marine Bronze Cock JIS F7388 U Type 20K
- Category:JIS Marine Cock
- Material:Bronze
- Standards:JIS F7388
- Certificate:CCS,BV,GL,NK,RINA,ABS,DNV,LR
- Packing Details:Paper Carton or Plywood Case
- IMPA Code:750556~750557
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine Bronze Cock JIS F7388 U Type 20K:
Marine Bronze Cock JIS F7388U is marine bronze globe valve 20K.
Design Standard: JIS F7388-1996
Test Standard: JIS 7400-1996
Nominal Pressure: 20KG
Hydraulic Test Pressure: Body- 42KG, Plug-30.8KG

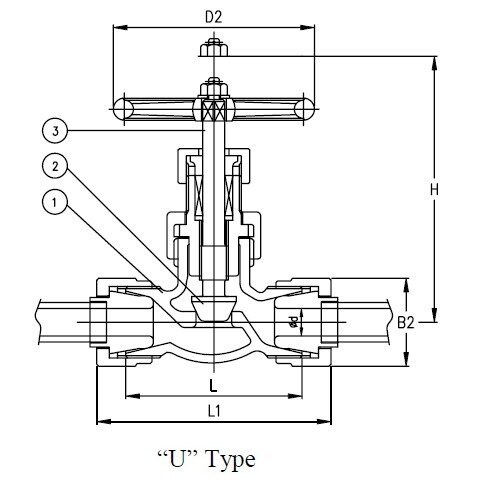

Main Material:
1-Body: Bronze (BC6)
2-Plug: Bronze (BC6)
3-Stem: Brass (C3771BD)
Main Size List(mm):
| Type | IMPA | Size | Copper Pipe Outside Diameter | Steel Pipe Outside Diameter | L | L1 | H | B2 | D2 | Weight(kg) |
| U type | 750556 | 6A | 8 | 10.5 | 64 | 82 | 100 | 30 | 63 | 0.85 |
| 750556 | 6A | 10 | 10.5 | 64 | 82 | 100 | 30 | 63 | 0.85 | |
| 750557 | 10A | 15 | 17.3 | 72 | 96 | 115 | 41 | 80 | 1.37 |
