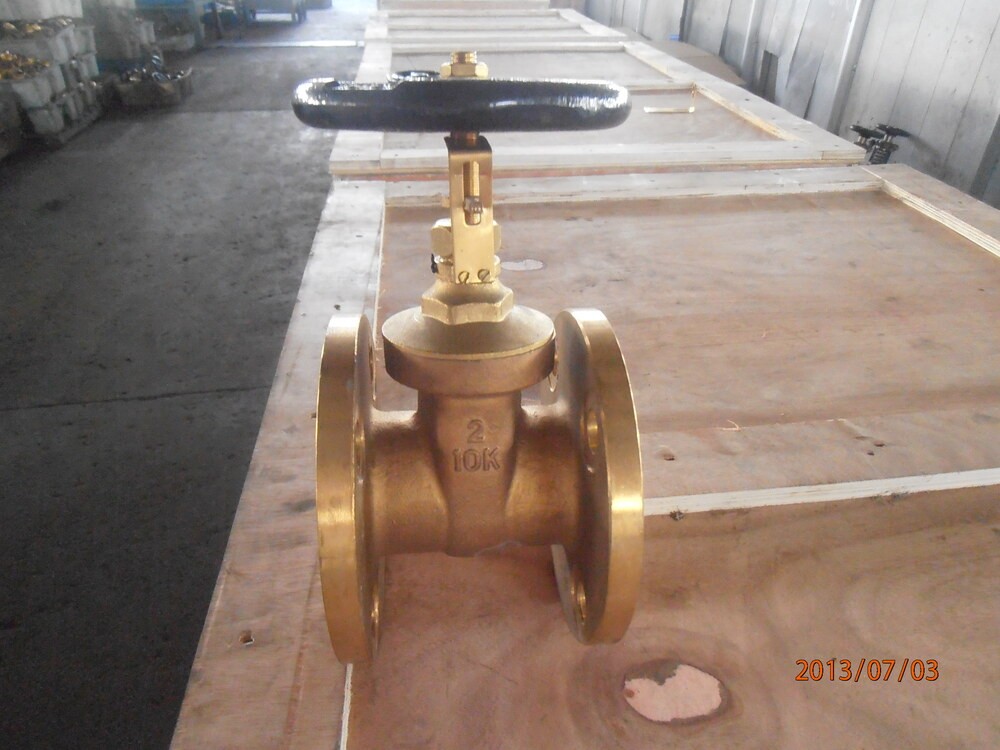

Marine Bronze Gate Valve Class 150 10K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Bronze Gate Valve Class 150 10K:

Test Standard: JIS F7400-1996

Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

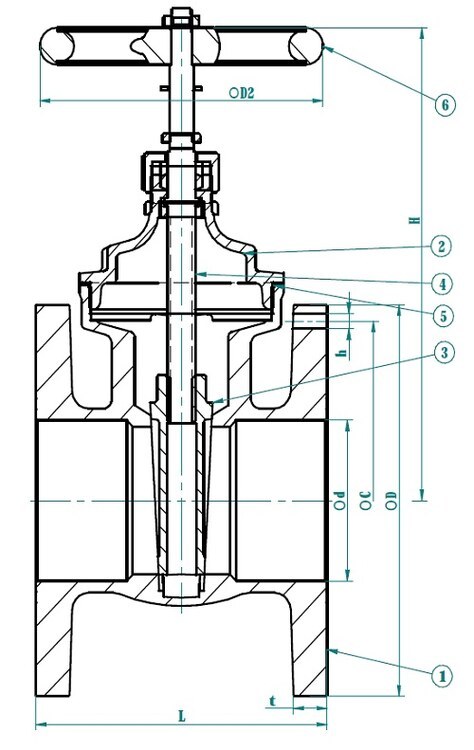

Main Material:

1-Body: Bronze (BC6)

2-Bonnet: Bronze (BC6)

3-Disc:Bronze(BC6)

4-Stem: Brass (C3771BD)

5-Gasket: NBR or non-asbestos

6-Handwheel: Cast Iron (FC200)

Main Size List(mm):

DN d L D C No of Bolt h t H D2
15 20 80 95 70 4 12 9 109 80
20 25 80 100 75 4 15 9 110 80
25 25 80 125 90 4 19 9 110 80
32 39 100 135 100 4 19 11 142 100
40 39 100 140 105 4 19 11 142 100
50 50 115 155 120 4 19 12 167 125
65 62 127 175 140 4 19 13 195 125
80 74 142 185 155 8 19 15 218 140
100 100 165 210 175 8 19 15 271 180
