Marine Bronze Male Thread Angle Stop Valve GB595-83 Type B

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

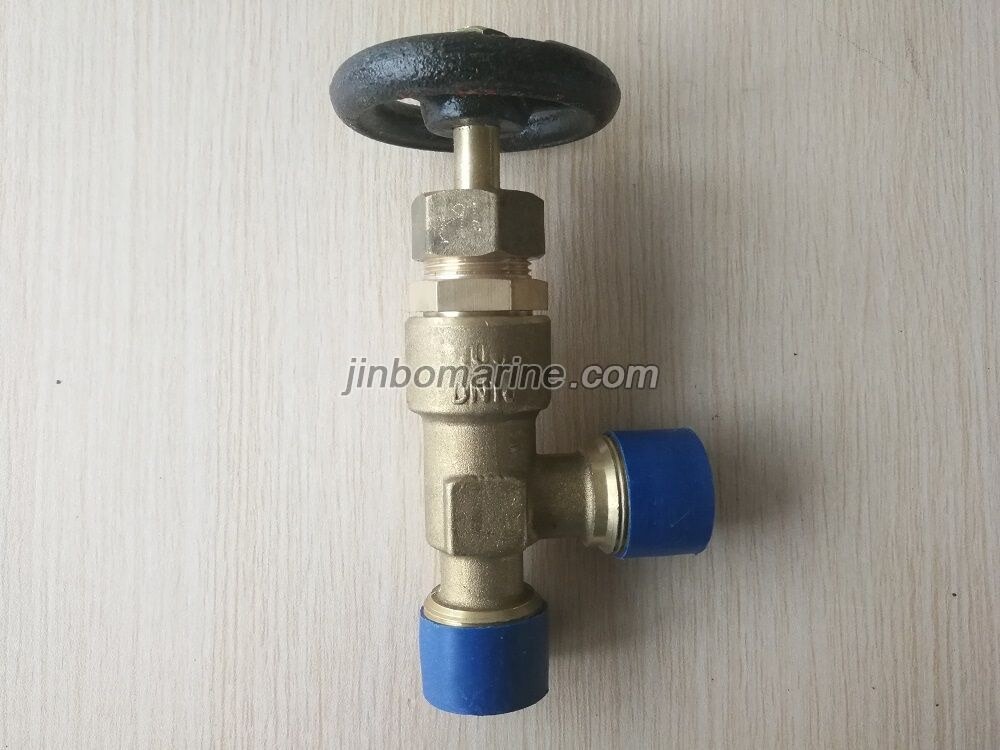

China Marine Bronze Male Thread Angle Stop Valve GB595-83 Type B:


Marine Bronze Male Thread Angle Stop Valve is also called as marine bronze male thread angle valve. Type B is angle type, Type A is straight type.

Design Standard: GB595-83

Test Standard: GB600

Nominal Pressure (Mpa) Nominal diameter(mm) Applicable medium
4.0 15--32 fresh water, lubrication oil, fuel oil, steam not over 250℃
10.0 6--32

Main Material:

Body-Bronze

Bonnet-Bronze

Disc-Bronze

Stem-Bronze

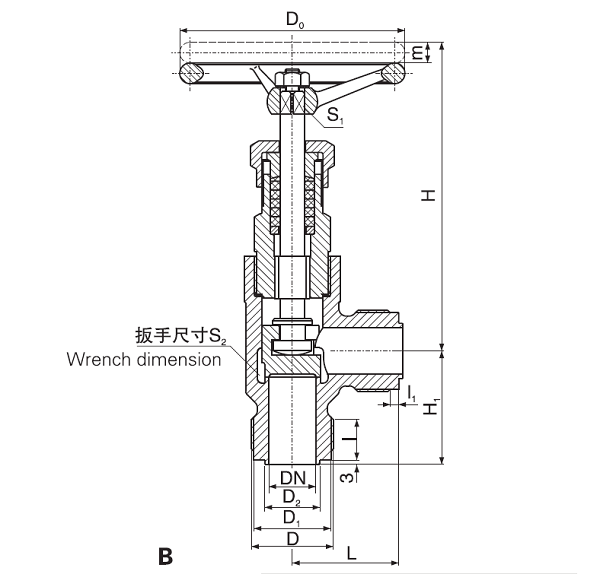

Main Size List(mm):

DN6--DN10

PN (MPa) DN (mm) Structure Dimension thread joint wrench size hand wheel lift range m Weight(kg)
L H≈ H1
Type A Type B Type A Type B D D1 D2 I I1 S2 D0 S1 Type A Type B
10.0 6 74 37 90 12 32 M22×1.5 19.8 10 14 3 24 65 7 5 0.48 0.45
10 94 47 109 16 38 M27×1.5 24.8 14 16 3 30 80 8 7 0.87 0.85

DN15--DN32

PN (MPa) DN (mm) Structure Dimension thread joint wrench size S2 hand wheel lift range m Weight(kg)
L H≈ H1
Type A Type B Type A Type B D D1 D2 I I1 Type A Type B D0 S1 Type A Type B
4.0 15 110 55 143 25 52 M36×2 33 22 22 5 32 41 80 8 10 1.51 1.45
20 116 58 153 32 55 M39×2 36 25 23 5 36 46 100 9 12 1.81 1.77
25 130 65 167 38 64 M48×2 45 32 26 6 46 50 120 11 14 2.54 2.60
32 140 70 197 46 72 M56×2 53 38 28 6 46 60 140 12 16 4.31 4.08
10.0 15 120 60 164 27 52 M36×2 33 22 22 5 32 41 120 11 10 2.10 1.96
20 134 67 194 32 55 M39×2 36 25 23 5 36 46 140 12 12 3.06 2.88
25 134 67 204 38 64 M48×2 45 32 26 6 46 55 140 12 14 3.61 3.49
32 146 73 220 46 75 M56×2 53 38 28 6 55 65 160 14 16 4.99 4.25
