Marine Bronze Screw Down Check Globe Valve JIS F7351 5K

Design Standard: JIS F7351-1996

Test Standard: JIS F7400-1996

Test Pressure: Body-1.05Mpa, Seat-0.77Mpa

Flange Size as per JIS F2220-5K

*DN15-DN40 with screwed bonnet, DN50-DN65 with bolted bonnet

*Marine Bronze Screw Down Check Globe Valve also can be called as marine bronze SDNR Globe valve or SDNR valve, globe check valve, stop check valve.

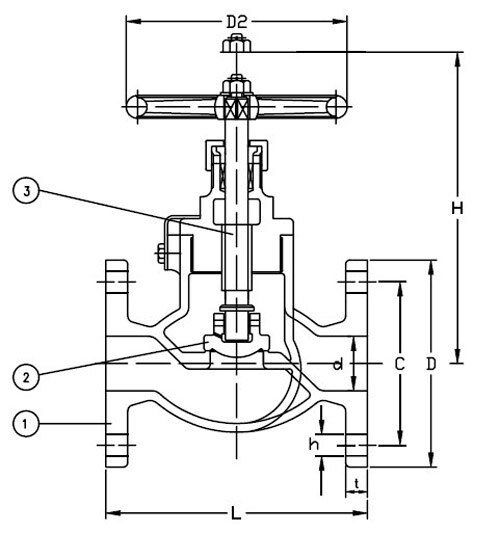

1-Body: Bronze (BC6)

2-Disc:Bronze (BC6)

3-Stem: Brass (C3771BD)

4-Bonnet:Bronze (BC6)

5-Handwheel: Cast Iron (FC200)
