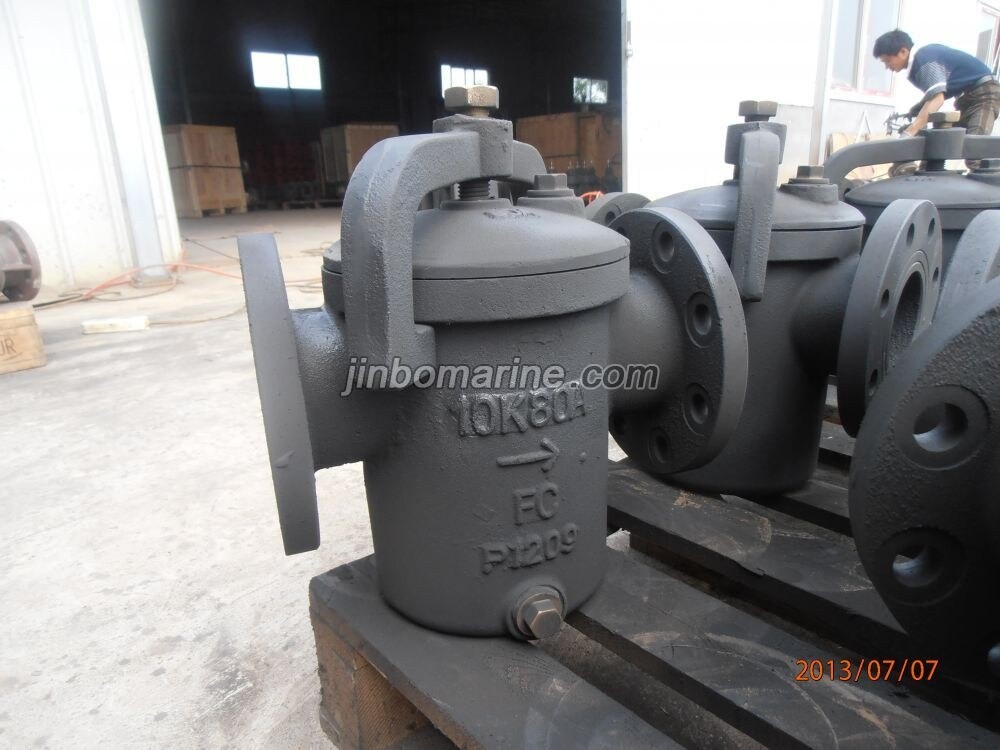

Marine Can Water Filter JIS 7121 10K (DN25-DN100)

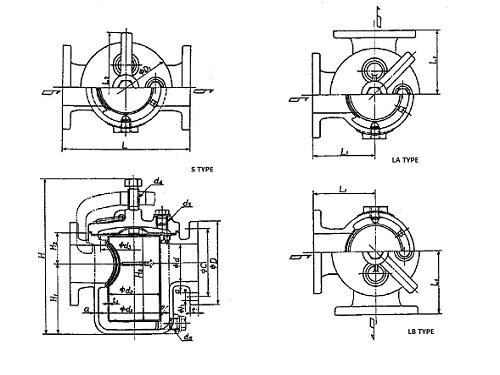

Marine Can Water Filter JIS F7121 also can be called as marine sea water filter or marine basket water filer.There are S type, LA type, LB type.

Design Standard: JIS F7121-1996

Test Standard: JIS 7200-1996

Hydraulic Test Pressure: Body- 0.3Mpa

Flange size as per JIS B2220 - 10K

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Strainer: Stainless Steel (SUS304)

Gasket: non-asbestos

Yoke: FCD450

Air Vent Plug: Brass

Drain Plug: Brass
