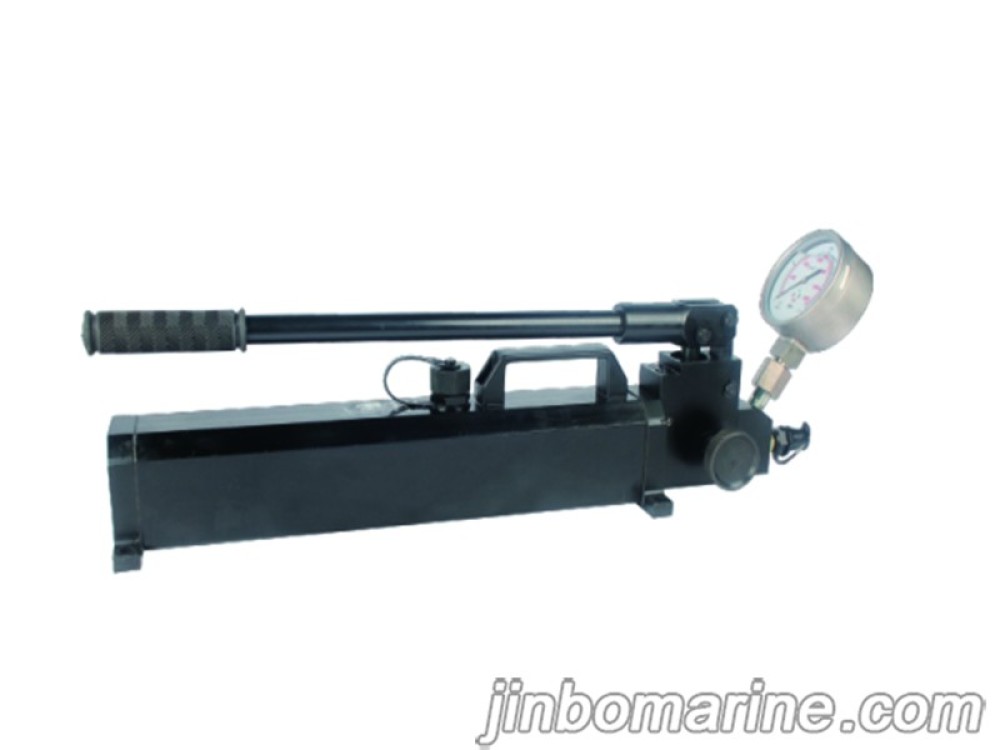

HP Series-Single Acting Aluminum High Pressure Manual Pump
HP Series-Single Acting Aluminum High Pressure Manual Pump The reasonable structure and appearance design are beautiful and easy to carry. Double speed design, pump...
HP Series-Single Acting Aluminum High Pressure Manual Pump
PDF Datasheet
We can supply according to your requirement.
China HP Series-Single Acting Aluminum High Pressure Manual Pump:
HP Series-Single Acting Aluminum High Pressure Manual Pump
The reasonable structure and appearance design are beautiful and easy to carry.
Double speed design, pump efficiency increased by 80%.
Built in safety valve for overload protection.
The tank has large capacity and can be applied to various types of cylinders or tools.
Aluminum-titanium alloy material, light weight, high strength, corrosion resistance, impact resistance, can be suitable for various working environments.
The maximum working pressure is 280MPa.
Built in precision high and low pressure switch valve, stable and reliable performance.
| Model | Output Port | （MPa） Working Pressure | （L/min) Flow | Tank Volume (ML) | Outer Size (LXWXH) (mm) | Reference Weight (KG) | ||||
| High Pressure | Low Pressure | High Pressure | low Pressure | |||||||
| HP100 | G1/4 | 100 | 2 | 1.1 | 6 | 8 | 556x124x160 | 8.8 | ||
| HP160 | G1/4 | 100 | 2 | 1.1 | 6 | 8 | 556x124x160 | 8.8 | ||
| HP250 | G1/4 | 250 | 2 | 1.1 | 6 | 8 | 556x124x160 | 8.8 | ||
| HP280 | G1/4 | 280 | 2 | 1.1 | 6 | 8 | 556x124x160 | 8.8 | ||
