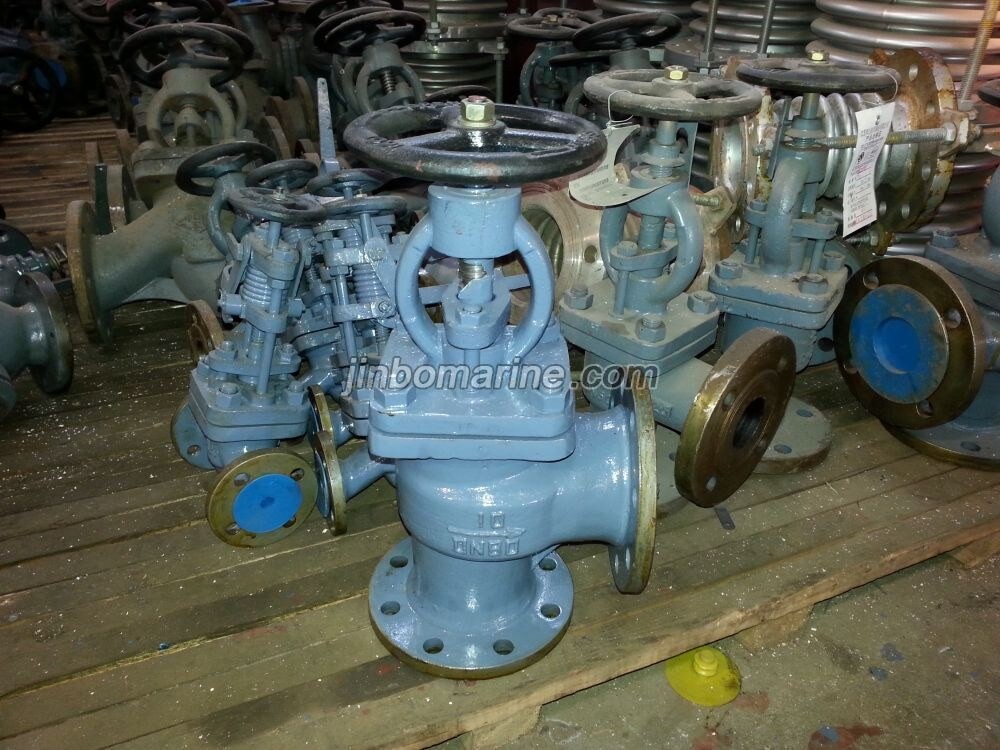

Marine Cast Steel Angle Globe Valve GB/T584-2008 Type B/BS

  • Category:GB Marine Globe Valve
  • Material:Cast Steel
  • Standards:GB/T584-2008, CBM1048-81, CBM1051-81, CBM1057-81
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Cast Steel Angle Globe Valve GB/T584-2008 Type B/BS:

Design Standard:GB/T584-2008, CBM1048-81, CBM1051-81, CBM1057-81

Test Standard: GB600

Flange size as per GB569,GB2501

*Marine Angle Globe Valve also can be called Marine Angle Stop Valve.

Nominal Pressure(Mpa) Nominal Diameter(mm) Applicalbel Medium
1.0 65~300 fresh water, lubrication oil, fuel oil, steam not over 300℃
1.6 65~250
2.5 20~150
4.0 65~100 fresh water, lubrication oil, fuel oil, steam not over 400℃
6.4 20~50


Main Material:

Body-Cast Steel

Bonnet-Cast Steel

Disc-Carbon Steel

Sealing Ring-Welded Stainless Steel

Stem-Stainless Steel

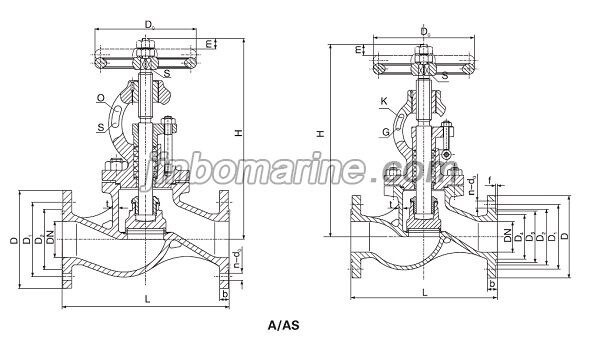

Main Size List(mm):


Type B (Flange Size as per GB569):

PN (MPa) DN (mm) Structure Dimension Thickness δ Flange Bolt Hand wheel Lift Range
m
Weight(kg)
L H≈ H1
A B A B B D D1 D2 d0 b n Th. Do S A B
1.0 65 290 115 310 277 115 6 155 123 104 15 14 6 M14 140 12 18 14.9 12.9
80 310 125 345 304 125 7 170 138 118 15 14 8 M14 160 14 24 19.0 17.9
100 350 150 374 325 135 8 190 158 138 15 14 8 M14 180 14 35 28.6 24.0
125 400 175 426 366 155 8 215 183 164 15 14 10 M14 200 17 44 38.2 33.7
150 500 180 487 415 160 9 240 208 190 15 14 12 M14 200 17 57 51.3 41.9
1.6 125 400 175 465 405 155 8 225 187 168 17 15 10 M16 250 22 44 45.4 38.9
150 500 180 524 452 160 9 255 217 196 17 15 12 M16 280 24 57 58.9 51.7
2.5 20 150 75 217 203 75 6 95 68 48 13 11 4 M12 80 8 7 4.5 4.4
25 160 80 217 203 80 6 105 73 56 13 12 4 M12 80 8 7 5.1 5.0
32 180 85 236 216 85 6 115 83 64 15 13 6 M14 100 9 9 6.9 6.1
40 200 90 260 236 90 7 125 93 74 15 13 6 M14 120 11 11 9.2 7.2
50 230 95 288 258 95 7 135 103 84 15 13 6 M14 140 12 14 12.9 12.7
65 290 115 335 301 115 7 170 132 110 17 15 8 M16 160 14 18 18.8 18.9
80 310 125 362 321 125 7 185 147 126 17 16 8 M16 200 17 24 24.8 22.7
100 350 150 417 368 135 8 205 167 146 17 16 10 M16 250 22 35 34.9 31.3
125 400 175 481 432 155 9 240 196 172 21 19 10 M20 280 24 44 52.2 47.9
150 500 200 537 484 175 9 270 226 200 21 20 12 M20 320 27 57 68.5 60.3
PN (MPa) DN (mm) Structure Dimension Thickness δ Flange Bolt Hand wheel Lift Range Weight(kg)
L H≈ H1
A B A B B D D1 D2 D3 D4 f d0 b n Th. D0 S m A B
4.0 65 290 145 409 374 145 8 175 137 118 110 94 3 17 18 8 M16 250 22 17 35.2 32.9
80 310 155 436 394 155 9 190 152 130 121 105 3 17 18 8 M16 250 22 20 39.1 36.7
100 350 175 466 416 175 9 225 181 157 150 128 4 21 21 10 M20 280 24 25 53.3 44.7
6.4 20 230 115 261 243 115 7 105 73 58 51 35 3 13 13 6 M12 100 9 7 7.7 6.5
25 230 115 272 253 115 7 1 15 83 66 58 42 3 15 15 6 M14 100 9 7 8.7 7.6
32 260 130 304 281 130 7 125 93 74 66 50 3 15 17 6 M14 120 11 9 10.3 9.3
40 260 130 334 310 130 7 145 107 84 76 60 3 17 19 6 M16 160 14 11 17.7 16.4
50 300 150 354 323 150 8 155 117 96 88 72 3 17 20 6 M16 180 14 13 22.3 20.5
