Marine Cast Steel Angle Vavel JIS F7350

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

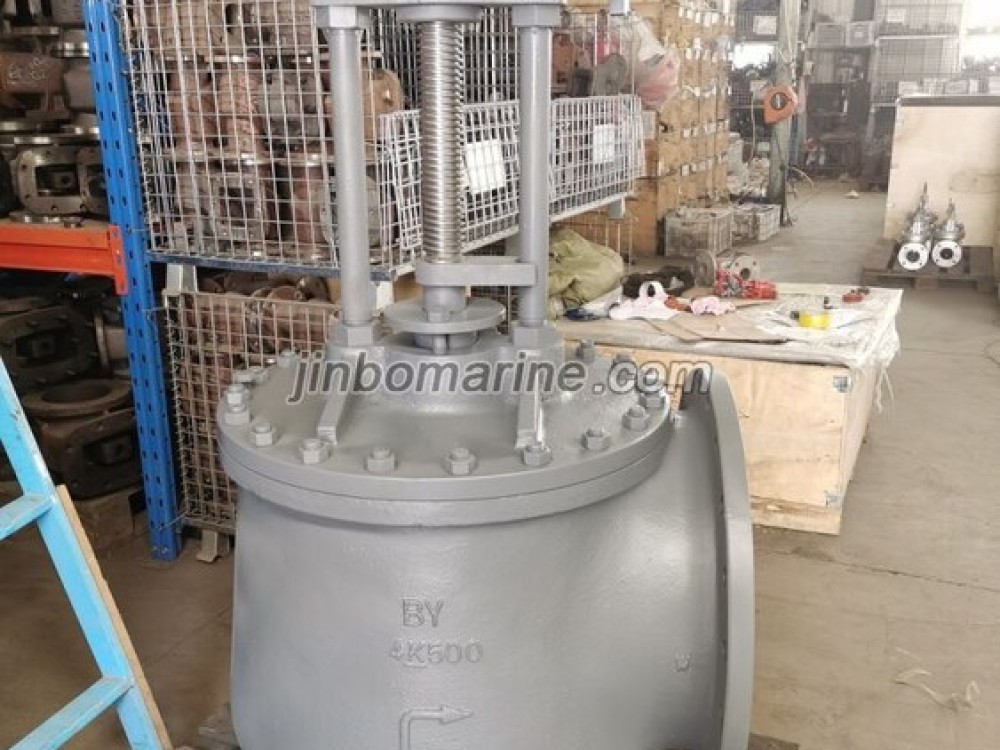

China Marine Cast Steel Angle Vavel JIS F7350:

Marine Cast Steel Angle Vavel JIS F7350 is used as the suction sea valve.

Design Standard: JIS F7350-1996, CB/T4021-2005

Max Working Pressure for DN350 & above: 0.2Mpa

Test Pressure for body: 0.5Mpa

Test Pressure for the sealing: 0.25Mpa

Main Parts & Material:

Body---Cast Steel

Bonnet---Cast Steel

Disc---Stainless Steel SCS2

Stem---Stainless Steel SUS403

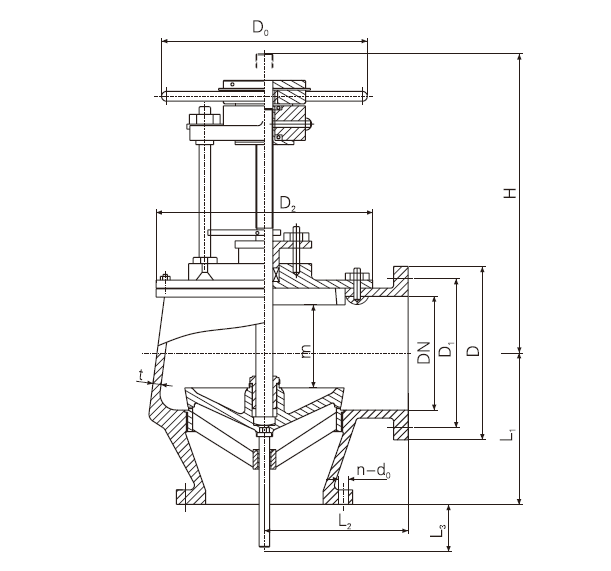

Main Size (mm):

Nominal
Diameter 		Structure Dimension Thickness
t 		Flange Size Handwheel Lift Range m
H≈ L1 L2 L3 D2 D D1 b n d0 Th0
350 1010 360 320 166 510 22 490 445 26 16 25 M22 500 248
400 1130 400 350 195 565 23 560 510 28 16 27 M24 600 285
450 1250 450 380 218 620 24 620 565 30 20 27 M24 710 320
500 1380 500 430 242 695 25 675 620 30 20 27 M24 800 355
550 1505 550 460 269 755 26 745 680 32 20 33 M30 900 392
600 1630 610 500 288 820 27 795 730 32 24 33 M30 900 428
650 1765 660 540 312 890 28 845 780 34 24 33 M30 1000 465
700 1890 710 570 334 950 29 905 840 34 24 33 M30 1000 500
750 2005 760 610 357 1015 30 970 900 36 24 33 M30 1250 535
800 2115 810 650 380 1085 31 1020 950 36 28 33 M30 1250 570
