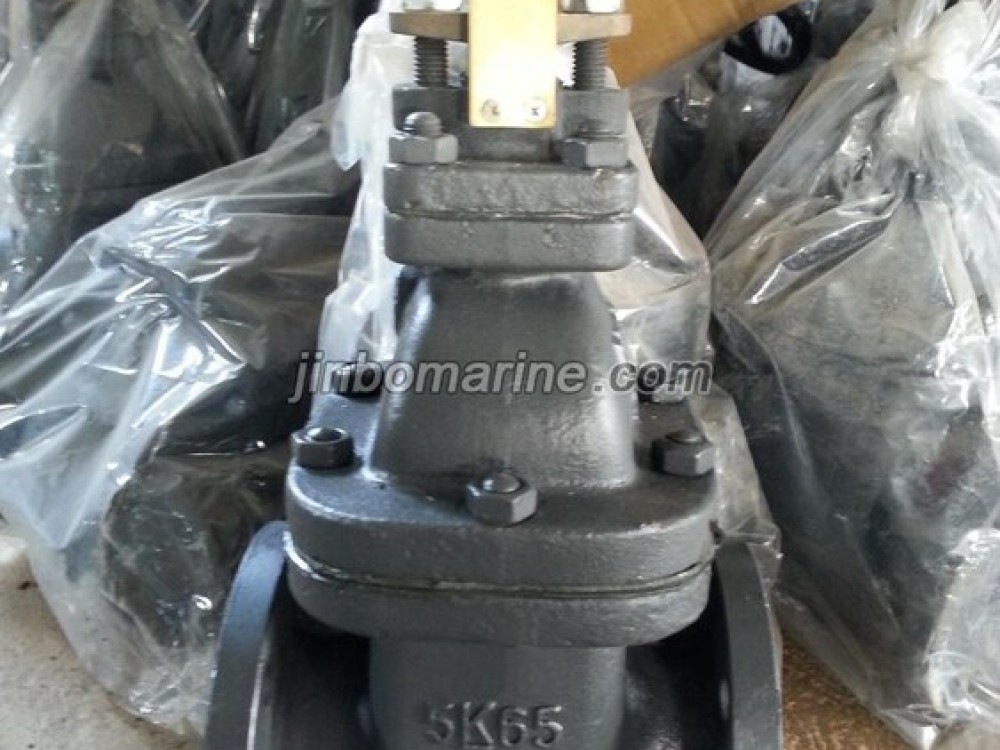

Marine Cast Steel Gate Valve JIS F7363C 5K

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Cast Steel Gate Valve JIS F7363C 5K:

Design Standard: JIS F7363C-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body- 1.05Mpa, Seat-0.77Mpa

Flange size as per JIS B2220 - 5K

Main Material:

1-Body: Cast Steel (SC450)

2-Disc: Bronze (BC6) or SCS2 (2Cr13)

3-Seat: Bronze (BC6) or SCS2 (2Cr13)

4-tem: Brass (C3771BD) or SUS403

5-Gasket: non-asbestos

6-Packing Gland: Bronze (BC6) or SCS2(2Cr13)

7-Handwheel: FC200 (Cast Iron)

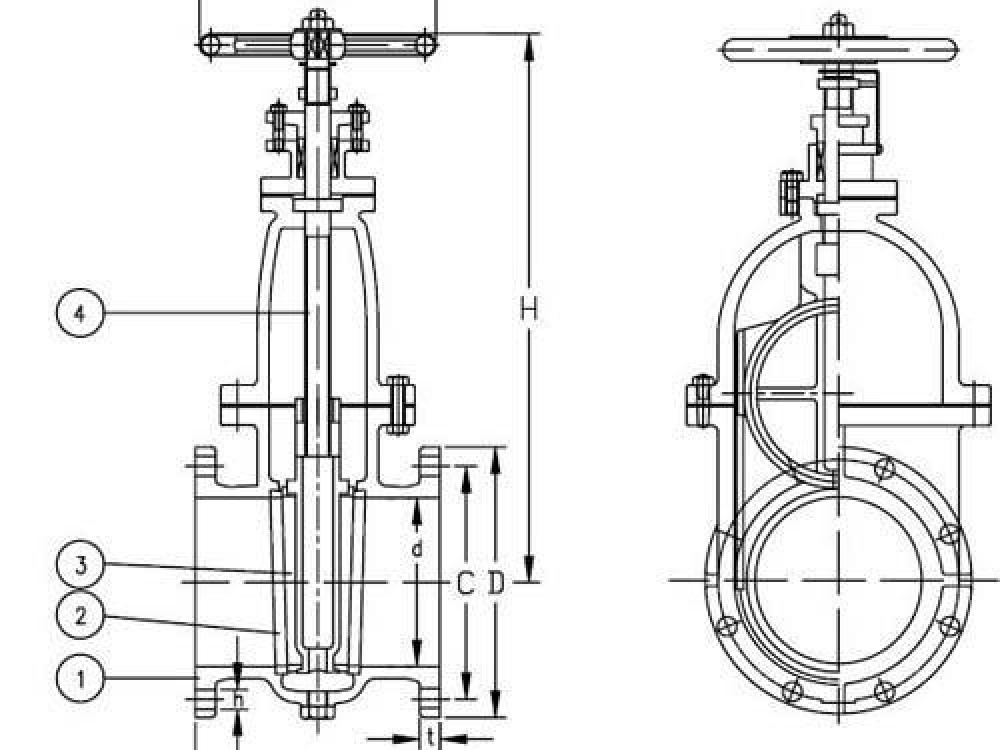

Main Size List(mm):

Size L Flange diam. (D) Pitch (C) No of Bolt Hole h t H D2
50 180 130 105 4 15 16 285 125
65 190 155 130 4 15 18 330 140
80 200 180 145 4 19 18 380 160
100 230 200 165 8 19 20 430 180
125 250 235 200 8 19 20 495 200
150 270 265 230 8 19 22 560 224
200 290 320 280 8 23 24 680 280
250 330 385 345 12 23 26 800 355
300 370 430 390 12 23 28 920 400
350 410 480 435 12 25 30 1000 450
400 470 540 495 16 25 30 1100 500
450 500 605 555 16 25 30 1420 560
