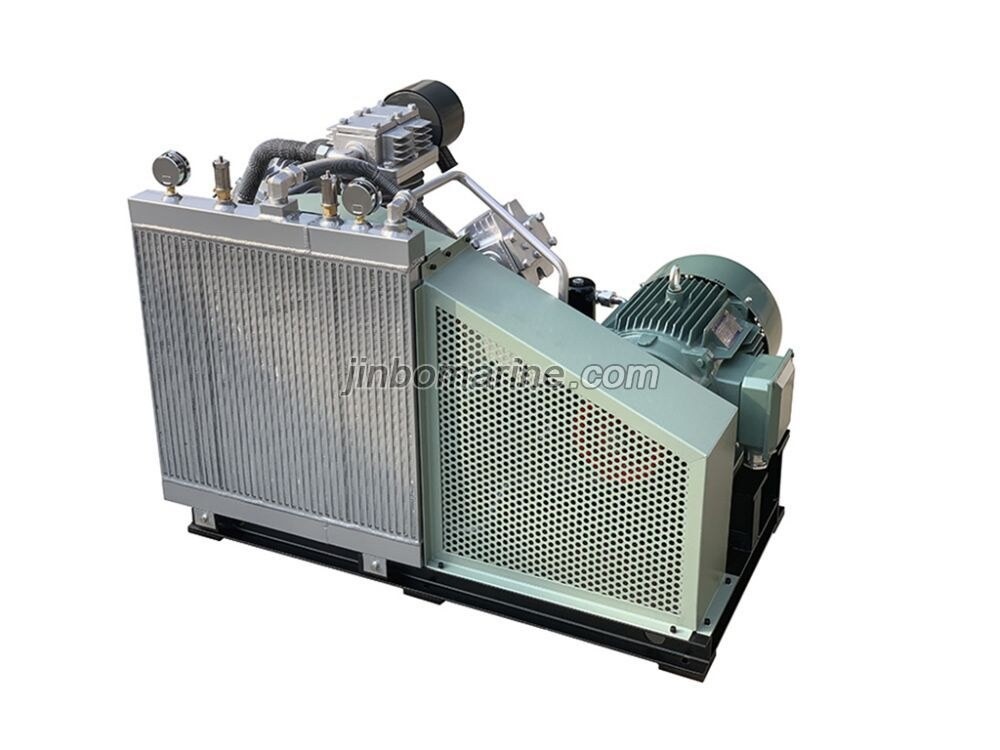

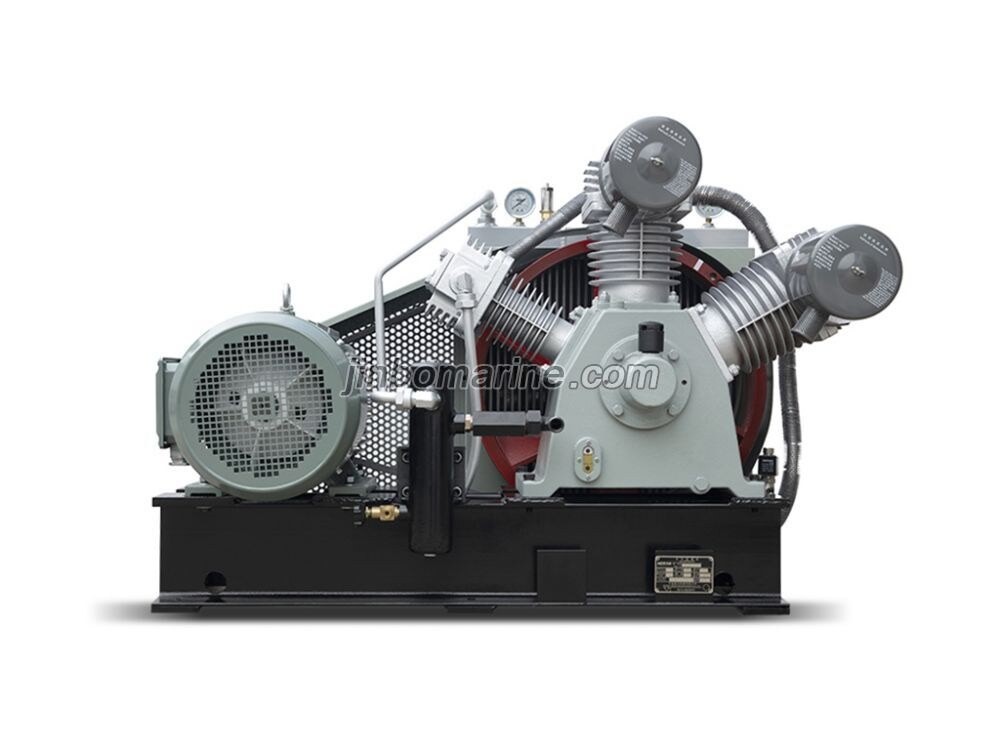

Marine CW-60/10F Marine Low Pressure Air Cooled Air Compressor

Request a Quote Not what you need, please send your RFQs via Email.

Details

Description:

1. It adopts two-stage compression, small volume and low noise;

2. Automatic control, high and low pressure automatic start and stop, automatic unloading and sewage discharge;

3. Obtain the factory type approval of classification society and provide the certification certificate of classification society;

4. Customized according to customer requirements;

5. The quality is stable and reliable, and the maintenance of spare parts is simple and cheap. It has been exported to many countries, suitable for fishing boats, seagoing ships and other deck air compressor equipmentï¼›

6.The larger displacement is suitable for the needs of different ships, the voltage frequency can be customized, and the batch price is more affordable.

Technical data:

No. Model Volume flow m3/min Exhaust pressure MPa Power kW Frequency HZ Rated speed r/min Weight kg L x W x H mm
1 CW-60/10F 60 1 11 50/60 850 420 1320x750x860
2 CW-50/30F 50 3 15 50/60 720 450 1320x750x860
3 CW-60/30F 60 3 15 50/60 850 450 1320x750x860
