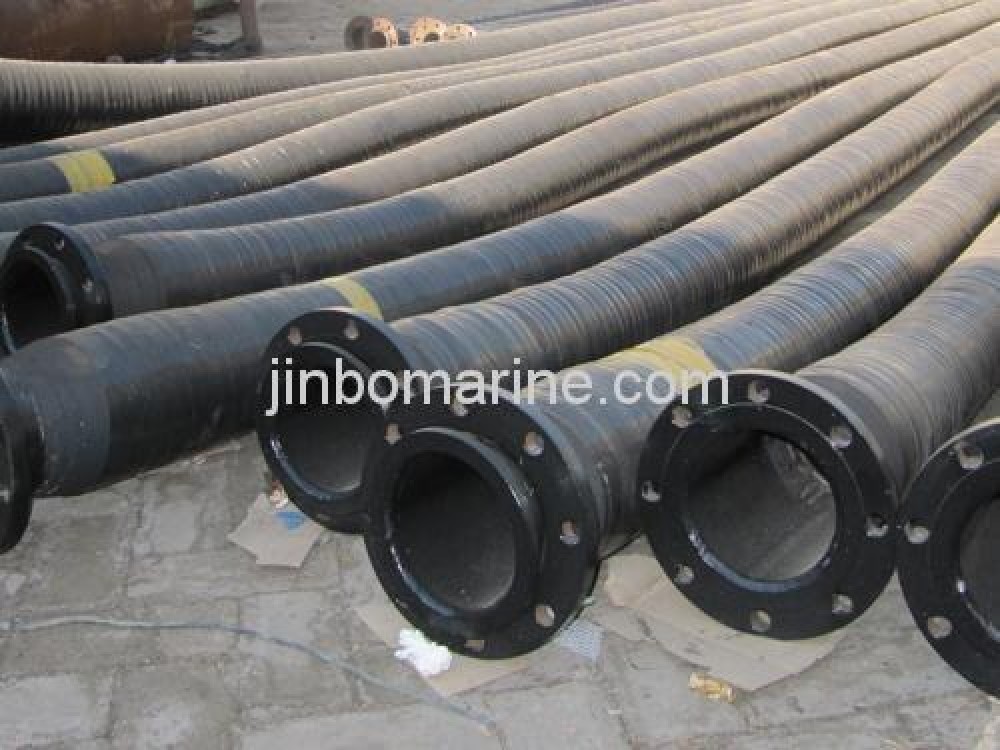

Marine Dock Oil Hose With Steel Flange

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Marine Dock Oil Hose With Steel Flange:

T: Black Butanenitrile/Neoprene Rubber

C: Black Butanenitrile/Neoprene Rubber

R: Multi-layer fiber layer with spiral wire strengthening

Temperature: -30℃to +80℃

Safety Factor: 1:3

Specification

ID OD Length Bend radium WP Weight
in mm in mm ft m in mm Psi Kg/cm² Kg/m
2 50.8 2.575 65.4 66-133 20-40 12 300 225 15 1.84
2 1/2 63.5 3.217 81.7 66-133 20-40 16 400 225 15 2.8
3 76.2 3.764 95.6 66-133 20-40 18 450 225 15 3.48
4 101.6 4.803 122 66-133 20-40 24 600 225 15 4.74
5 127 5.945 151 66-133 20-40 30 750 225 15 6.85
6 152.4 6.976 177.2 66-133 20-40 36 900 225 15 8.33
8 203.2 9.197 233.6 66-133 20-40 48 1200 225 15 13.51
10 254 11.433 290.4 33-100 10-30 60 1500 225 15 19.31
12 304.8 13.638 346.4 33-100 10-30 72 1800 225 15 26.36
