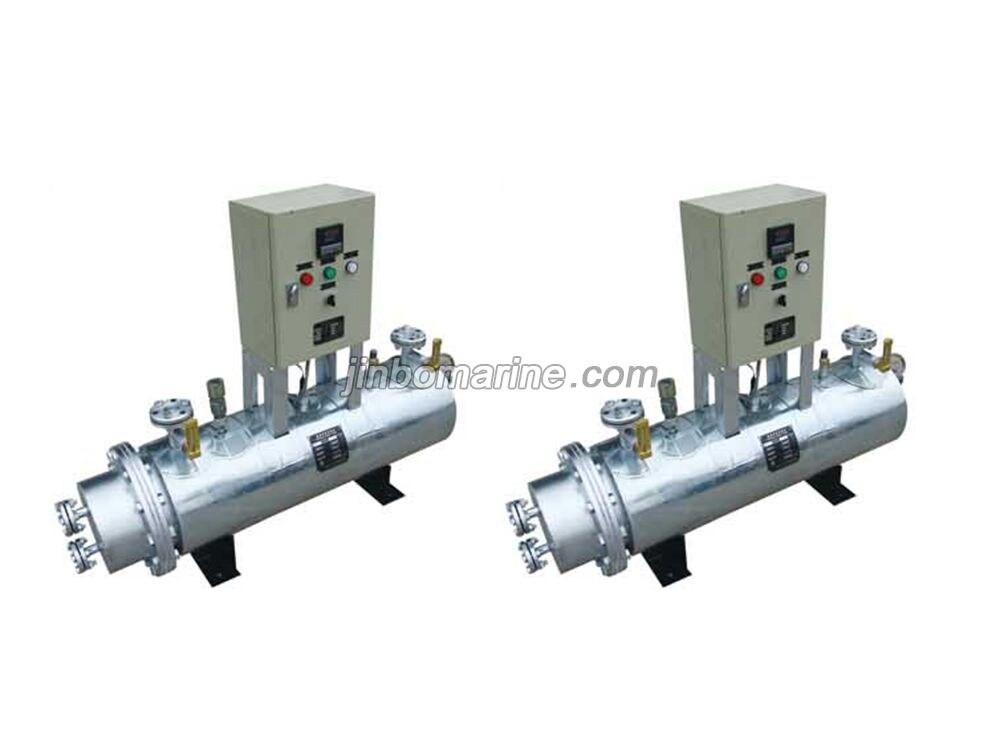

Marine JWHU Series Jacket Water Heating Unit
- Category:Marine Calorifier
- Material:Steel
- Certificate:CCS, BV, ABS, GL，LR, NK
- Packing Details:Wooden box
- Delivery Time:15-20days
- Supply Ability:15 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Marine JWHU Series Jacket Water Heating Unit:
Marine JWHU Series Jacket Water Heating Unit
This series electric steam heating calorifier is suitable for all kinds of ship which have the steam source or power source (AC 3P/380V/50Hz or AC 3P/440V/60Hz.) to product hot water, It can supply the hot water for crewmen.
Technical Data:
| Type |
Volume m3 |
Design
Press. MPa |
Working
Press. MPa |
Inlet Temp. ℃ |
Outlet Temp. ℃ |
Heating
Capacity kg/h |
Heating Power kw | Circle. Pump | Power Supply | |
|
Flow
rate m3/h |
Press. Mpa |
|||||||||
| JWHU-9 | 0.08 | 0.45 | 0.4 | 15 | 80 | 140 | 9 | 3 | 0.4 |
3P/380V/50Hz or 3P/440V/60Hz |
| JWHU-12 | 0.08 | 180 | 12 | |||||||
| JWHU-15 | 0.12 | 230 | 15 | 6.5 | 0.35 | |||||
| JWHU-18 | 0.12 | 280 | 18 | |||||||
| JWHU-21 | 0.15 | 320 | 21 | |||||||
| JWHU-24 | 0.15 | 360 | 24 | 10 | ||||||
| JWHU-27 | 0.2 | 420 | 27 | |||||||
| JWHU-30 | 0.2 | 480 | 30 | |||||||
| JWHU-36 | 0.2 | 540 | 36 | 14 | ||||||
| JWHU-54 | 0.3 | 720 | 54 | |||||||
| JWHU-60 | 0.3 | 900 | 60 | |||||||
