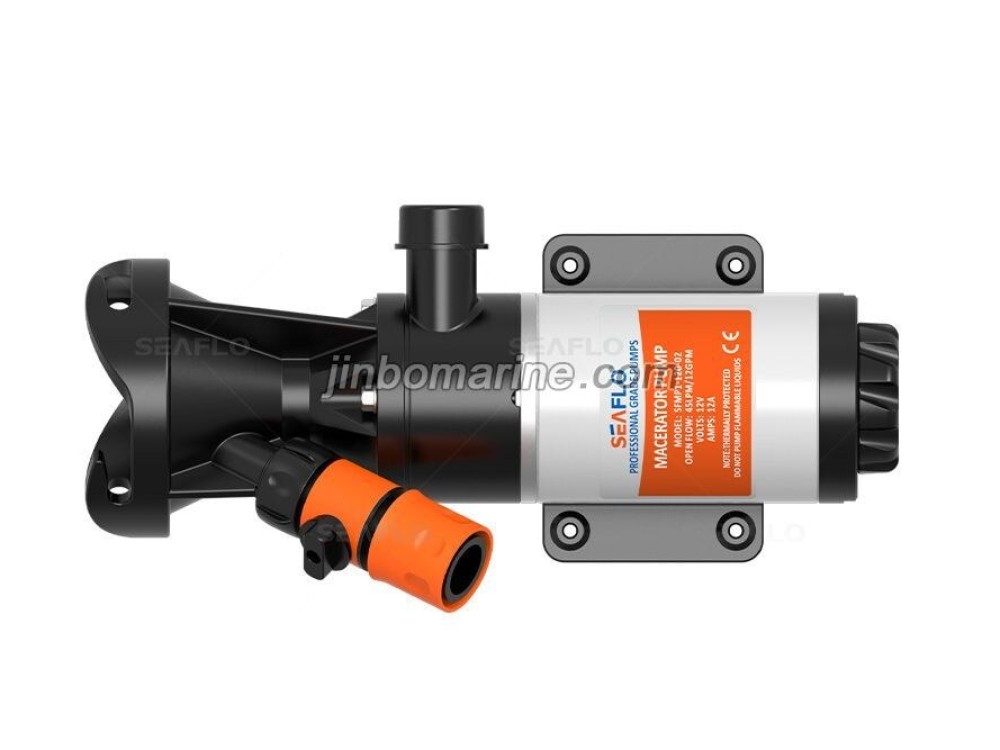

Marine Macerator Pump 02-Series

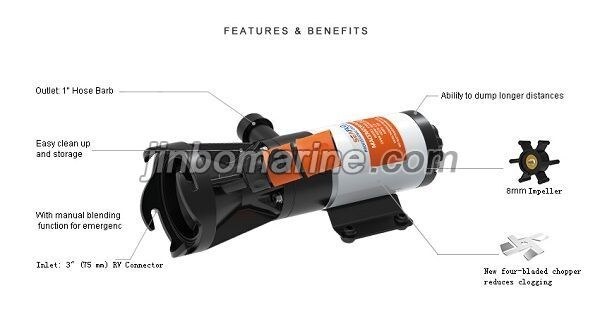

New design SEAFLO 02-Series RV macerator pump unit is the ideal waste emptying solution for your RV. With the Quick-Connect RV fitting, this pump easily attaches and removes in seconds. It cleanly handles both the black and the grey water from your holding tanks with this self priming, powerful macerator pump. The pump housing is designed to connect onto the standard three inch waste outlet.
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Open Flow |
Dimensions | Impeller | Ports |
Max Draw(A) |
| SFMP1-120-02 | 12V | 12.0/45.0 |
11.6"x5.79"x5.2" |
Rubber & Copper |
3" (75 mm) RV Connector 1" Hose Barb |
12.0 A |
| SFMP2-120-02 | 24V | 12.0/45.0 |
11.6"x5.79"x5.2" |
Rubber & Copper |
3" (75 mm) RV Connector 1" Hose Barb |
7.0 A |
PERFORMANCE
| PRESSURE | FLOW | CURRENT | ||
| PSI | BAR | GPM | LPM |
AMPS |
| 0 | 0 | 10.0 | 41.0 | 12.2 |
| 4 | 0.28 | 8.00 | 30.3 | 13.1 |
| 8 | 0.55 | 6.13 | 23.2 | 13.8 |
| 12 | 0.83 | 4.07 | 15.4 | 14.5 |
| 16 | 1.10 | 0 | 0 | 0 |
