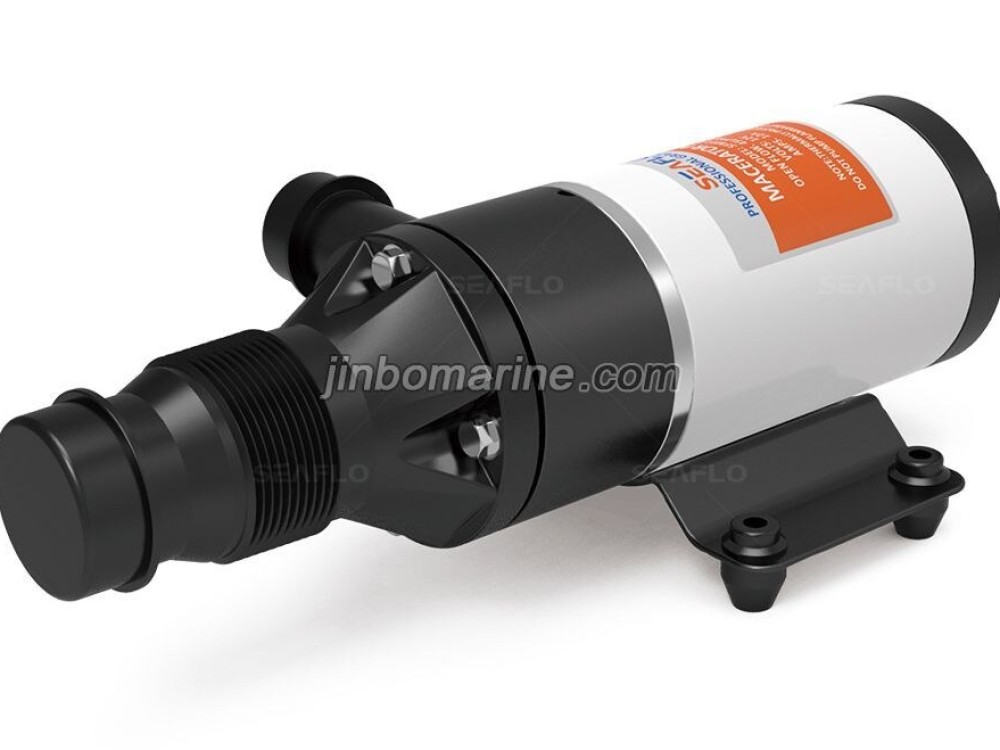

Marine Macerator Pump

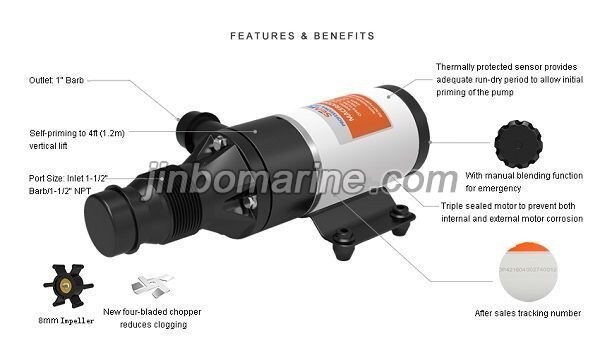

The latest version of the Macerator Pump now has a fully sealed motor and a new more powerful chopper blade. The sealed motor consists of o-ring sealed end bells, sealed bearings and a hard durable powder coating to prevent corrosion occurring both internally and externally. A new four bladed chopper has been added to further reduce the possibility of clogging. The SEAFLO 01-Series DC macerator pump unit is the ideal solution for the emptying of marine holding tanks, fish boxes and livewell receptacles.
STANDARD PUMP CONFIGURATIONS
| Model | Voltage | Open Flow | Dimensions | Impeller | Ports | Max Draw(A) |
|---|---|---|---|---|---|---|
| SFMP1-120-01 | 12V | 12.0/45.0 | 11.18"x5.01"x3.85" 284x127.5x98mm | Rubber & Copper | 1-1/2” MNPT 1" Hose Barb | 12.0 A |
| SFMP2-120-01 | 24V | 12.0/45.0 | 11.18"x5.01"x3.85" 284x127.5x98mm | Rubber & Copper | 1-1/2” MNPT 1" Hose Barb | 6.0 A |
PERFORMANCE
| PRESSURE | FLOW | CURRENT | ||
|---|---|---|---|---|
| PSI | BAR | GPM | LPM | AMPS |
| 0 | 0 | 10.8 | 40.8 | 12.0 |
| 4 | 0.28 | 7.93 | 30.0 | 12.8 |
| 8 | 0.55 | 6.08 | 23.0 | 13.5 |
| 12 | 0.83 | 3.96 | 15.0 | 14.3 |
| 16 | 1.10 | 0 | 0 | 0 |
