Marine Equipment

Marine Mooring Rope Reel

Product Description: 1. Steel wire rope dia.: 20mm---72mm. 2. Steel wire rope length: 140-220m. 3. Material: Marine grade cast steel. 4. Use for the storage of ship...

Marine Mooring Equipment1 Photos ISO9001 Supplier

Loading product images...

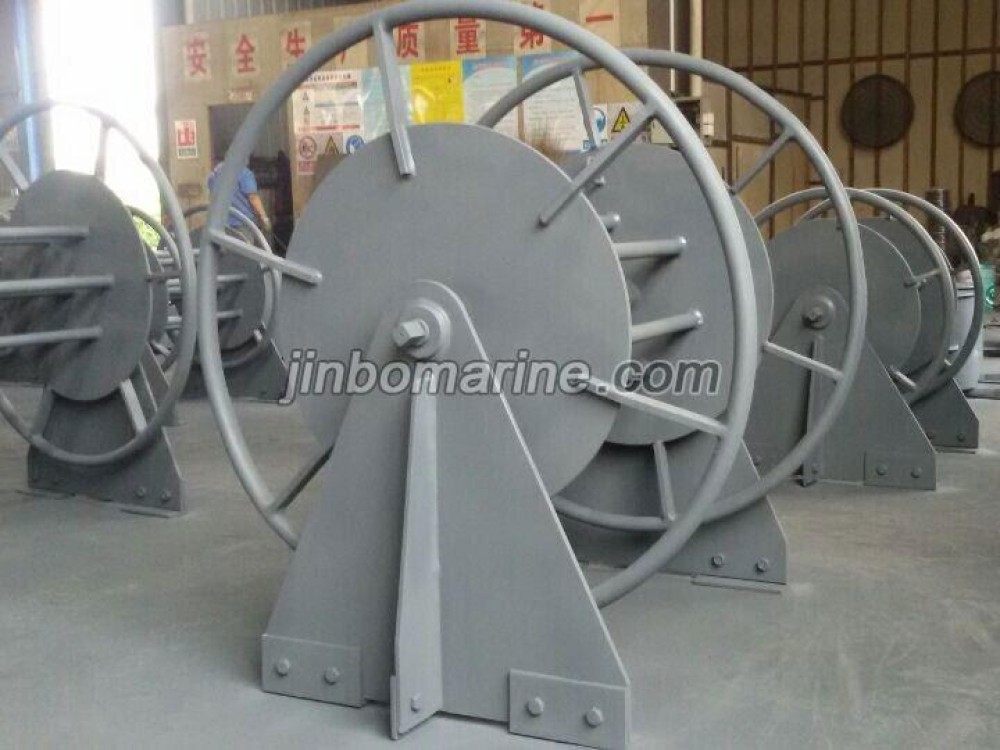

Marine Mooring Rope Reel

Category: Marine Mooring Equipment

Certificate: ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS

FOB Price: Get Latest Price Now

Warranty: 12 Months unless specified otherwise

Place of Origin: China

Request a Quote PDF Datasheet

We can supply according to your requirement.

Product Description:

1. Steel wire rope dia.: 20mm---72mm.

2. Steel wire rope length: 140-220m.

3. Material: Marine grade cast steel.

4. Use for the storage of ship fiber rope on all kinds of ships.

Detail specifications:

Marine Steel Wire Reel

Name	Type	No		Wire rope(m)	Wire long(m)
Type A steel (w-nohandle)	AW,A	AW13	A13	13.0	120
		AW17	A17	17	190
		AW21	A20.5	20.5	180
		AW26	A26.0	26.0	190
		AW32	A32	32	190
Type B Steel wire reel	B	B39		39.0	210
Type B Steel wire reel	B	B48		47.5	230
Type C Steel wire reel	C	C56		56	300
