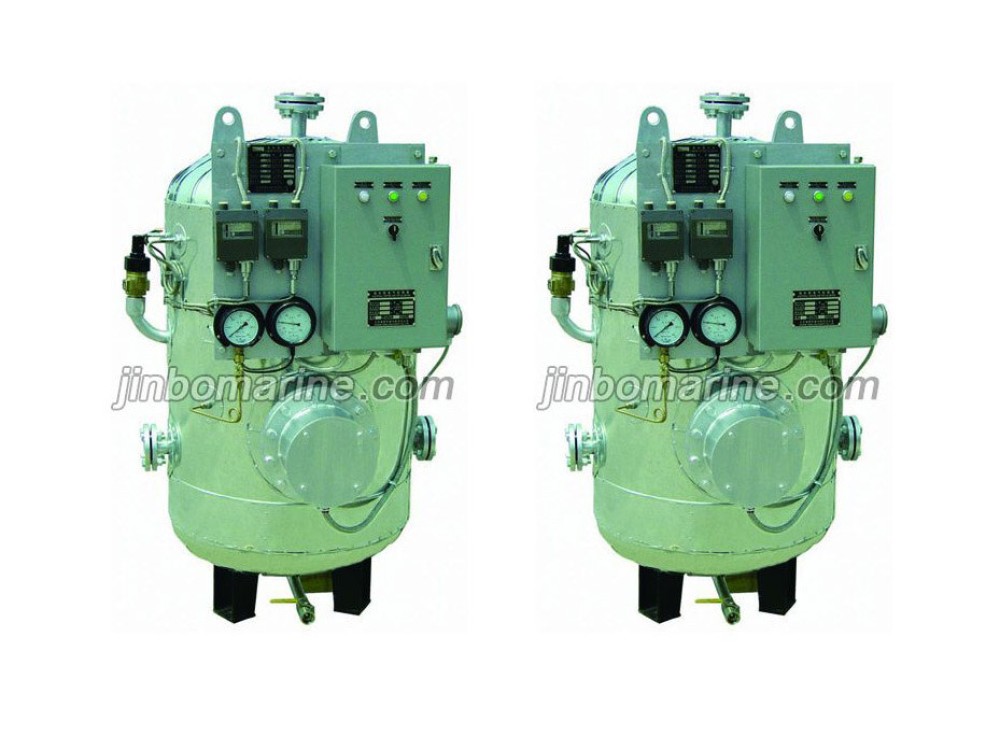

Marine Offshore Electric Calorifier Tank
- Category:Marine Calorifier
- Certificate:CCS,GL,BV etc.
- Material:Carbon Steel, SS304
- Packing Details:Standard Export Packaging
- Delivery Time:15-20days
- Supply Ability:15 sets/month
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Brief Description:
High quality with pump type or without pump type Calorifier Tank supply.
One pump or double pumps are available.
The power can be steam and electric.
The quality have approved by IMO. Such as CCS, ABS, BV, EC, GL class.
The material usually be carbon steel or stainless steel.
Main Technical Parameters:
|
Model |
ZDR- |
|||||
|
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
||
|
Capacity（m3） |
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
|
|
Working pressure（MPa） |
0.4（60℃） |
|||||
|
Design pressure（MPa） |
0.44 |
|||||
|
Test pressure（MPa） |
0.68 |
|||||
|
Safety valve open pressure（MPa） |
0.42 |
|||||
|
Water inlet temperature（℃） |
15 |
|||||
|
Water outlet temperature（℃） |
65 |
|||||
|
Working temperature（℃） |
0~65 |
|||||
|
Design temperature（℃） |
80 |
|||||
|
Steam pressure（MPa） |
0.3 |
|||||
|
Heated water capacity（kg/h） |
275 |
450 |
750 |
1200 |
3250 |
|
|
Steam consumption （kg/h） |
27.5 |
45 |
75 |
120 |
325 |
|
|
Heated water capacity（kg/h） |
180 |
360 |
540 |
720 |
900 |
|
|
Electrical heating power（kW） |
12 |
24 |
36 |
48 |
60 |
|
|
Electricity |
AC380、50Hz、3φ/AC440V、60Hz、3φ |
|||||
|
The thickness of the external thermal layer（mm） |
40 |
|||||
|
The thickness of outer galvanized sheet steel（mm） |
0.7 |
|||||
|
|
|
|
|
|
|
|
