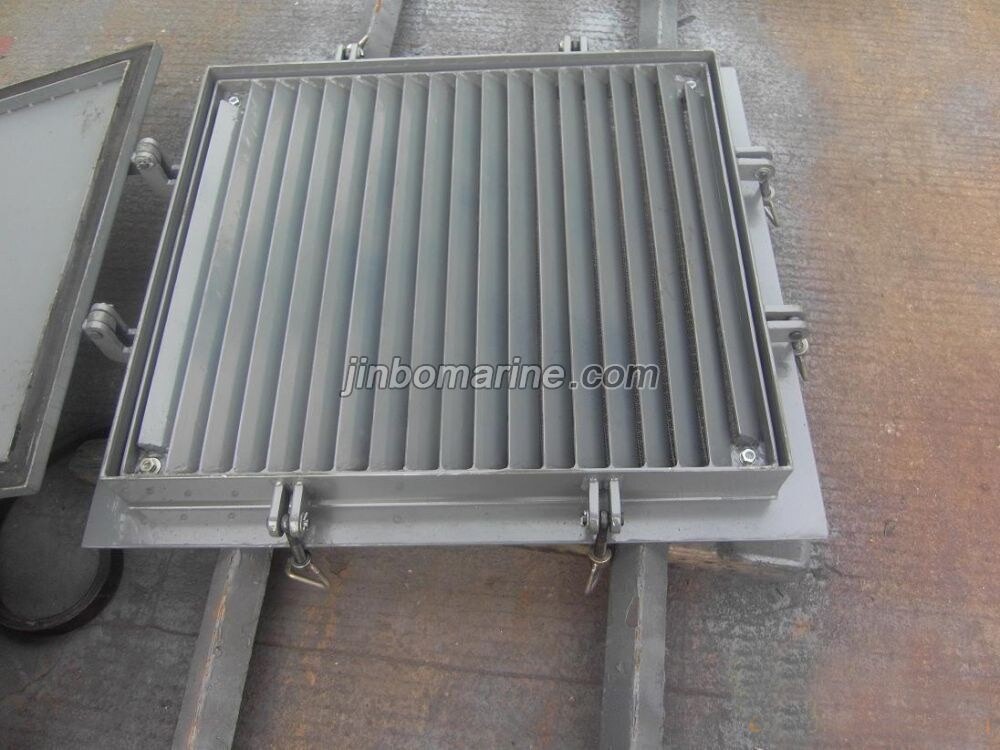

Marine Steel Watertight Louver with Cover

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Marine Steel Watertight Louver with Cover:

Standard: CB/T749-1997

Marine Steel Watertight Louver with Cover has the advantage of watertight/weathertight, radiation proof, insect prevention, ventilation, used for wheel house, store room and toilet on the ship.

Main Parts and Material:

1-Cover: carbon steel

2-Packing:Rubber

3-Window Frame: carbon steel

4-Window Seat: Carbon Steel

5-Fixed eye plate: steel

6-Insect prevention screen: stainless steel/steel screen

7-Mouse prevention screen: stainless steel/steel screen

8-Blade: carbon steel, carbon steel with hot dip galv or stainless steel

9-Eye Plate: carbon steel

10-Bolt: carbon steel with hot dip galv/brass/sus

11-Nut: carbon steel with hot dip galv/brass/sus

12-Spring gasket: steel

13-Hinge: stainless steel

14-Clip:stainless steel or carbon steel

15-Hook: steel

16-Handle: Steel

Main Size List(mm):

Nominal Size Cover Size Wall Cut Out Size Frame Size Frame thickness Louver Frame thickness Blade thickness Window frame height
BXL B1XL1 B2XL2XR B3XL3 t2 t3 t4 h
150x200 192x242 200x250x33 250x300 8 4 3 70
300x150 342x192 350x200x33 400x250 8 4 3
600x300 642x342 650x350x60 700x400 8 5 4
*The size in the list is just for reference. More size are not listed here. The size also can be customized.
