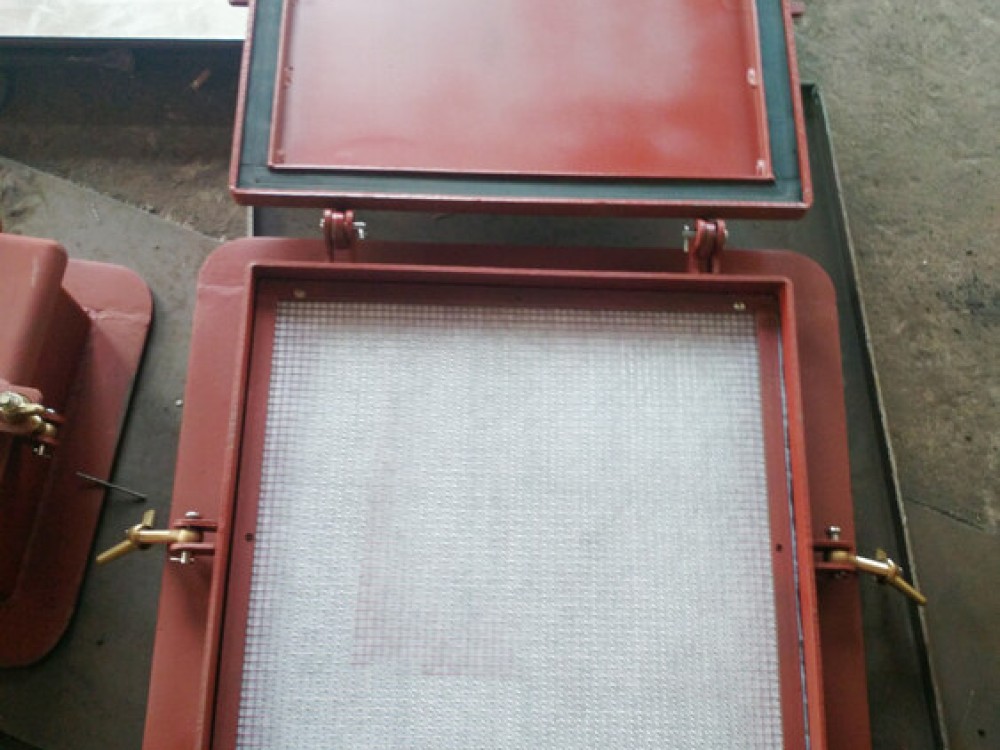

Marine Steel Watertight Louvre with G4 Filter

Marine Steel Wateright Louvre with G4 Filter

Standard: CB/T749-1997

It has the advantage of watertight/weathertight, radiation proof, insect prevention, ventilation, used for wheel house, store room and toilet on the ship.

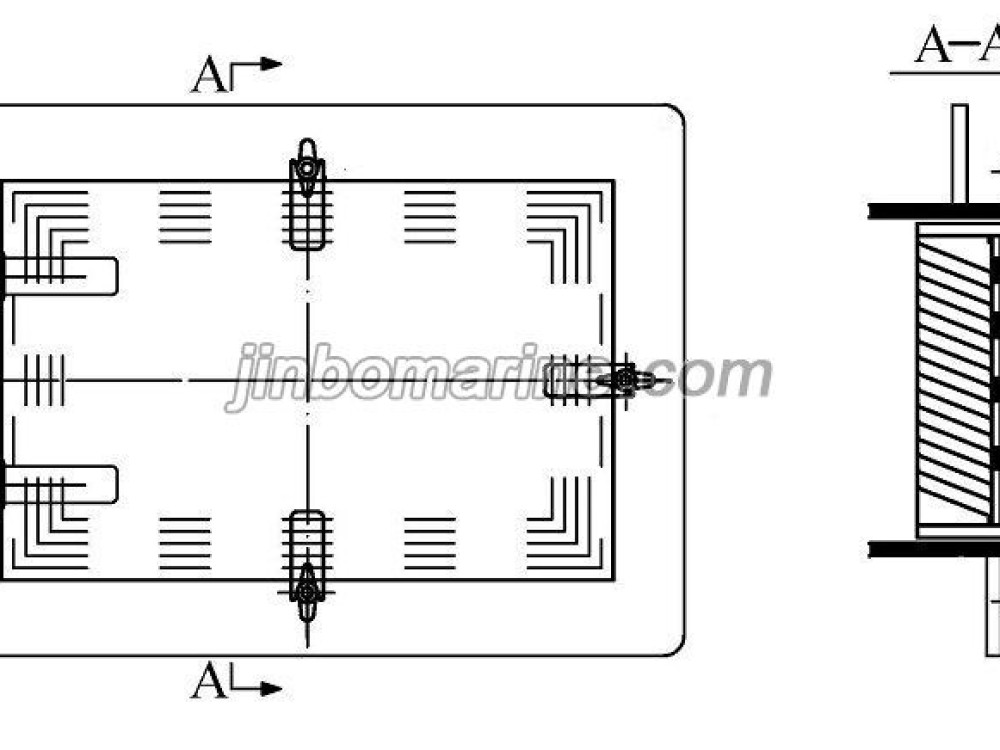

1-Cover: carbon steel

2-Packing:Rubber

3-Window Frame: carbon steel

4-Window Seat: Carbon Steel

5-Fixed eye plate: steel

6-Insect prevention screen: SUS/steel screen

7-Mouse prevention screen:SUS/ steel screen

8-Blade: carbon steel, carbon steel with hot dip galv or stainless steel

9-Eye Plate: carbon steel

10-Bolt: Brass/SUS/Carbon Steel

11-Nut: Brass/SUS/Carbon steel

12-Spring gasket: SUS/steel

13-Hinge: Brass/stainless steel/Carbon Steel

14-Clip:Brass/stainless steel/carbon steel

15-Hook: steel

16-Handle: Steel
