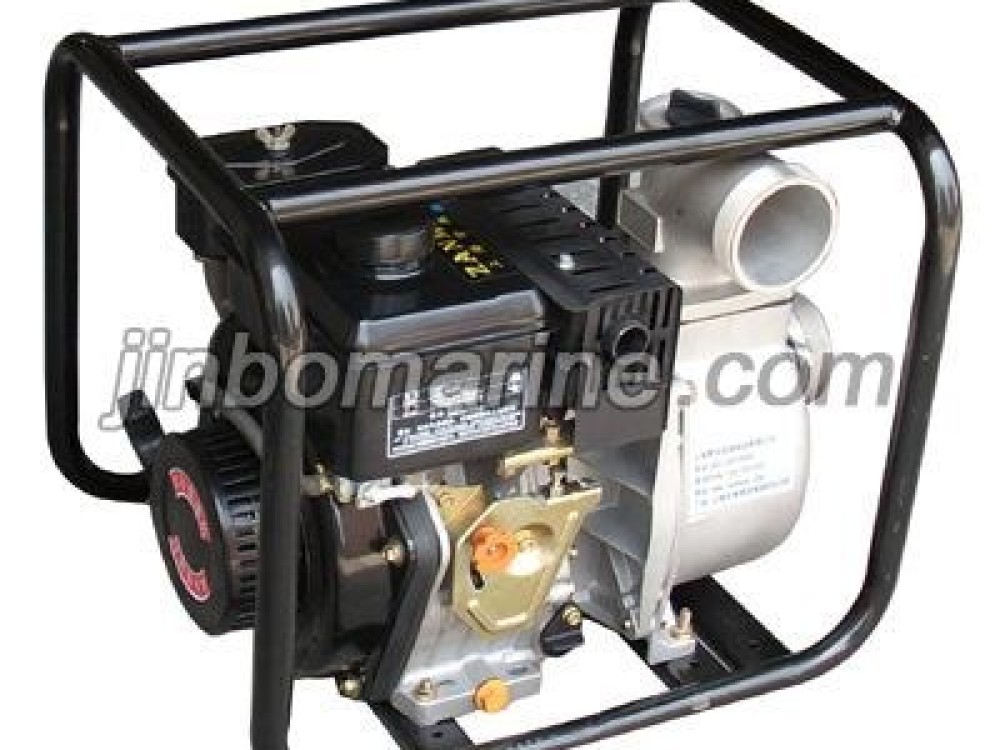

New model diesel water pump
- Category:Diesel engine driven water pump
- Standards:Standard
- Packing Details:Standard packing
- Delivery Time:7 days
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
New model diesel water pump
Parameter
| New model diesel water pump | |||
| Set | Model | 50KB-2 | 80KB-3 |
| Name | New model diesel pump | ||
| Inlet/Outlet diameter | 50mm(2") | 80mm(3") | |
| Cont. Capacity(m3/h) | 22 | 30 | |
| Cont. Head lift(m) | 15 | 13 | |
| Suction.Time | 80s/4m | 120s/4m | |
| Max.Suction head(m) | 8 | 8 | |
| Max.Capacity(m3/h) | 28 | 50 | |
| Max.Head lift(m) | 29 | 25 | |
| Engine | Engine model | 170F | 170F |
| Engine type | Single cylinder,4-stroke,air cooled diesel engine | ||
| BorexStroke(mm) | 70x55 | 70x55 | |
| Displacement(ml) | 211 | 211 | |
| Rated power(kw) | 2.5 | 2.5 | |
| Max.output power(HP) | 4 | 4 | |
| Rated spee(RPM) | 3000 | 3000 | |
| Mix.Spee(RPM) | <1300 | <1300 | |
| Fuel consumption ratio(g/kw.h) | <280.2 | <280.2 | |
| Fuel type | 0#,-10# diesel oil | ||
| starting method | Recoil start | ||
| Fuel tank capacity(L) | 2.65 | 2.65 | |
| Oil capacity(L) | 0.75 | 0.75 | |
| Pack | Packing size(mm) | 500x425x505 | 500x425x505 |
| Net weight(Kgs) | 29.5 | 32.5 | |
| Gross weight(Kgs) | 31.5 | 34.5 | |
| 20FT Qty | 228 | 228 | |
