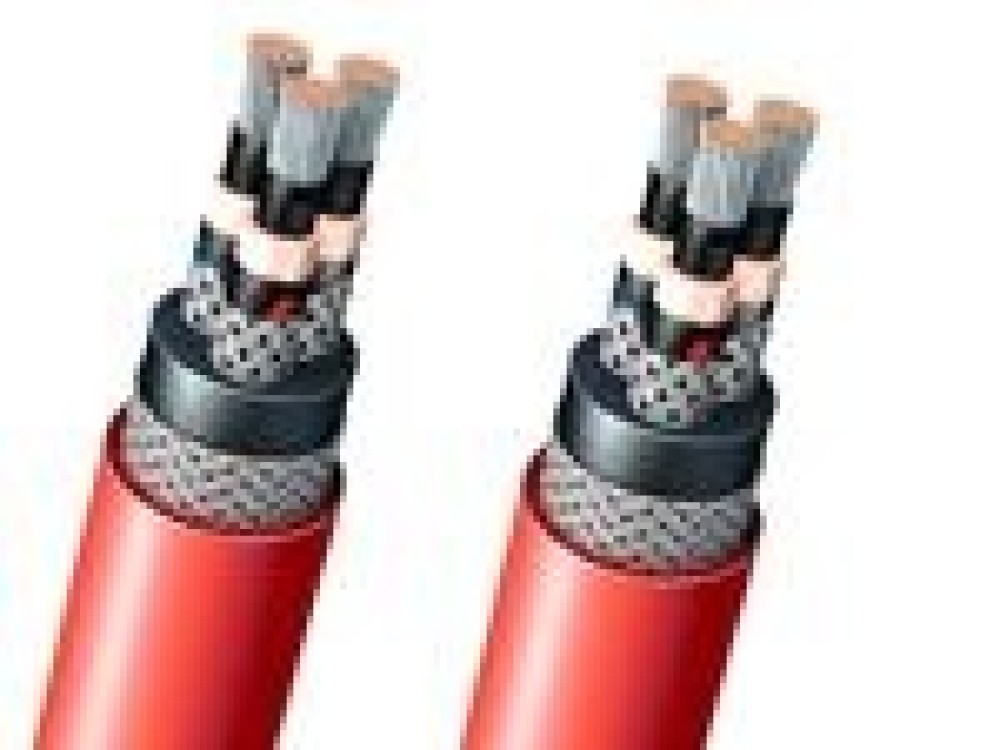

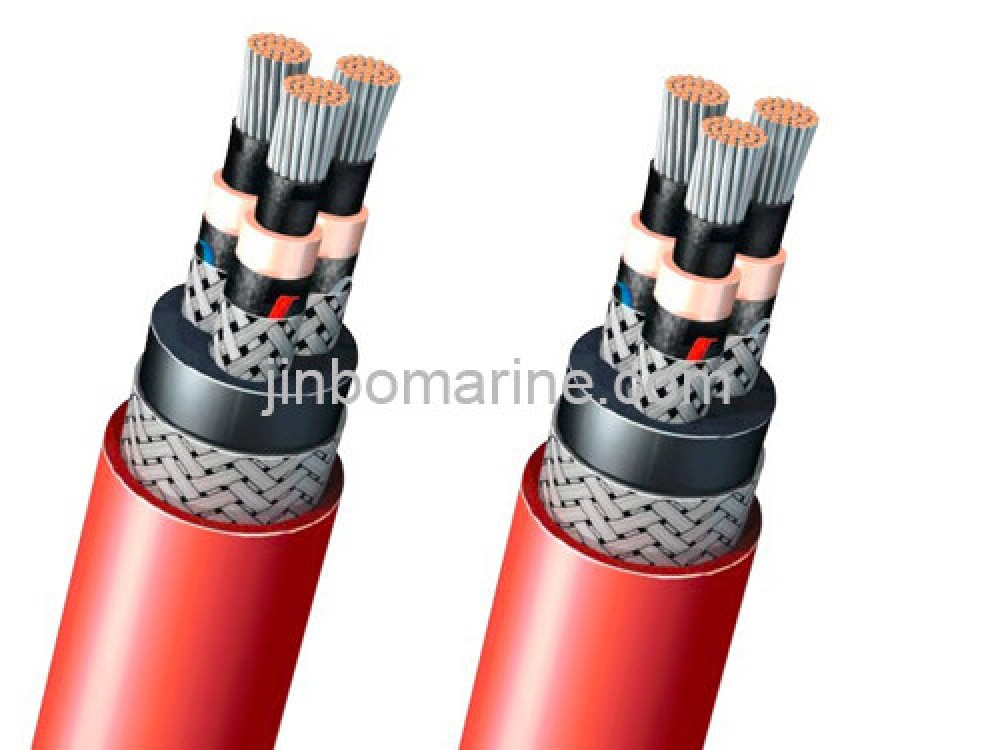

P2 RFOU/TFOU 3.6/6KV Halogen-free Power Cable (NEK606)
- Category:NEK606 Cable
- Material:Tinned Copper/EPR insulation/SHF1 sheath/ Tinned Copper Wire Braided/ SHF2 Sheath or SHF Mud
- Standards:NEK 606-2004
- Certificate:LR, ABS,BV, GL, RINA, DNV, NK, KR, CCS
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China P2 RFOU/TFOU 3.6/6KV Halogen-free Power Cable (NEK606):
High Voltage Power Cable
Halogen free flame retardant Power Cable
P2 3.6/6 KV RFOU/ TFOU Power Cable
P3 6/10 KV RFOU/ TFOU Power Cable
P4 8.7/15 KV RFOU/ TFOU Power Cable
Halogen Free & Mud Resistant Flame Retardant Cable
P2/P9 3.6/6 KV RFOU/ TFOU Power Cable
P3/P10 6/10 KV RFOU/ TFOU Power Cable
P4/P15 8.7/15 KV RFOU/ TFOU Power Cable
Cable Construction
|
Classification |
Code |
Construction details |
|
Conductor |
Tinned Annealed Stranded Copper Wire |
|
|
Conductor Screening |
Semi conducting tape |
|
|
Insulation |
R |
EP Rubber |
|
Insulation Screening |
Semi conducting tape |
|
|
Bedding/Inner Covering |
F |
Halogen-free compound SHF1 and tinned copper wire braid |
|
Armor |
O |
Tinned Copper wire braided |
|
Outer Sheath |
U |
Halogen-free Thermoset compound SHF2 |
|
Halogen-free mud resistant thermoset compound, SHF Mud |
Standards
Design : IEC 60092-354
NEK 606-2004
IEC 60332-3 Category A
IEC60754-1
IEC 61034-1
Cores & Size
Cores: 1Core 3Cores
Size (sqmm): 25, 35, 50, 70, 95, 120, 150, 180, 240, 300
Feature
Halogen-free, Low Smoke, Flame retardant, Mud Resistant
Application:
The cable is fixed installation in explosion risk and safe area; High Voltage power cables for general purposes; SHF Mud for Installation in areas expose to Mud and Drilling or Cleaning fluids
