Yacht Windlass & Winch

Yatch Vertical Windlass With Mooring Drum

Features 1. Vertical design suits powerboats or silboats and can be utilized for anchor ropes,as dockingcapstans on larger craft, or auxiliary line hauling. 2.High-quality polished 316 st...

ISO9001 Supplier Class Certificate Export Supply

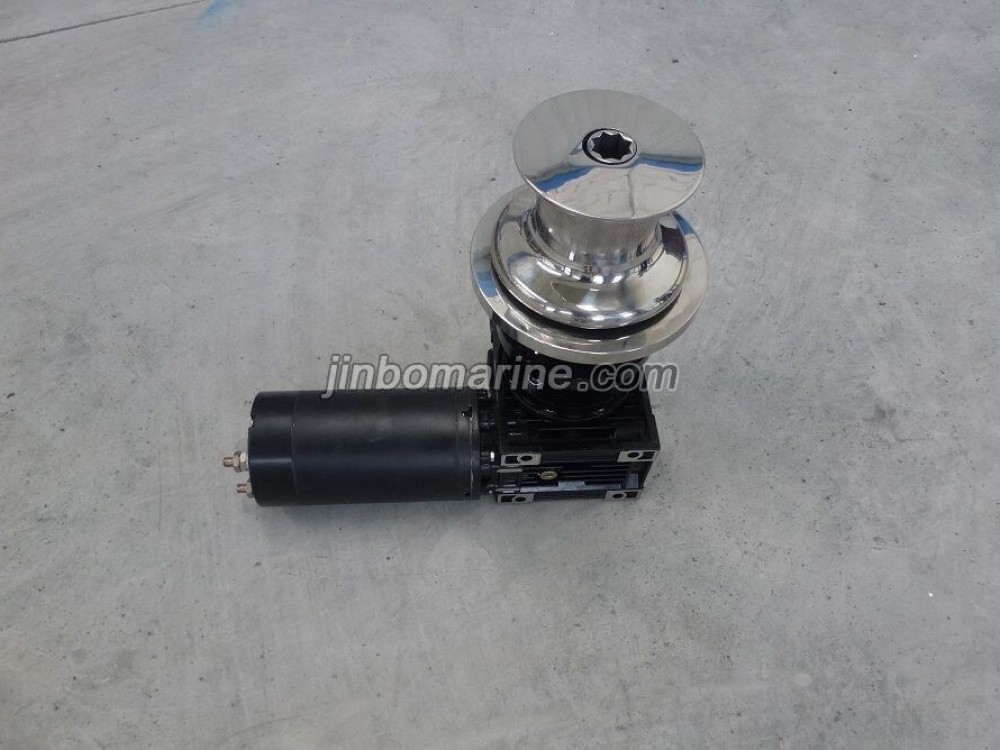

Yatch Vertical Windlass With Mooring Drum

Key Highlights

Category
Yacht Windlass & Winch
Standard
DIN
Material
Stainless steel 304,316, 316L
Weight / Size
Installation Positions Main Parameter  Model   Net Weight   Power Supply...
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
We can supply according to your requirement, drawings, class certificate needs, and delivery schedule.

Technical Specifications

Category
Yacht Windlass & Winch
Model / SKU
Yatch-Vertical-Windlass-With-Mooring-Drum
Standard
DIN
Material
Stainless steel 304,316, 316L
Weight / Size
Installation Positions Main Parameter  Model   Net Weight   Power Supply   Motor  AMPS@ WORIKING LOAD   Max.
Surface
2.High-quality polished 316 stainless steel surface makes for a good appearance.
Certificate
ABS, LR, BV, DNVGL, NK, KR, IRS, RMRS, CCS
Warranty
12 Months unless specified otherwise
Origin
China

Features

1. Vertical design suits powerboats or silboats and can be utilized for anchor ropes,as dockingcapstans on larger craft, or auxiliary line hauling.

2.High-quality polished 316 stainless steel surface makes for a good appearance.

3.Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.

4.Rope-chain gypsy, choice of two gypsy.

5.Fit include hand-switch, foot-switch, control box and wrench.

Installation Positions

Main Parameter

Model Net Weight Power Supply Motor AMPS@ WORIKING LOAD Max. Load Max. Pull Line Speed Rope Size Chain Size
YD411/ YD411H 12/12. 6KG 12V/24V 400W 30A/20A 125kg 420kg 30in/min 14/16mm 6/7min
YD511/ W511H 12. 3/13KG 12V/24V 600W 60A/40A 186kg 560kg 25in/min 14/16mm 6/7min
YD611/ YD611H 19/21KG 12V/24V 800W 100A/50A 250kg 700kg 20ni/min 18/20mm 8/10mni
YD711/ YD711H 24/25. 5KG 12V/24V 1200W 120A/75A 400kg 1200kg 20in/min 18/20mm 8/10mni
YD811/ YD811H 29/31. 5KG 12V/24V 1600W 165A/90A 660kg 1600kg 20in/min 18/20/26mm 8/10/12mni
YD1011/ YD1011H 30. 5/33KG 12V/24V 2000W 170A/95A 660kg 1900kg 20in/min 20/26/28mm 10/12/13mm

Dimension

Model Motor A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) H(mm)
YD411 400W 85 22-41 140 265 122 180
YD411H 400W 59 22-41 115 135 265 122 181
YD511 600W 85 22-41 140 275 122 180
YD511H 600W 59 22-41 115 135 275 122 181
YD611 800W 110 38-54 145 320 155 220
YD611H 800W 79 38-54 165 145 320 155 220
YD711 1200W 110 38-54 172 350 170 265
YD711H 1200W 79 38-54 165 172 350 170 265
YD811 1600W 110 38-54 190 415 170 265
YD811H 1600W 79 38-54 165 190 415 170 265
YD1011 2000W 130 38-54 190 415 195 295
YD1011H 2000W 110 38-54 235 190 415 195 295

Options

1. With capstan & without capstan.

2. Different-length bolts for any deck thickness.

3. Full range of accessories including anchors, bow rollers, chain stoppers, chain & rope .

4.AC eletric motor available .
