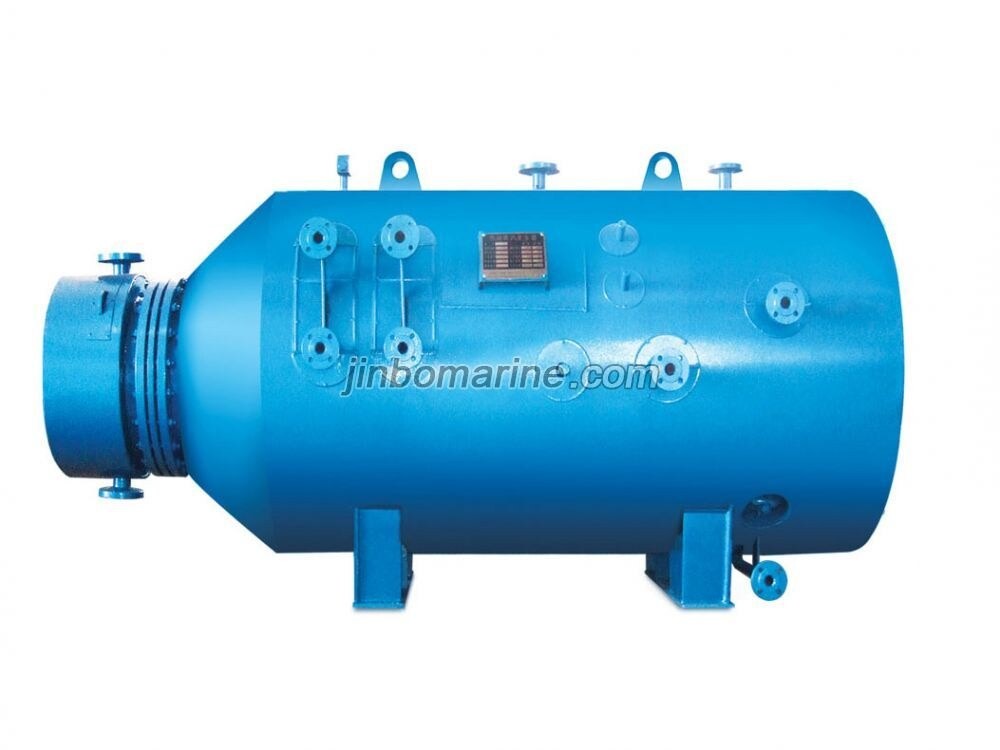

RZQ Marine Thermal Oil Steam Generator
- Category:Marine Boiler
- Certificate:CCS, GL, LR, BV, DNV, ABS, NK, KR, RMRS, RINA
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Product Description:
RZQ Marine Thermal Oil Steam Generator.
Characteristic:
Horizontal type

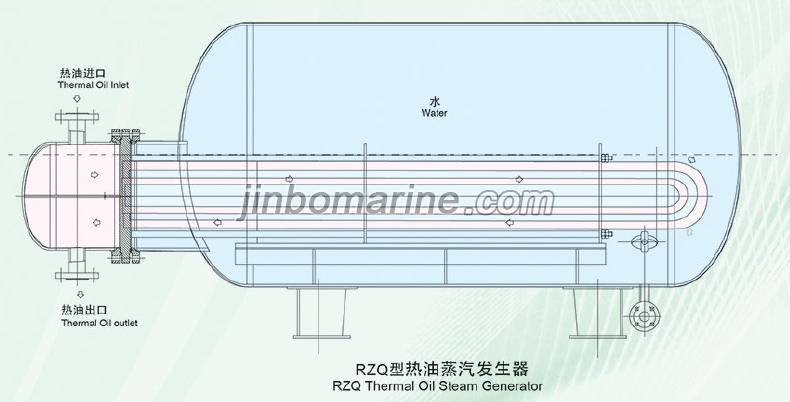

Heating surface is of “U” type tube structure
Compact construction and higher heat exchange efficiency
Applicable for heating for marine fuel, chemicals and living

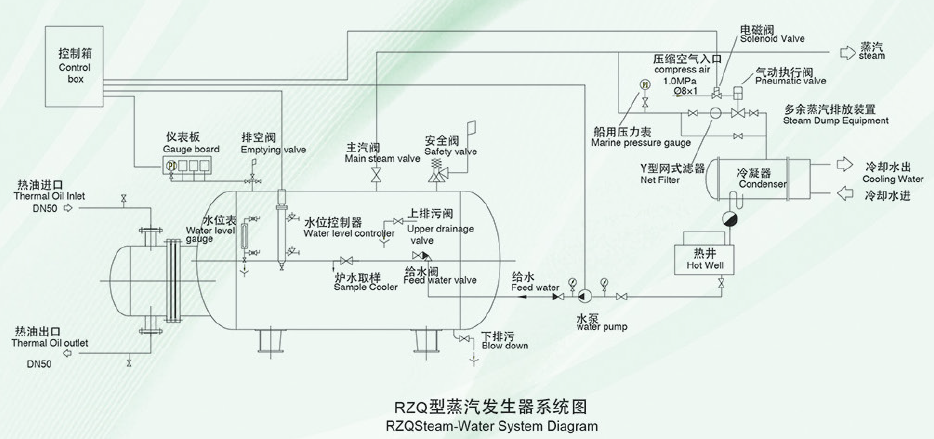

System Diagram:
Technical data:
| Modle |
Thermal Power (kw) |
Design Pressure (Mpa) |

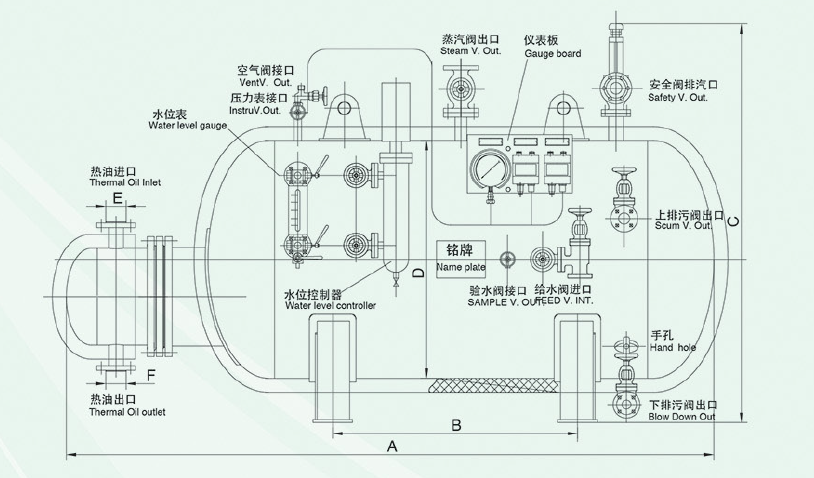

Dimension(mm) | |||||
| A | B | C | D | E | F | |||
| RZQ0.25-0.7 | 250 | 0.7 | 2778 | 1050 | 1710 | Φ1020 | DN50 | DN50 |
| RZQ0.5-0.7 | 500 | 3085 | 1200 | 1810 | Φ1120 | DN65 | DN65 | |
| RZQ1-0.7 | 1000 | 3430 | 1370 | 1946 | Φ1224 | DN80 | DN80 | |
