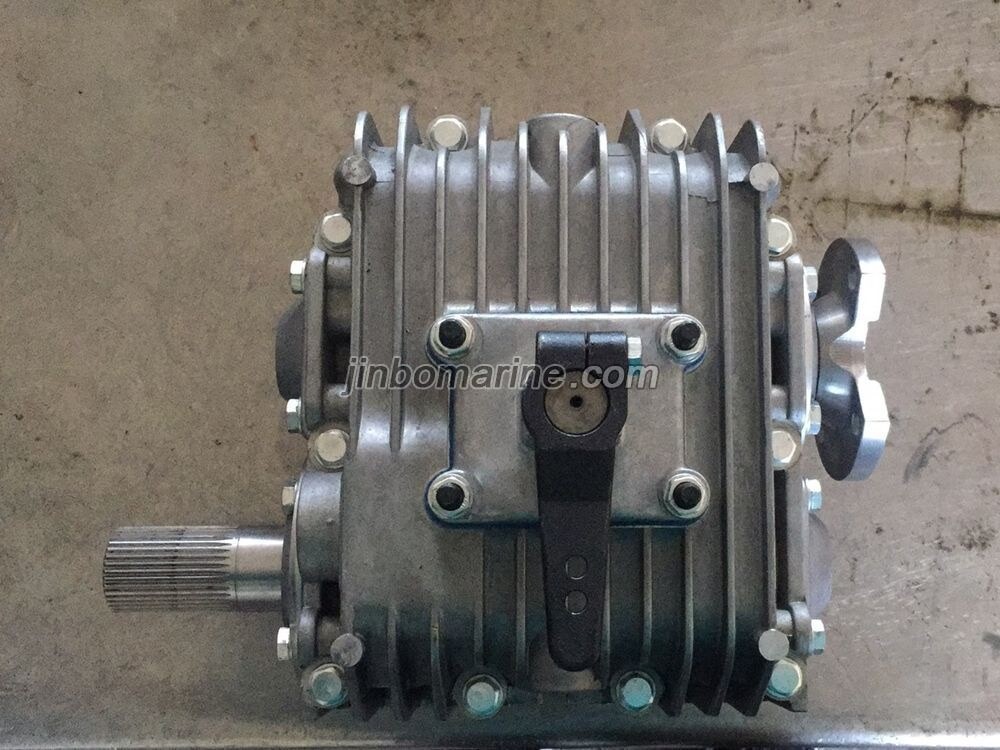

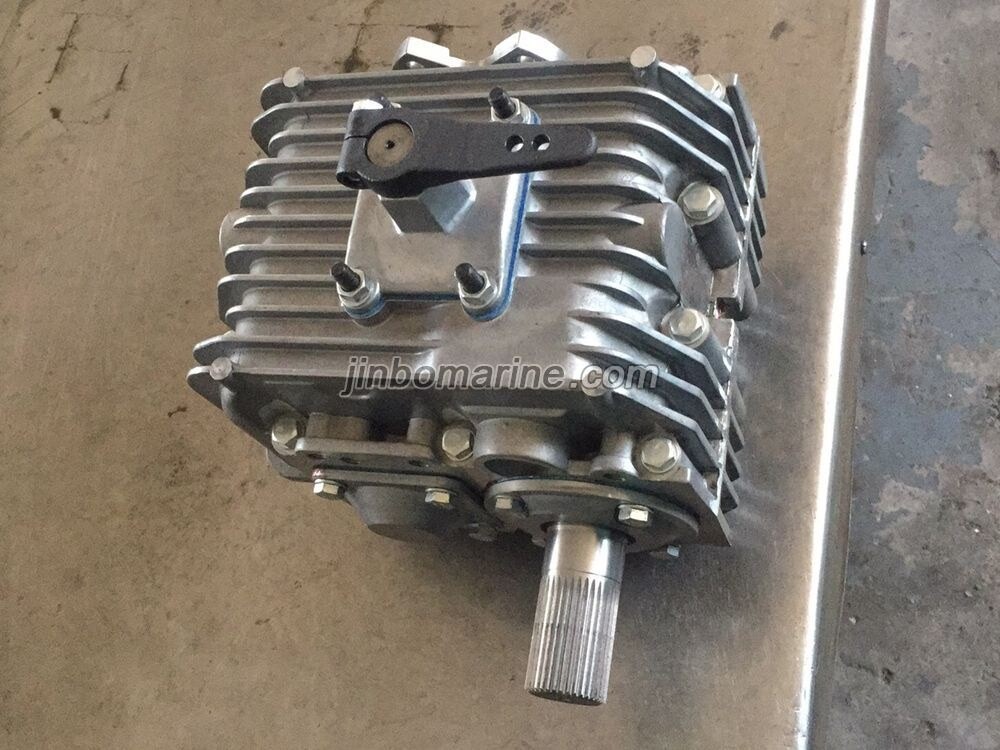

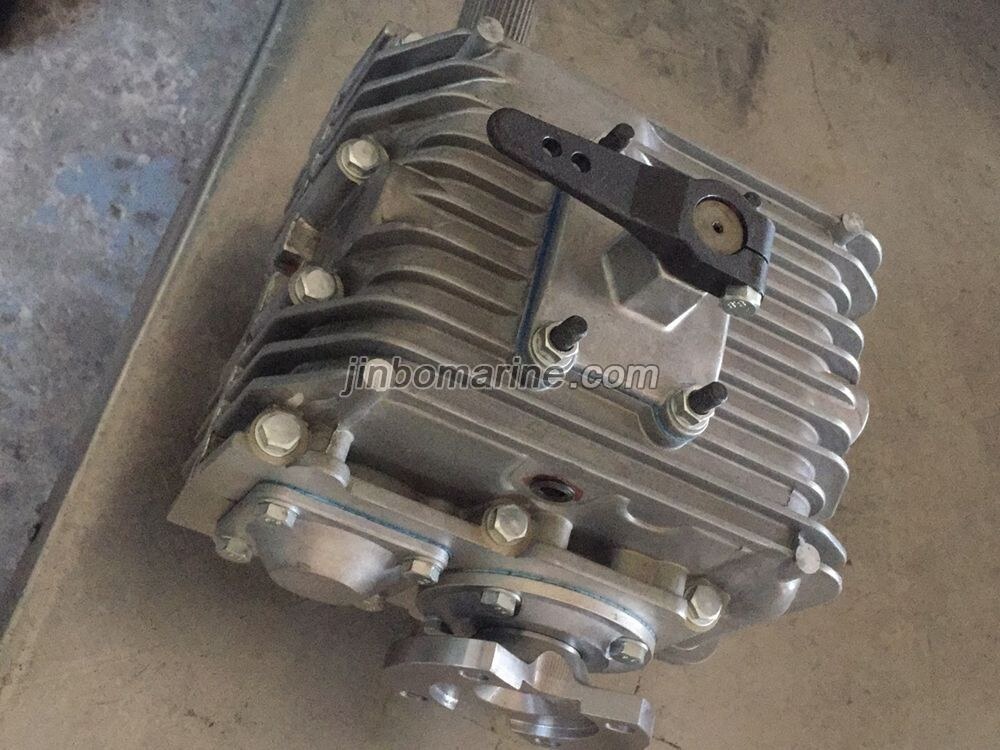

SCG025 Boat Reverse Gearbox
SCG025 Boat Reversing Gearbox are servo-automtically controlled helical gear transmission developed for use in pleasure craft and commercial craft,the servo-operated multiple-disc clutch req...
SCG025 Boat Reverse Gearbox
PDF Datasheet
We can supply according to your requirement.
China SCG025 Boat Reverse Gearbox:
SCG025 Boat Reversing Gearbox are servo-automtically controlled helical gear transmission developed for use in pleasure craft and commercial craft,the servo-operated multiple-disc clutch requires only minimum effort for gear changing,making the SCG transmission suitable for single-lever remote control via a rod linkage or bowden cable.
The torque transmission capacity of the clutch is exactly rated. Preventing shock loods from exceeding a predetermined value to ensure maximum protection of the engine and thus providing the effect of a safety clutch.
| Technical Data | SCG025-1 | SCG025-2 | SCG025-3 | |
| Forward gear 'A' Ratio | i | 1.54 | 1.88 | 2.74 |
| Forward gear 'A' Ratio | i | 2.67 | 2.67 | 2.67 |
| Input torque Mmax | pleasure craft Nm | 200 | 200 | 140 |
| Commercial Craft Nw | 150 | 150 | 110 | |
| Power Input Mmax | pleasure craft Nm | 55 | ||
| Commercial Craft Nw | 40.8 | |||
| Input speed Nmax | r/min | 4000 | ||
| Propeller thrust Fmax | N | 4000 | ||
| Weigth without oil | Kg | 18.5 | ||
| Oil quantity | L | 0.75 | ||
| Oil grade:Automatic transmission fluid(ATF) | ||||
