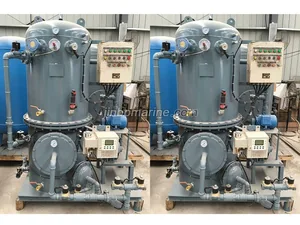

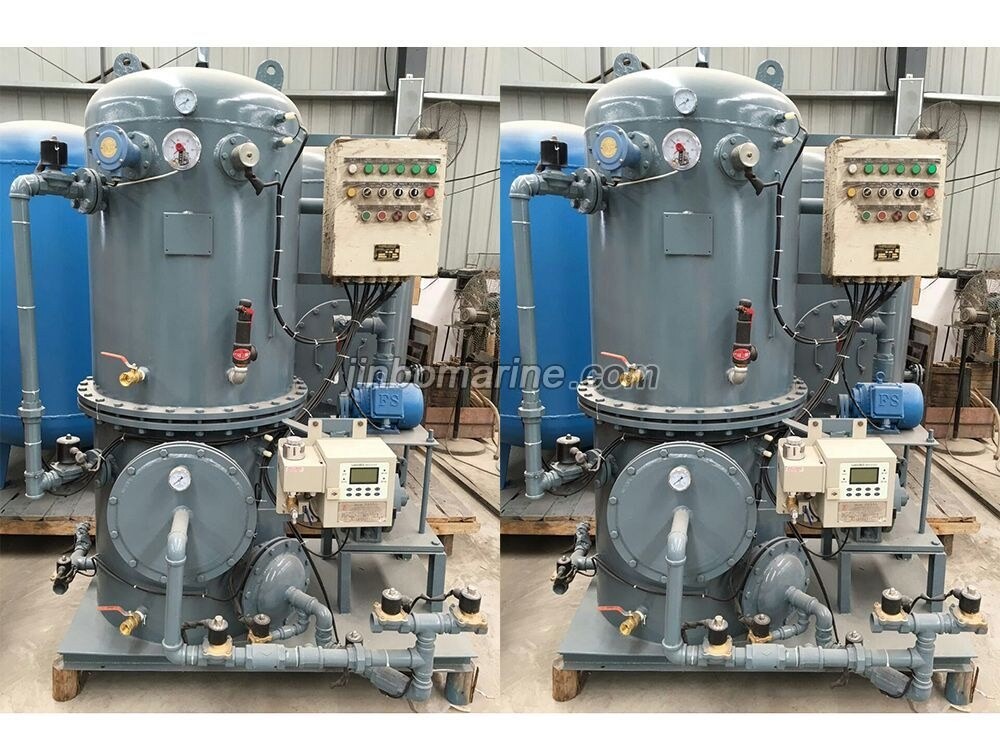

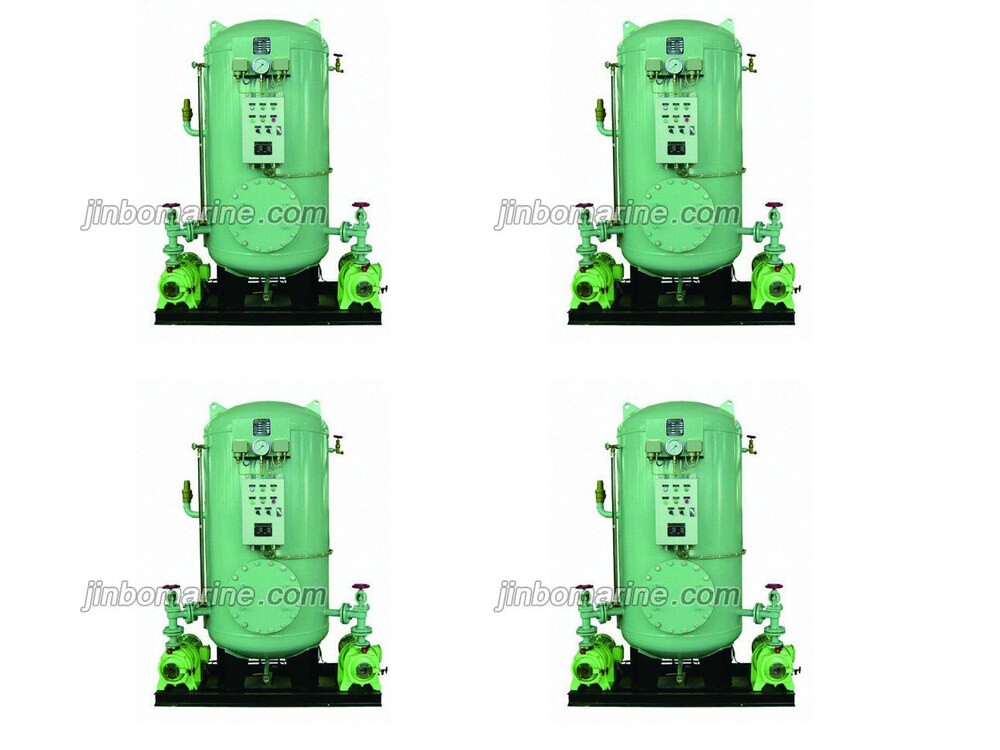

Sea Water Hydrophore System
- Category:Pressure Water Tank
- Certificate:CCS,GL,BV etc.
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
Product Description:
This series of pressure water tank is suitable for ship fresh water pipes and sea water pipes, pumps; pressure switch, electric control box and hydrophone are installed together. It is compact and beautiful appearance, easy to install and maintain, and it is an ideal unit for water supply system.
Working Principle:
The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.
Main Technical Parameters:
|
Model |
ZYG- |
||||||||
|
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
|||
|
Volume（m3） |
0.12 |
0.2 |
0.3 |
0.5 |
1.0 |
1.5 |
2.0 |
||
|
Working pressure（MPa） |
0.4 |
||||||||
|
Design pressure（MPa） |
0.44 |
||||||||
|
Test pressure（MPa） |
0.66 |
||||||||
|
Take-off pressure of safety valve（MPa） |
0.42 |
||||||||
|
Working temperature |
0~45℃ |
||||||||
|
Design temperature |
50℃ |
||||||||
|
Water pump |
Model |
1.5CWX-1.5/1.5A |
1.5CWX-2/2A |
1.5CWX-3/3A |
|||||
|
Flow rate（m3/h） |
3 |
6.5 |
10 |
||||||
|
Pumping head (m) |
40 |
40 |
40 |
||||||
|
Power (kW) |
2.2 |
3 |
4 |
||||||
Structure:
