Self Closing Gate Valve for Short Sounding Pipe with Alarm CBM1065-81
- Category:CB Marine Sounding Device
- Material:Bronze/Brass
- Standards:CBM1065-81
- Certificate:CCS, BV, ABS, NK, DNV/GL, LR
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Self Closing Gate Valve for Short Sounding Pipe with Alarm CBM1065-81:

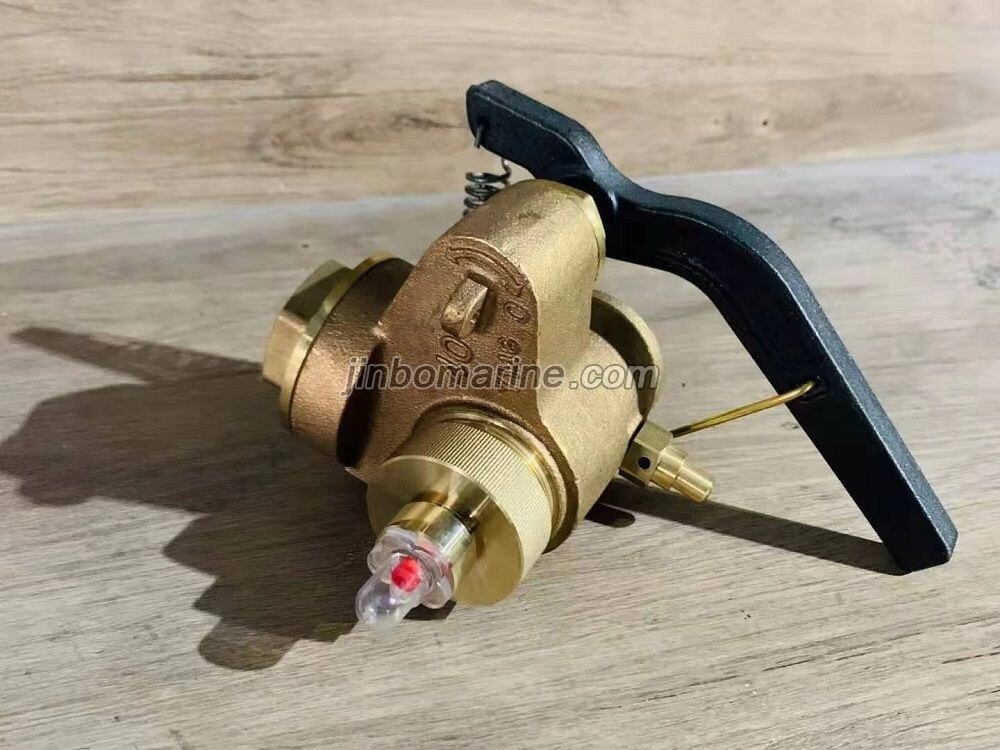

Self Closing Gate Valve for Short Sounding Pipe with Alarm CBM1065-81
Design Standard: CBM1061-85, JIS F3019-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body-0.3Mpa, Seat-0.2Mpa
Main Material:
1-Body: Bronze/Brass
2-Bonnet:Bronze/Brass
3-Disc: Bronze/Brass
4-Stem: Brass (C3771BD)
5-Gasket: NBR
6-Lever: Cast Iron
Main Size List(mm):
|
Size |
d |
d4 |
H1 |
L |
| 40 |
G1-1/2 |
G1-1/2 |
54 |
160 |
|
50 |
G2 |
G2 |
60 |
160 |
