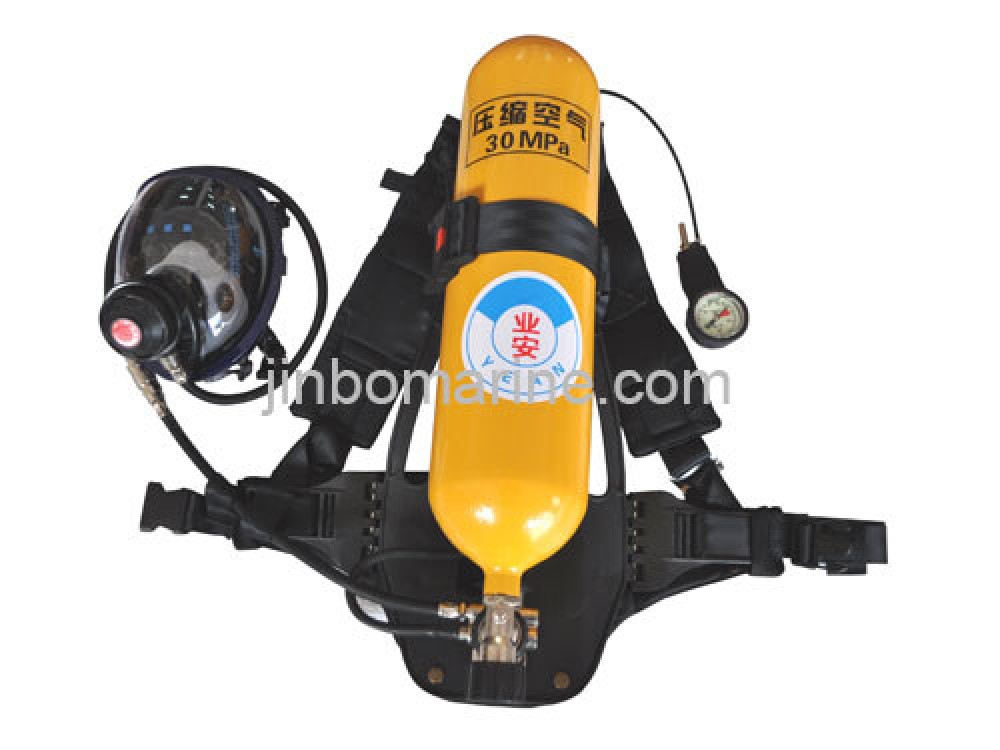

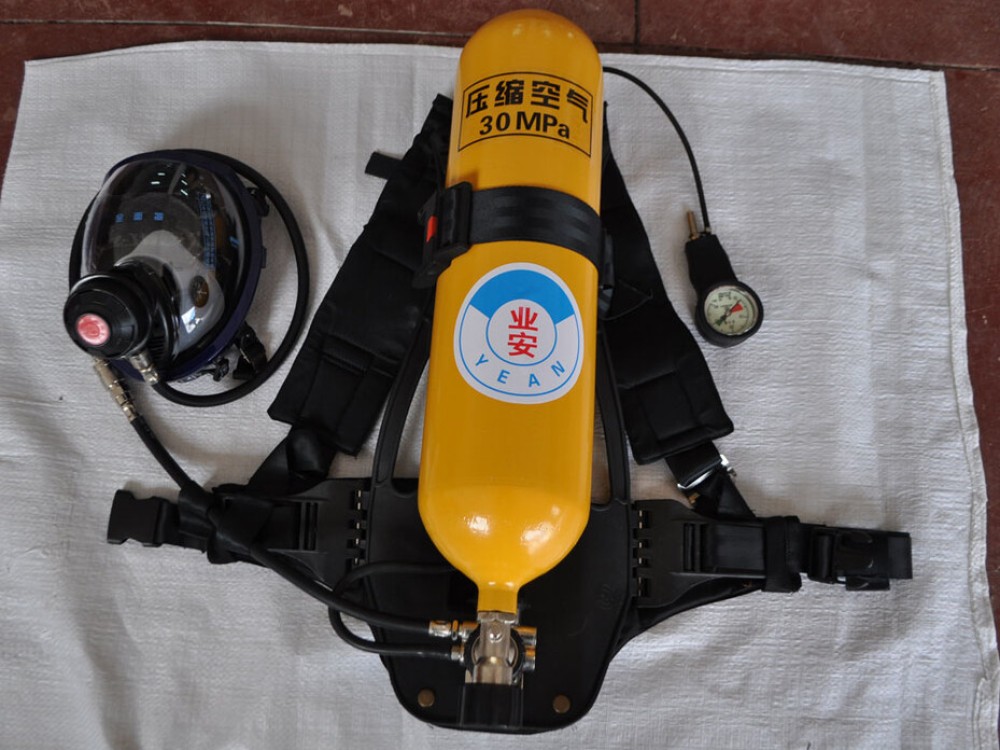

Self Contained Breathing Apparatus
- Category:Other Fire-Fighting Equipment
- Material:steel cylinder ,carbon fiber composite cylinder
- Standards:SOLAS standard
- Certificate:CCS / EC
- Fob Price:Get Latest Price Now
- Place of Origin:China
Details
China Self Contained Breathing Apparatus:
Self contained breathing apparatus is a new model of self supporting open respirator, which is widely used in fire-fighting,chemistry industry,fired boat,petroleum industry,smelt,mine and transportation. It is a high-performance respiratory positive device designed for fireman and special trained person when trapper in the situation with smoke、pollution、hot vapor and/or hypoxygen, to perform the extinguish, rescue and ambulance.
Type:
5 liter steel cylinder air breathing apparatus
6 liter steel cylinder air breathing apparatus

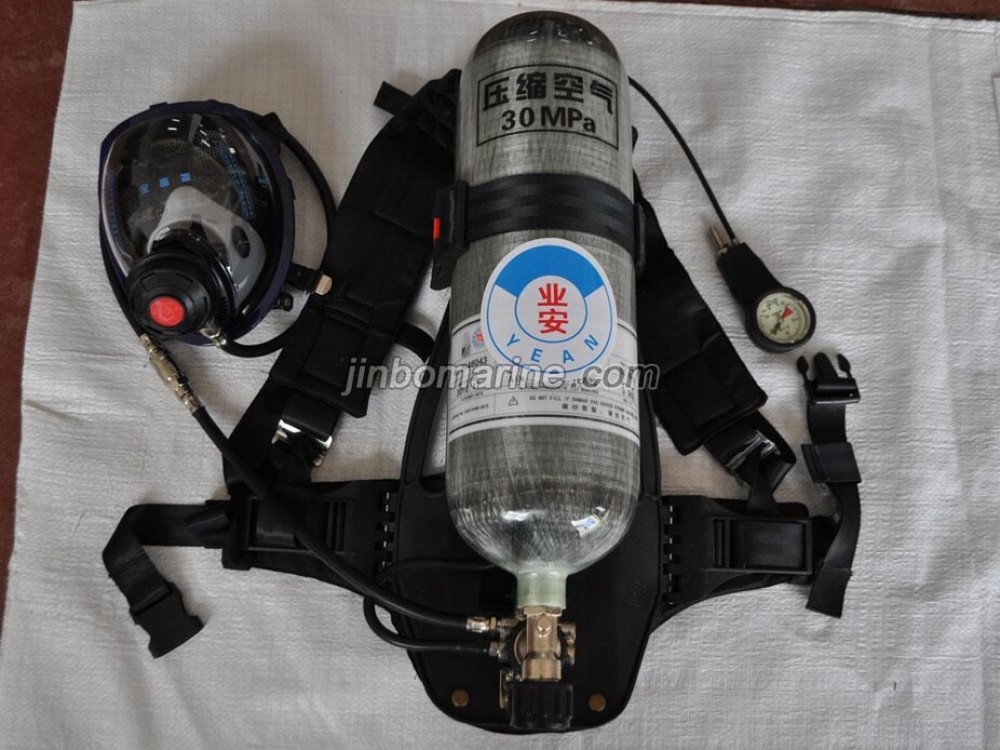

6.8 liter carbon fiber composite cylinder air breathing apparatus
Condition:
a.The atmosphere is polluted by smoke、poisonous gas or/and hot vapor, or in the
hypoxygen situation.
b.In the atmosphere of -30℃～＋60℃, at 0~100% relative humidity and 70KPa～125 KPa atmosphere pressure.
Main performance index:
|
Model |
Working |
Volume (L) |
Air Deposit (L) |
Using |
Alarm |
Weight (Kg) |
Packing (mm) |
|
RHZK 5/30 steel cylinder SCBA |
30 |
5 |
1500 |
40～50 |
5.5±0.5 |
≤12 |
755×460×290 |
|
RHZK 6/30 steel cylinder SCBA |
30 |
6 |
1800 |
50～60 |
5.5±0.5 |
≤14 |
755×460×290 |
|
RHZKF6.8/30 carbon fiber composite cylinder SCBA |
30 |
6.8 |
2040 |
50～60 |
5.5±0.5 |
≤10 |
755×460×290 |
The equipment is a self-contained compressed air breathing apparatus (SCBA).
It is open-circuit type in that the exhaled air is released to the ambient atmosphere without being circulated in the breathing system
Functions :
It provides air for firemen to breathe and work in oxygen-deficient atmosphere or toxic environment
It has been certified to protect firemen from chemical, biological, radiological and nuclear hazards
