Self-Locking Jack

Request a Quote Not what you need, please send your RFQs via Email.

Details

China Self-Locking Jack:

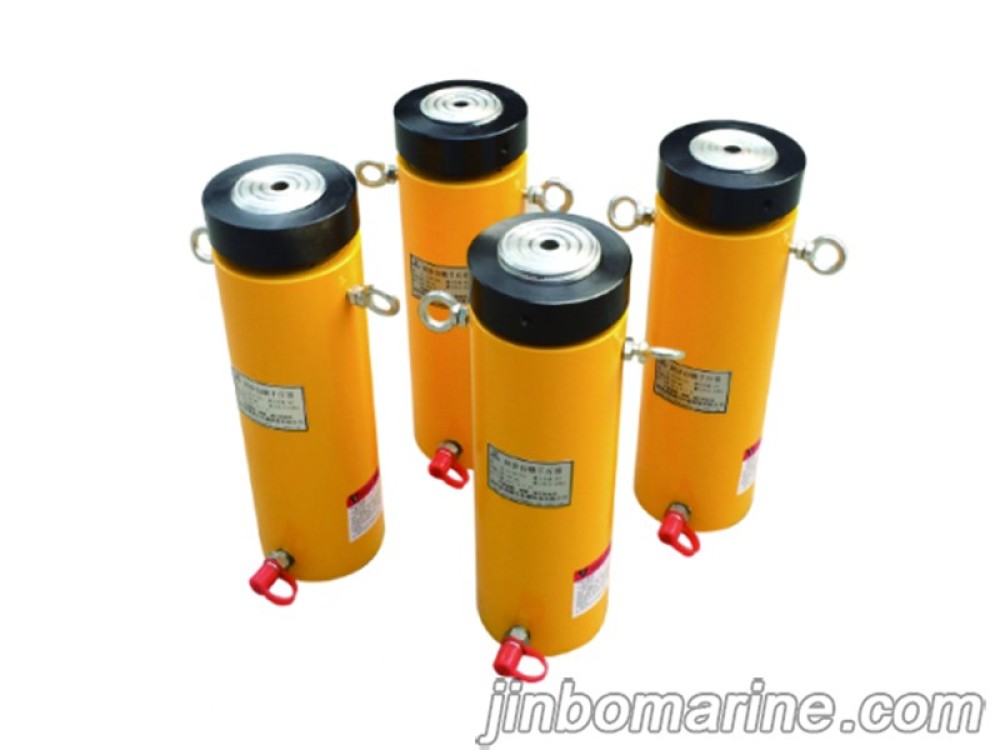

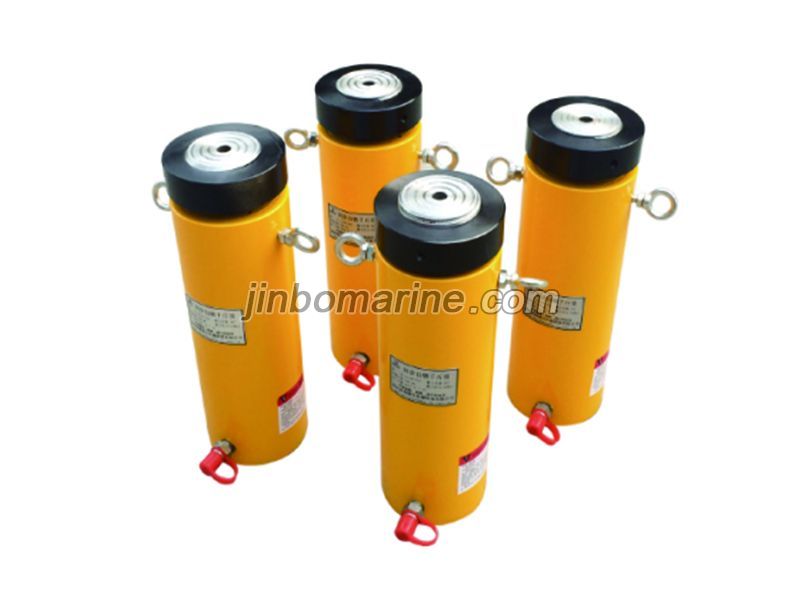

Self-Locking Jack

Product features:

Self-locking jacks are mainly used in places where heavy objects need to be supported for a long time. It can still support heavy objects when the oil pressure is removed, and it is safe and reliable. It can be used for underwater, single-acting,load retraction, self-locking nut makes the load more secure,especially in large-scale projects,it is easy to operate control and hydraulic jack,designed with safety pressure maintaining device,built-in pressure relief valve to prevent overload, to protect Jack for safe operation. The connection of the device adopts high-pressure hose and threaded joint connection, which is fast to use and overcomes the shortcomings of oil leakage of fast traditional joints. It is mainly used for equipment installation in electric power, construction,machinery manufacturing,mining,railway bridges, shipbuilding and other industries. Lifting and dismantling work.

Model T
Capacity
B-A mm
Stroke
cm2
Cylinder area
cm3
hydraulic oil capacity
A mm
Height
B mm
Max Height
mm
Diameter
kg
Weight
CLL55-50 55 50 71.3 356.5 164 214 125 16
CLL55-100 100 713 214 314 21
CLL55-150 150 1069.5 264 414 26
CLL55-200 200 1426 314 514 31
CLL55-250 250 1782.5 364 614 36
CLL55-300 300 2139 414 714 41
CLL100-50 100 50 133.3 666.5 187 237 165 31
CLL100-100 100 1333 237 337 39
CLL100-150 150 1999.5 287 437 48
CLL100-200 200 2666 337 537 57
CLL100-250 250 3332.5 387 637 65
CLL100-300 300 3999 437 757 74
CLL150-50 150 50 198 990 209 259 205 53
CLL150-100 100 1980 259 359 66
CLL150-150 150 2970 309 459 78
CLL150-200 200 3960 359 559 92
CLL150-250 250 4950 409 659 105
CLL150-300 300 5940 459 759 118
CLL200-50 200 50 266.5 1332.5 243 293 250 83
CLL200-150 150 3997.5 343 493 118
CLL200-250 250 6662.5 443 693 153
CLL280-50 280 50 366.4 1832 249 299 275 116
CLL280-150 150 5496 349 499 163
CLL280-250 250 9160 449 699 210
CLL350-50 350 50 457 2285 295 345 310 173
CLL350-150 150 6855 395 545 163
CLL350-250 250 11425 495 745 293
CLL430-50 430 50 559 2795 335 385 350 251
CLL430-150 150 8385 435 585 327
CLL430-250 250 13975 535 785 403
CLL565-50 565 50 730 3650 375 425 400 447
CLL565-150 150 10950 475 625 563
CLL565-250 250 18250 575 825 680
CLL660-50 660 50 857 4285 395 445 430 447
CLL660-150 150 12855 495 645 563
CLL660-250 250 21425 595 845 680
CLL880-50 880 50 1179 5895 455 505 505 711
CLL880-150 150 5895 555 705 871
CLL880-250 250 29475 655 905 1031
CLL1080-50 1080 50 1465 7325 495 545 560 951
CLL1080-150 150 21975 595 745 1143
CLL1080-250 250 36625 695 945 1335
