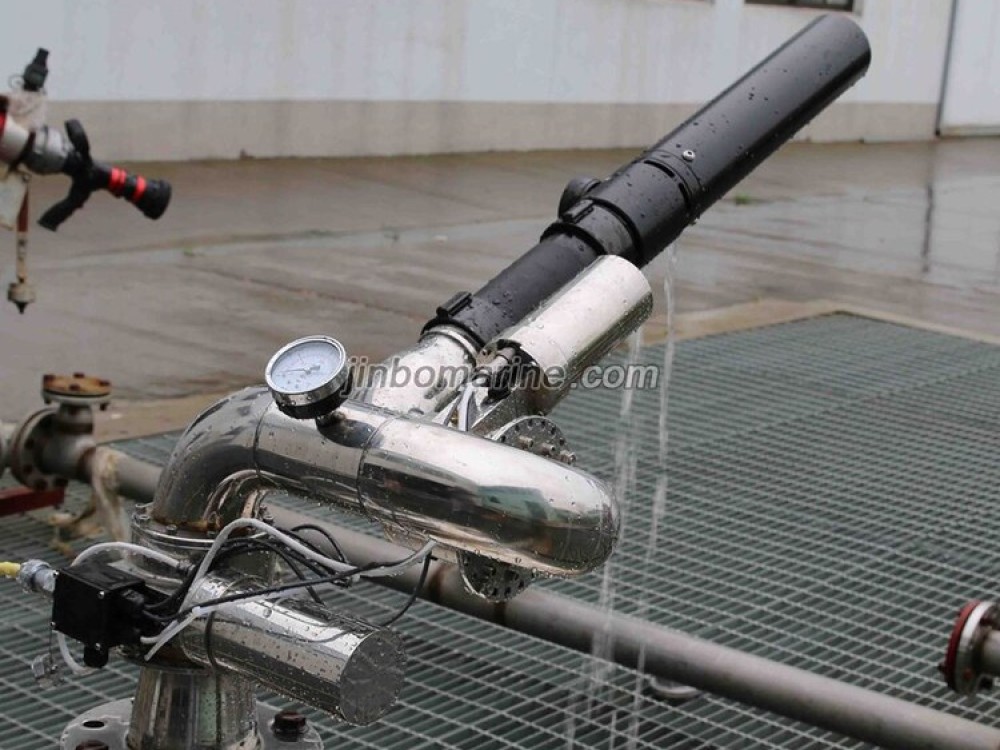

Self Suction Type Electrical Foam And Water Fire Monitor 64L/S

Type: JBPLKD64
Flow Range: 64L/S（1000GPM）
Working Pressure: 10 bar~ 12 bar
Max Reach @ Max Flow: 80m（water）and 75M (foam)
Max. Range of motion: +/-90°Vert , 350°Rot
Turning speed：18 degrees/sec
Material (body)：304L Stainless Steel, 316L Stainless Steel is also available
Material (Gear)：bronze
Material (nozzle)：Aluminum
power supply：12/24VDC or 100-230VAC
Power Consumption normal/Max：50W/150W
Weight incl. nozzle：appox 26kg
Cable Length Monitor- CPU：5m
Cable Length Joystick-CPU：5m standard/ other length available
Pump requirement for minimum performance：64L/S@ 10 bar
Pipe dimensions for installation: 3 Inch
Monitor Inlet ：3” male BSP or DN100 flange
Monitor Outlet：2.5 inch (65mm)
Water way size: 3 inch
PACKAGE: SS MONITOR, NOZZLE, CONTROL BOX, JOYSTICK, CABLES, WIRELESS CONTROL (OPTIONAL)
