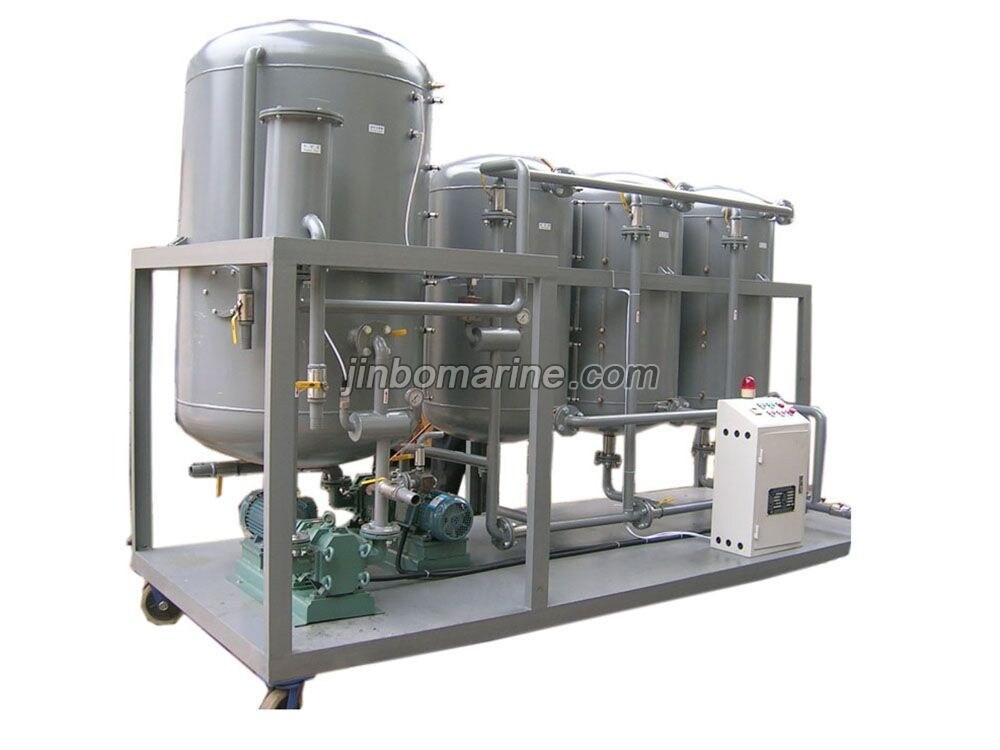

SFL Series Oil Water Separation System

Request a Quote Not what you need, please send your RFQs via Email.

Details

China SFL Series Oil Water Separation System:

YSFL series of oil and water separation system:

This device used for Oilfield reinjection water treatment water filtration; filtration treatment and advanced treatment of circulating cooling water of power plant, oil refinery and petrochemical plant; advanced treatment of sewage treatment plant refinery; metallurgical industry, coal industry for the treatment of filtration and drainage; the other has a large quantity of water and oil and water treatment industry with high precision.

Technical features:

1. The equipment is used to separate the oil and water mixture, purify the water and remove the impurities, and does not affect the composition and the performance of the oil and water. It is a simple, safe and reliable operation, which has the advantages of quick filtration, high efficiency oil and water separation, oil gathering, water purification and back flushing.

2. Rapid and efficient u oil-water separation. The utility model has the advantages of high efficiency, high quality, high speed, high efficiency, and the separation of oil and water can be quickly and efficiently by adopting a stainless steel porous structure disperser, a corrugated oil bead coalescence device with a corrugated structure.

3. water purification system uses three levels of filtration, the deep level of the water for the deep oil removal, water purification, water quality standards to achieve.

4. Backwashing device in water purification system. The utility model can be used to clean the hydrophilic and hydrophobic fiber filter material in time, and the use effect of the filter material is prolonged and the service life is prolonged.

The equipment is equipped with mobile casters, can quickly replace the job site.

5.equipment with perfect protection device. Through the implementation of the original equipment pressure, power, overpressure, under pressure, such as the implementation of a comprehensive protection, can effectively guarantee the normal operation of equipment to prevent accidents.

Technical data:

Item Unit YSFL-50 YSFL-100 YSFL-200 YSFL-300 YSFL-400 YSFL-500
Flow Rate L/min 50 100 200 300 400 500
Working Presure Mpa ≤0.4
Noise dB(A) 65~75
Power supply / 380V 50HZ
Total power KW 0.05
Inlet (Outlet) diameter DN 32 40 50 65 80 100
Water content % ≤2
Oil content mg/L ≤10
