SGLL type duplex horizontal oil cooler
- Category:Heat Exchanger
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
Description:

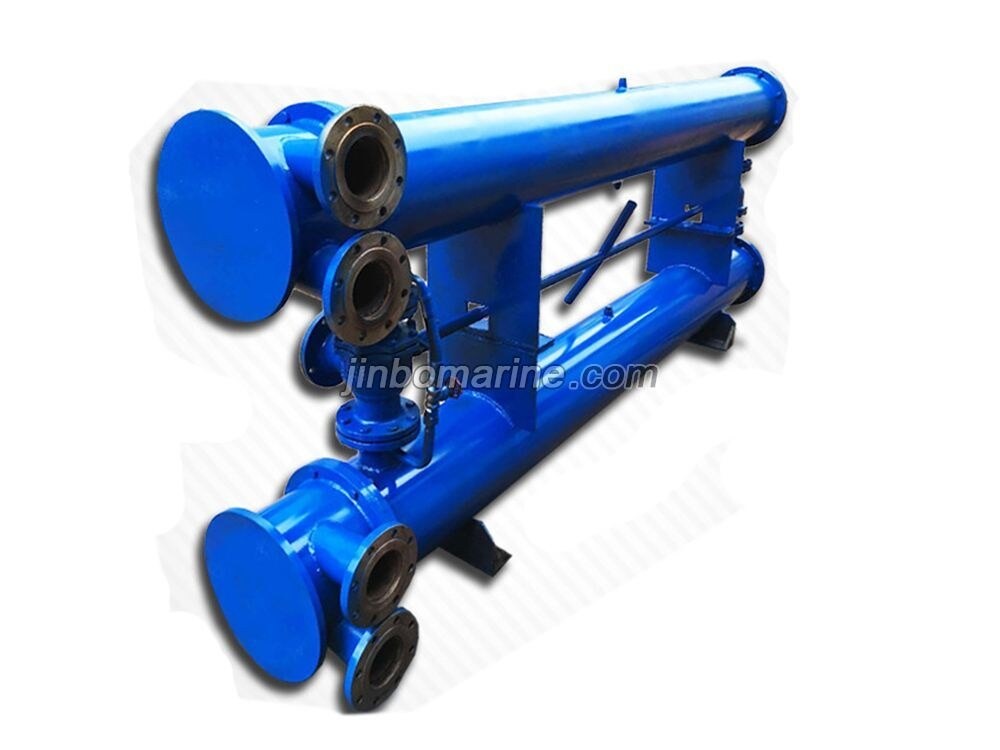

The cooler with a double structure, composed of oil cooler and three-way valve device two of the same size, a job, a spare, the cooling load of each cooler can take the whole system, a fixed tube plate, a floating head, removable bundle and water box cover, convenient cleaning, inspection and maintenance in the process of operation. Cooler material, according to the use of the site, the water system conditions can be a variety of options.
| Model |
Area of cooling surface m2 |

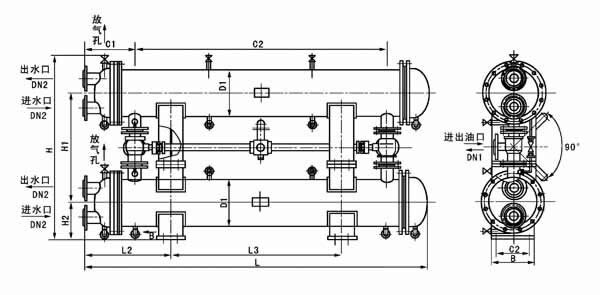

DN1 | DN2 | D1 | L | L3 | C | H2 | e | L2 |
| SGLL4-12/1.0 | 12 | 65 | 65 | 325 | 1555 | 660 | 860 | 262 | 870 | 497 |
| SGLL4-16/1.0 | 16 | 65 | 65 | 325 | 1960 | 1065 | 1365 | 262 | 870 | 497 |
| SGLL4-20/1.0 | 20 | 80 | 65 | 325 | 2370 | 1475 | 1775 | 262 | 870 | 497 |
| SGLL4-24/1.0 | 24 | 80 | 65 | 325 | 2780 | 1885 | 2175 | 262 | 870 | 497 |
| SGLL4-28/1.0 | 28 | 80 | 65 | 325 | 3190 | 2295 | 2585 | 262 | 870 | 497 |
| SGLL4-35/1.0 | 35 | 100 | 100 | 426 | 2480 | 1232 | 1692 | 313 | 890 | 730 |
| SGLL5-40/1.0 | 40 | 100 | 100 | 426 | 2750 | 1502 | 1962 | 313 | 890 | 730 |
| SGLL5-45/1.0 | 45 | 125 | 100 | 426 | 3020 | 1772 | 2202 | 313 | 890 | 725 |
| SGLL5-50/1.0 | 50 | 125 | 100 | 426 | 3290 | 2042 | 2472 | 313 | 976 | 725 |
| SGLL5-60/1.0 | 60 | 125 | 100 | 426 | 3830 | 2582 | 3012 | 313 | 976 | 725 |
| SGLL6-80/1.0 | 80 | 200 | 200 | 616 | 3160 | 1555 | 2015 | 434 | 1100 | 935 |
| SGLL6-100/1.0 | 100 | 200 | 200 | 616 | 3760 | 2155 | 2615 | 434 | 1240 | 935 |
| SGLL6-120/1.0 | 120 | 200 | 200 | 616 | 4360 | 2755 | 3215 | 434 | 1240 | 935 |
| Model |
Area of cooling
surface m2 |
Flow L/min |
Design Pressure Oil/Water (Mpa) |
Oil Temperature ℃ |
Inlet temperature ℃ |
Medium viscosity cSt |
Oil temperature
drop ℃ |
Water temperature
rise ℃ |
Oil/Water |
Heat exchange coefficient W/m2℃ |
|
| Inlet | outlet | ||||||||||
| SGLL4-12/1.0 | 12 | 250-300 | 0.6/1.0 | Set by user requirements: standard 55, highest 62 | Set by user requirements: standard 55, highest 62 | Set by user requirements: Design 30 | Machine oil 10-320, turbine oil 20-50 | Standard 10, greater than 12 shall be calculated by type selection | Cheng 2-3, length diameter ratio 7, four, six, 3-6 | 1:1.5 | ＞230 |
| SGLL4-L-12/1.0 | |||||||||||
| SGLL4-16/1.0 | 16 | 300-400 | |||||||||
| SGLL4-L-16/1.0 | |||||||||||
| SGLL4-20/1.0 | 20 | 350-450 | |||||||||
| SGLL4-L-20/1.0 | |||||||||||
| SGLL4-24/1.0 | 24 | 450-500 | |||||||||
| SGLL4-L-24/1.0 | |||||||||||
| SGLL4-28/1.0 | 28 | 450-550 | |||||||||
| SGLL4-L-28/1.0 | |||||||||||
| SGLL4-35/1.0 | 35 | 500-600 | |||||||||
| SGLL4-L-35/1.0 | |||||||||||
| SGLL5-40/1.0 | 40 | 600-750 | |||||||||
| SGLL5-L-40/1.0 | |||||||||||
| SGLL5-45/1.0 | 45 | 650-800 | |||||||||
| SGLL5-L-45/1.0 | |||||||||||
| SGLL5-50/1.0 | 50 | 700-850 | |||||||||
| SGLL5-L-50/1.0 | |||||||||||
| SGLL5-60/1.0 | 60 | 800-1100 | |||||||||
| SGLL5-L-60/1.0 | |||||||||||
| SGLL6-80/1.0 | 80 | 1000-1250 | |||||||||
| SGLL6-L-80/1.0 | |||||||||||
| SGLL6-100/1.0 | 100 | 1100-1500 | |||||||||
| SGLL6-L-100/1.0 | |||||||||||
| SGLL6-120/1.0 | 120 | 1400-1600 | |||||||||
| SGLL6-L-120/1.0 | |||||||||||
| SGLL6-150/1.0 | 150 | 1500-2000 | |||||||||
| SGLL6-L-150/1.0 | |||||||||||
