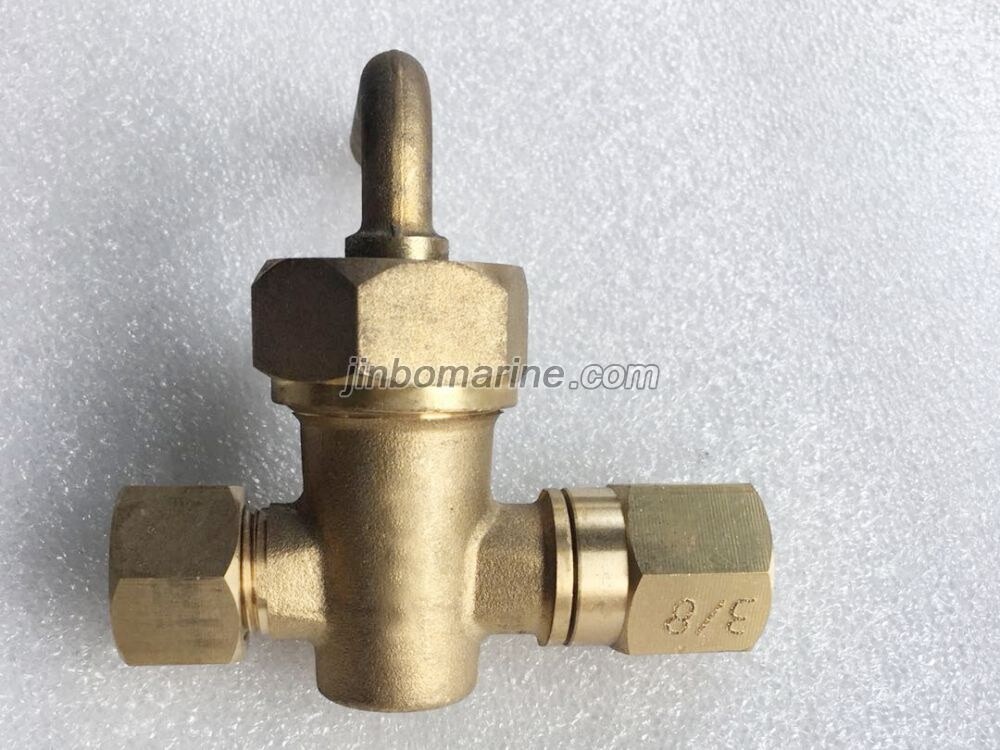

Shipbuilding Bronze 20K Pressure Gauge Cock JIS F7343
PDF Datasheet
We can supply according to your requirement.
China Shipbuilding Bronze 20K Pressure Gauge Cock JIS F7343:
Design and Manufacturing Standard: JIS F7343
Max Working Pressure； 1.96Mpa (20kgf/cm2)
Hydraulic Inspection:
1. Waterright inspection for plug: 2.16Mpa (22kgf/cm2)
2. Hydraulic Inspection for body: 2.94Mpa (30kgf/cm2)
Suitable Medium: Steam, Water, Fuel Oil, Lub oil.
Main Size:
| IMPA | Size | Union Nut Thread | For Copper Pipe | Weight(kgs) |
| 751651 | 3/8" | 3/8 PF | Uion | 0.41 |
| 751652 | 3/8" | Bite type Union | ||
| 751653 | 1/2" | 1/2 PF | Uion | 0.44 |
| 751654 | 1/2" | Bite type Union |
