SICI(c)/SIOI(c) Fire Resistant TelephoneCable 250V(Collective Screen)

Request a Quote Not what you need, please send your RFQs via Email.

Details

China SICI(c)/SIOI(c) Fire Resistant TelephoneCable 250V(Collective Screen):

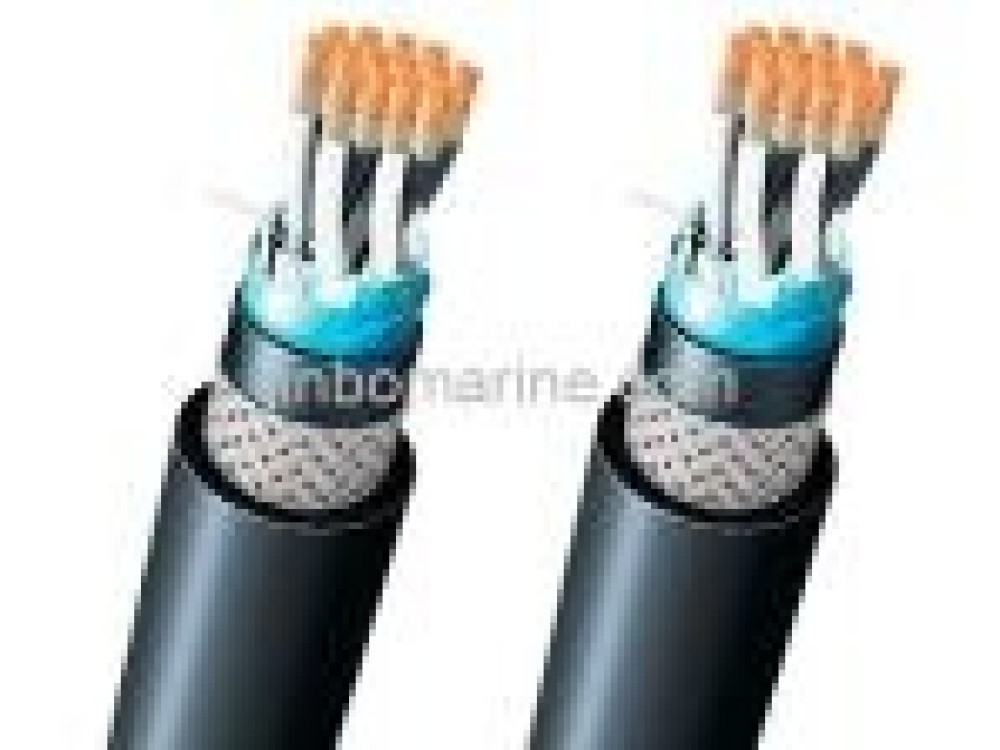

SICI(c) and SIOI(c) Marine Telephone and Instrument Cable are collective screen and Fire Resistant cable.

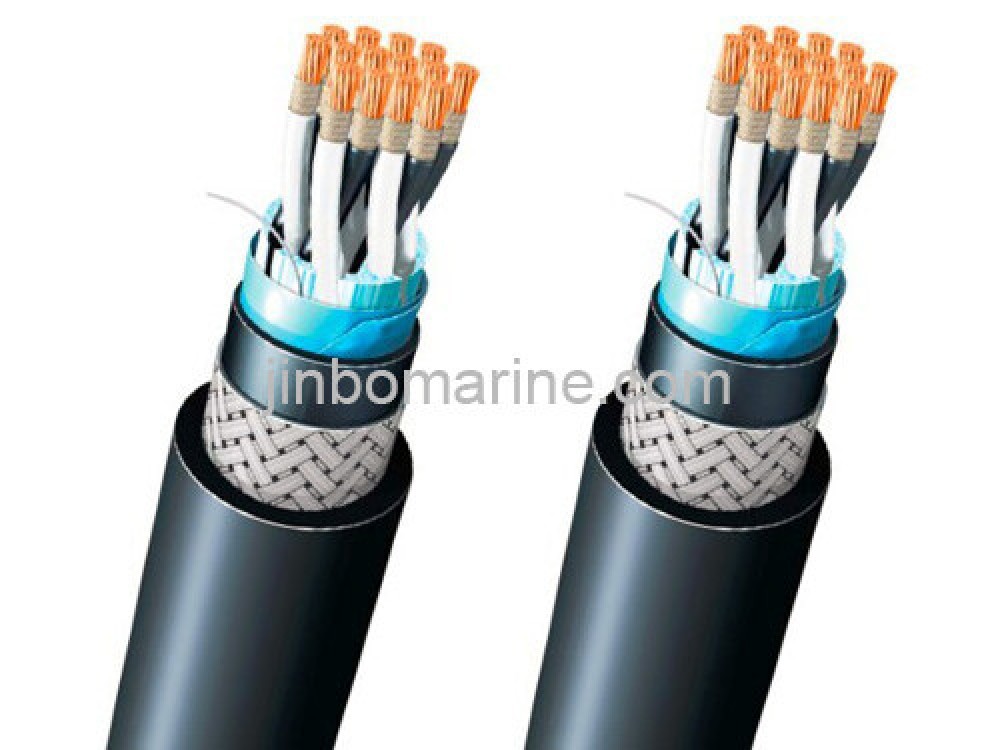

Cable Construction

Conductor: Tinned Copper. IEC 60228 Class 2

Mica Tape

Insulation : XLPE Insulation

Collective Screen (c): Pair and triad laid up and collective screened by Aluminum Polyester tape with tinned copper wire

Inner Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Armour : Galvanized Wire Braided/Tinned Copper Wire Braied

Outer Sheath : Halogen-free Thermoplastic Polyolefin(SHF1)

Standards

Design : IEC 60092-350, 376

Insulation Material : IEC 60092 -351

Sheath Material : IEC 60092-359

Flammability: IEC 60332-1 & IEC 60332-3 Category A

Halogen--free: IEC60754-1, IEC60754-2

Smoke Emission: IEC 61034-1, IEC61034-2

Cores & Size

Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)

1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)

Size (sqmm): 0.75, 1, 1.5, 2.5

Feature

Halogen-free, Low Smoke, Fire-resistant

Application

The cable is fixed installation on ships and offshore units.
