Single Acting Jack

Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

China Single Acting Jack:

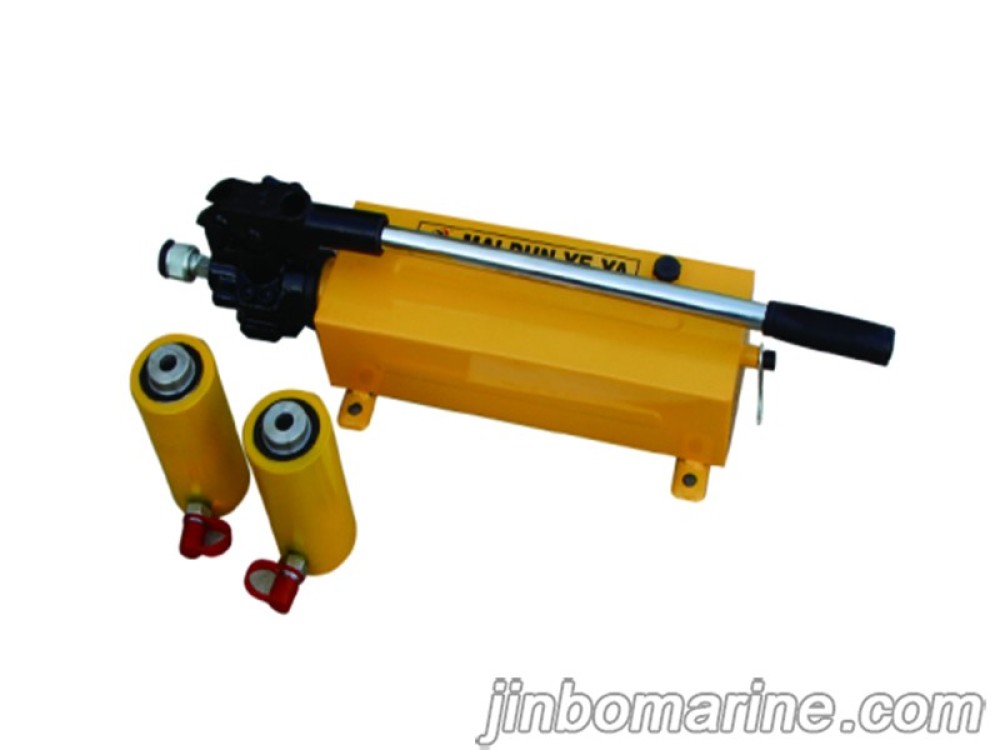

Single Acting Jack

Product features:

Can be used anywhere.

Single-acting design, spring return,easy to use.

High-strength alloys are durable.

Equipped with a dust ring to reduce pollution and extend the life of the hydraulic cylinder.

Some models have handles for easy movement.

All models include quick connectors and dust caps.

Model T
Capacity 		mm
Stroke 		mm
Height 		mm
Max Heigh 		mm
Diameter 		mm
rod diameter 		mm
Diameter 		kg
Weight
RC-50 5 16 41 57 40 36 55 1
RC-51 25 90 115 55 1
RC-53 76 145 221 55 1.5
RC-55 127 196 323 55 1.9
RC-57 178 253 431 55 2.4
RC-59 232 304 536 55 2.8
RC-101 10 25 80 105 45 41 60 1.8
RC-102 54 111 165 60 2.3
RC-104 105 161 266 60 3.3
RC-106 156 238 394 60 4.4
RC-108 203 288 491 60 5.4
RC-1010 257 339 596 60 6.4
RC-1012 305 390 695 60 6.8
RC-1014 356 441 797 60 8.2
RC-151 15 25 104 129 55 46 70 3.3
RC-152 51 129 180 70 4.1
RC-154 102 180 282 70 5
RC-156 152 252 404 70 6.8
RC-158 203 302 505 70 8.2
RC-1510 254 353 607 70 9.5
RC-1512 305 404 709 70 10.9
RC-1514 356 455 811 70 11.8
RC-251 25 25 120 145 70 62 90 5.9
RC-252 51 145 196 90 6.4
RC-254 102 196 298 90 8.2
RC-256 159 253 412 90 10
RC-258 210 304 514 90 12.3
RC-2510 260 355 615 90 14.1
RC-2512 311 405 716 90 16.3
RC-2514 362 456 81 90 17.1
RC-308 30 210 337 547 80 65 104 18.1
RC-502 50 51 136 187 100 80 127 15
RC-504 102 187 289 127 19.1
RC-506 159 243 402 127 23.2
RC-5013 337 421 758 127 37.7
RC-756 75 156 246 402 125 90 160 29.5
RC-7513 334 452 786 160 59
RC-1006 100 168 267 435 140 100 180 59
RC-10010 260 359 619 180 72.6
