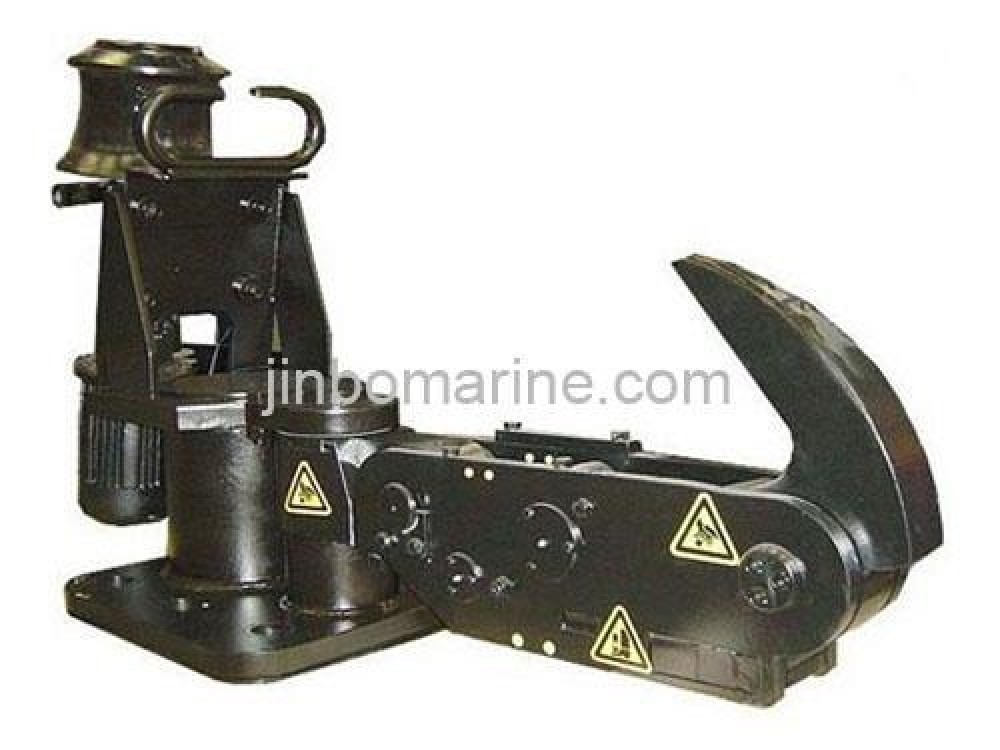

Single Quick Release Mooring Hook
- Category:Quick Release Mooring Hook
- Material:Including Q235-A ,Q345B, 40Cr,35Crmo.The goods can be designed according to your requirements.
- Certificate:CCS,BV, ABS ,DNV,GL,LR etc can be provide.
- Standards:Conform to classification society certificate
- Fob Price:Get Latest Price Now
- Place of Origin:China
- Attachment:[pdf]Single Quick Release Mooring Hook.pdf
Details
Brief description:
Popular model:40,60,75,100,125 and 150 tons.
Type:Single mooring hook
Mooring hook can be supplied as single,
double, triple, quadruple and sextuple hook assembly.
The hook mainly mounted onto concrete or steel deck structures.
Material:Including Q235-A ,Q345B, 40Cr,35Crmo.The goods can be designed according to your requirements.
Certificate:CCS,BV, ABS ,DNV,GL,LR etc can be provide.
Main technical hook:
quantity of hook body for one handle: 1 hook
operating force by handle: <150N
swing angle of hook body in horizontal: 45~90°
swing angle of hook body in vertical: 45°
Technical parameter:
The surface of part must be finishing,can’t have burr,short mark,sharp corner,split.
Scope of Certificate and Report Supply
ABS Certificate ,Inspection Release Note, Certificate of Conformity, Test and Inspection Plan, WPS, PQR, Welder Qualifications, Weld Map, NDT Report, Operator Qualification, Material Certificate, Dimensional Report, FAT Report, Motor Certificate Paint Inspection Report

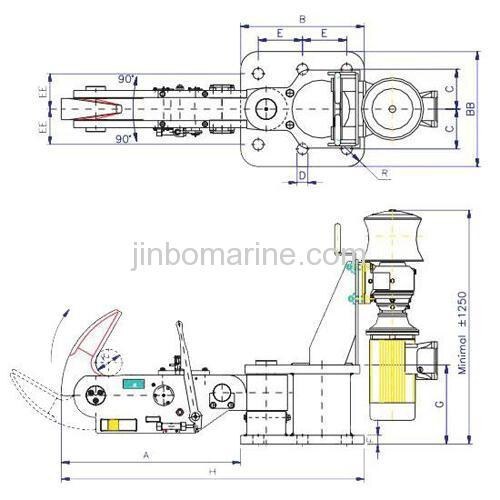

Specification:
|
Product No. |
Safe working load(Kn) |
Weight(kg) |
A |
B |
BB |
C |
D |
E |
EE |
F |
G |
H |
K |
R |
X |
|
SHA-001 |
400 |
304 |
668 |
600 |
600 |
225 |
54 |
225 |
225 |
35 |
370 |
1268 |
96 |
75 |
4*M48 |
|
SHA-002 |
600 |
512 |
873 |
650 |
650 |
235 |
54 |
235 |
200 |
45 |
407 |
1523 |
130 |
90 |
6*M48 |
|
SHA-003 |
750 |
587 |
923 |
650 |
650 |
225 |
62 |
225 |
200 |
45 |
417 |
1573 |
130 |
100 |
6*M56 |
|
SHA-004 |
1000 |
792 |
1014 |
700 |
650 |
225 |
62 |
250 |
200 |
50 |
447 |
1714 |
150 |
100 |
6*M56 |
|
SHA-005 |
1250 |
887 |
1085 |
700 |
650 |
225 |
70 |
250 |
200 |
55 |
479 |
1785 |
150 |
100 |
6*M64 |
|
SHA-006 |
1500 |
1253 |
1255 |
700 |
650 |
225 |
78 |
250 |
195 |
55 |
499 |
1955 |
150 |
100 |
6*M72 |
