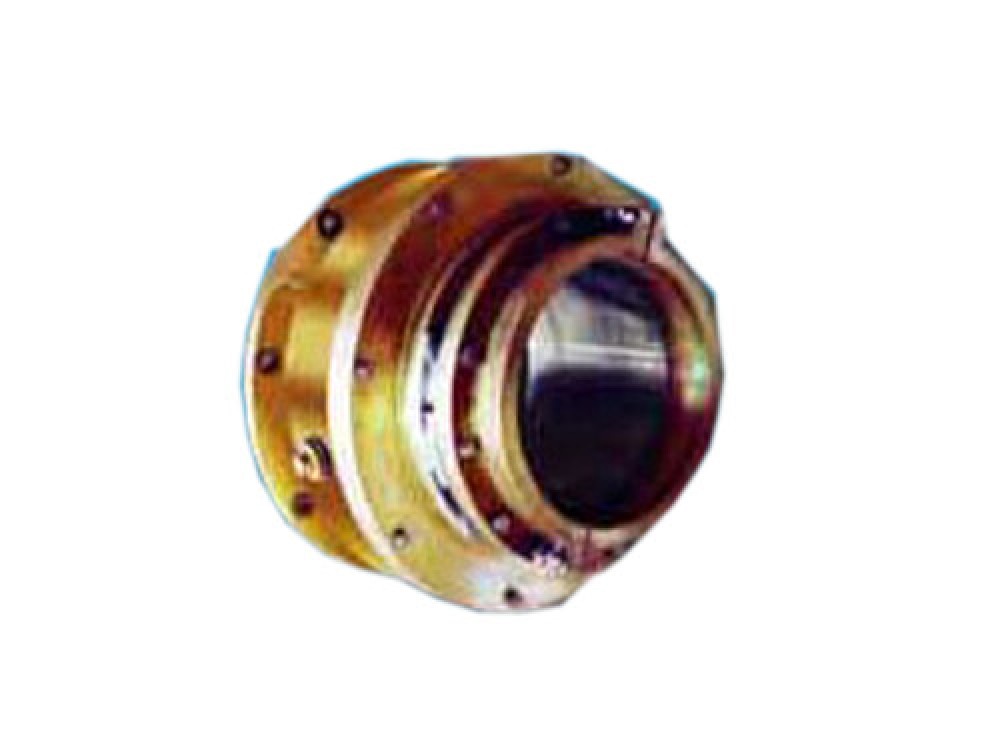

SMA-II /IIB /SMC Type Water Lubrication End Face Seal

  • Category:Stern Tube Seal
  • Certificate:CCS, BV, ABS, GL, LR, DNV, NK,RINA, KR,IRS
  • Packing Details:Wooden Box
  • Delivery Time:15 Days
  • Fob Price:Get Latest Price Now
  • Place of Origin:China
Request a Quote Not what you need, please send your RFQs via Email.
Download this page

Details

Technical Specification

It is suitable for kinds of vessels that have a large stern shaft diameter and axial vibration and whose lubricating medium is water.

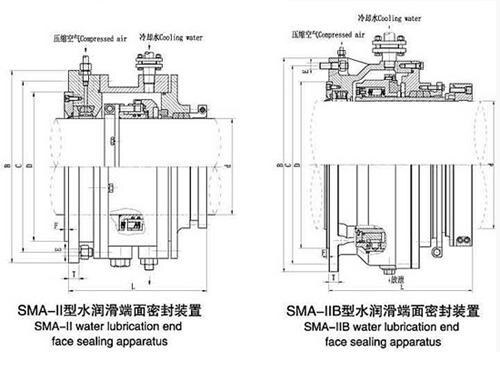

Specifications Dimensions (mm)
B C D L T E F
55 250 210 165 300 18 8 M10 10
75 265 225 180 300 18 8 M10 10
95 280 240 195 300 18 8 M10 10
115 300 260 215 340 18 8 M10 10
135 330 280 235 340 20 8 M12 10
155 350 300 255 340 20 8 M12 10
175 260 320 275 340 20 8 M12 10
185 450 390 230 298 25 8 M20 10
195 420 355 305 370 25 8 M16 10
200 460 420 350 370 25 8 M20 10
215 440 375 325 370 25 8 M16 10
230 460 395 345 370 25 8 M16 10
250 480 415 355 370 25 8 M16 10
255 480 440 370 370 28 8 M20 10
260 480 440 370 370 25 8 M20 10
270 530 440 385 370 25 8 M20 10
280 500 440 400 330 25 8 M20 10
290 550 460 405 370 25 8 M20 10
302 550 500 425 460 25 8 M20 10
310 580 485 425 460 25 8 M20 10
325 590 510 445 460 25 8 M20 12
345 620 540 465 460 25 8 M20 12
354 670 620 570 460 25 8 M20 12
360 670 590 485 460 25 8 M20 12
365 670 570 485 460 25 8 M24 12
385 700 595 515 520 30 8 M24 12
386 650 595 510 520 30 8 M20 12
402 680 630 530 480 30 8 M20 12
405 680 630 530 455 30 8 M24 12
425 740 635 555 520 30 8 M24 12
445 715 655 575 495 30 8 M24 12
465 735 675 595 495 30 8 M24 12
480 800 700 615 520 30 12 M24 15
490 750 700 620 500 30 12 M20 15
500 840 720 635 520 30 12 M24 15
520 800 750 680 520 30 12 M20 15
530 800 750 700 520 30 8 M20 15
540 880 76 675 520 30 12 M24 15
550 900 780 695 520 30 12 M24 15
570 930 800 715 520 30 12 M24 15
590 950 820 735 580 30 12 M24 15
610 950 840 755 580 30 12 M24 15
630 970 870 775 580 30 12 M30 20
650 990 890 795 580 30 12 M30 20
670 1010 910 815 580 30 12 M30 20
690 1030 930 835 580 30 12 M30 20
710 1050 950 855 620 30 12 M30 20
730 1070 970 875 620 30 12 M30 20
750 1090 990 895 620 30 12 M30 20
760 1120 1010 915 620 30 12 M30 20
780 1140 1030 935 620 30 12 M30 20
800 1160 1050 955 620 30 12 M30 20
