Snatch Blocks HL Series

Request a Quote Not what you need, please send your RFQs via Email.

Details

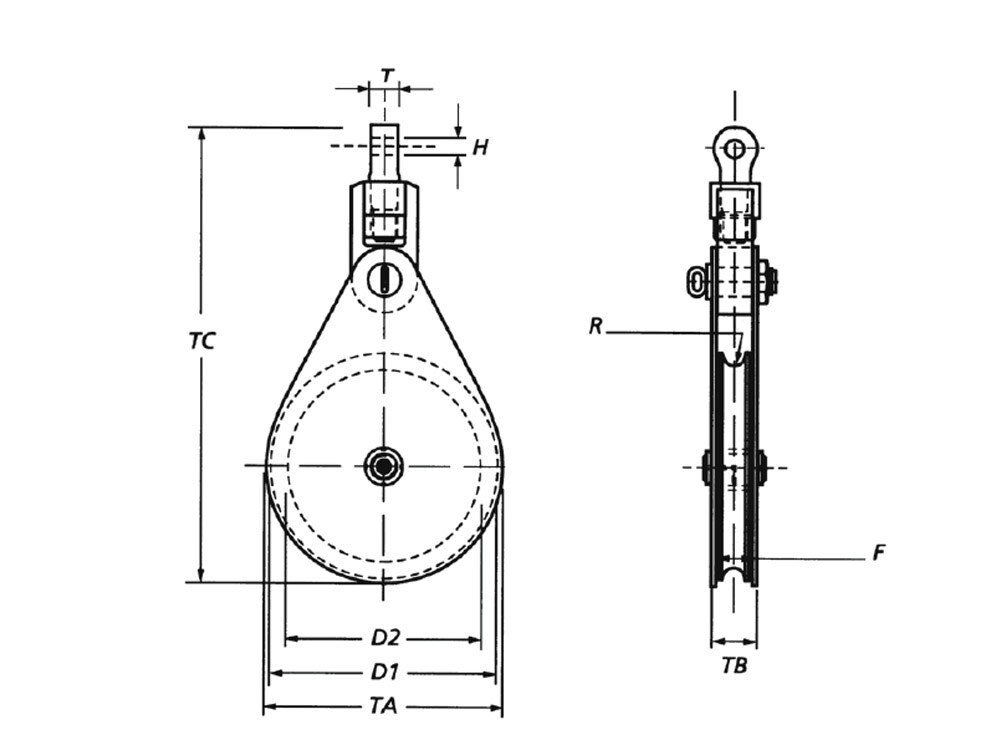

Drawing:

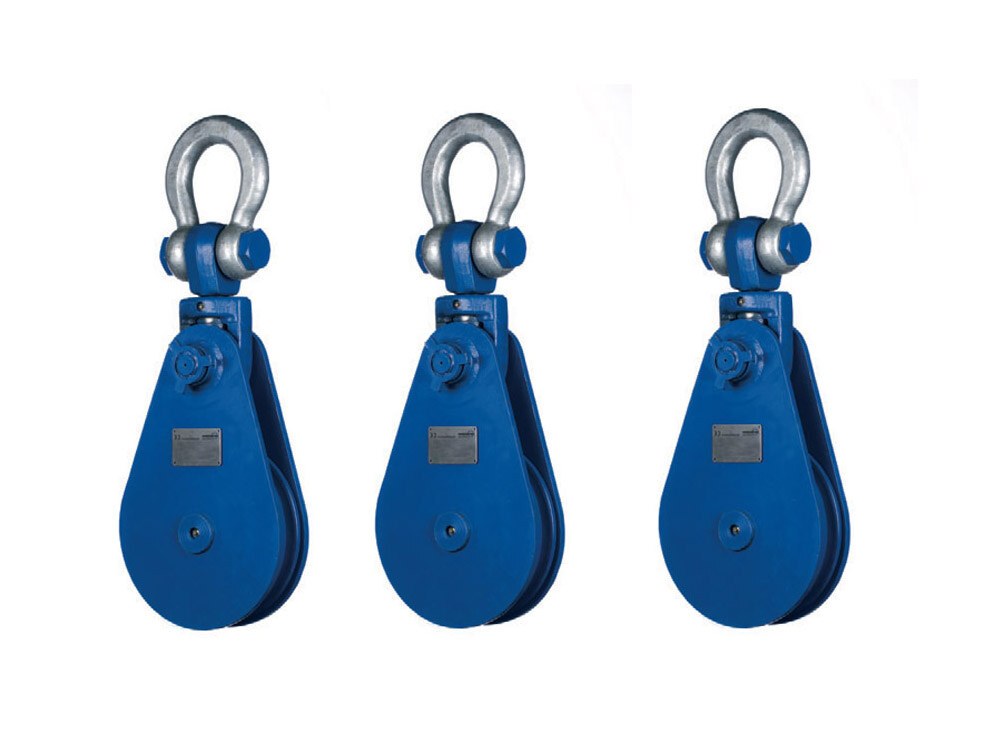

Picture:

Specification:

stock no. will(t) wire up to (mm) bearing dimensions(mm) weight(kg)
D1 D2 F H R T TA TB TC
12.008.20.03 20 26-28 RB 200 150 70 52 14.5 70 212 96 751 70
12.008.20.13 20 26-28 BB 200 150 70 52 14.5 70 212 96 751 70
12.010.20.03 20 26-28 RB 250 190 70 52 14.5 70 262 96 801 81
12.010.20.13 20 26-28 BB 250 190 70 52 14.5 70 262 96 801 81
12.012.20.03 20 26-28 RB 300 240 70 52 14.5 70 312 96 851 95
12.012.20.13 20 26-28 BB 300 240 70 52 14.5 70 312 96 851 95
12.014.20.03 20 26-28 RB 350 290 70 52 14.5 70 362 96 901 100
12.014.20.13 20 26-28 BB 350 290 70 52 14.5 70 362 96 901 100
12.016.20.03 20 26-28 RB 400 340 70 52 14.5 70 412 96 951 110
12.016.20.13 20 26-28 BB 400 340 70 52 14.5 70 412 96 951 110
12.018.30.03 30 28-32 RB 450 390 80 60 16.5 80 462 112 1121 155
12.018.30.13 30 28-32 BB 450 390 80 60 16.5 80 462 112 1121 155
12.020.30.03 30 28-32 RB 500 430 80 60 16.5 80 512 112 1171 180
12.020.30.13 30 28-32 BB 500 430 80 60 16.5 80 512 112 1171 180
12.024.30.03 30 28-32 RB 600 520 80 60 16.5 80 612 112 1271 250
12.024.30.13 30 28-32 BB 600 520 80 60 16.5 80 612 112 1271 250

Product Advantage:

1.Satisfactory Quality
2.Competitive Price
3.Prompt Delivery
4.7x24 hours service

Packing and Delivery:

1. Standard Export Packing or Seaworthy Packing, if you have special requirement, please specify when inquiry.
2. Fast Delivery, delivery time can negotiate when order.

How to Order?

1. Please inform us the model, type or size you need.
2. Please inform us the quantity to make the best price for you.
3. Shipment Model: Air or Sea shipment.
4. Special requirement if any.
