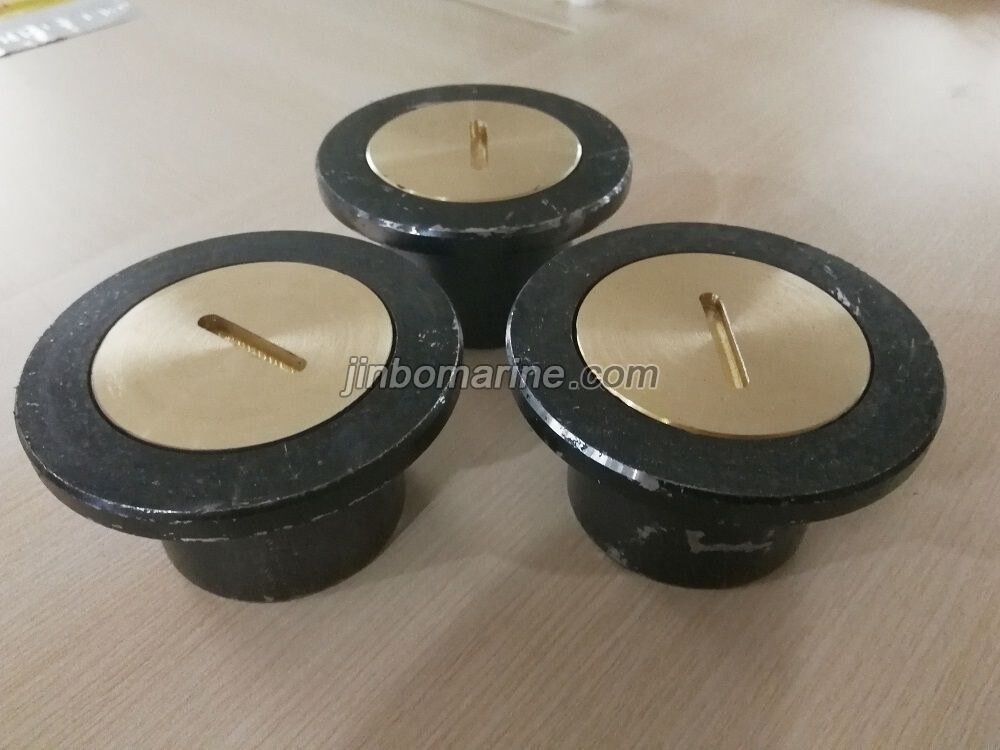

Sounding Pipe Head Flush Type
- Category:CB Marine Sounding Device
- Material:Carbon Steel & Brass
- Standards:CB/T3778-1999, JIS F3002
- Fob Price:Get Latest Price Now
- Place of Origin:China
Request a Quote
Not what you need, please send your RFQs via Email.
Details
China Sounding Pipe Head Flush Type:
Sounding Pipe Head Flush Type can be called as brass plug, sounding head, inject head, and welded on the steel deck as the plug of sounding pipe system.
Sounding Pipe Head must pass the seal test with the water pressure 0.11Mpa, and last for 5minutes.
Standard: CB/T3778-1999, JIS F3002
Material:
1-Body: Carbon Steel
2-Cover: Brass
3-Gasket: NBR
4-Welded Plate: WCB
Main Size List(mm):
| DN | H | D1 | D2 | D3 | a | B | d | D | b | Weight(kgs) |
| 40 | 60 | 64 | 50 | 70 | 34 | 6 | M45*3 | 90 | 6 | 0.96 |
| 50 | 65 | 76 | 62 | 82 | 34 | 6 | M60*3 | 113 | 6 | 1.4 |
| 65 | 70 | 96 | 82 | 102 | 34 | 6 | M76*3 | 125 | 6 | 1.82 |
| 80 | 75 | 109 | 93 | 115 | 55 | 10 | M90*3 | 145 | 10 | 2.81 |
| 100 | 80 | 134 | 118 | 140 | 55 | 10 | M115*3 | 170 | 10 | 4.62 |
| 150 | 100 | 188 | 172 | 194 | 55 | 10 | M165*3 | 210 | 10 | 9.58 |
