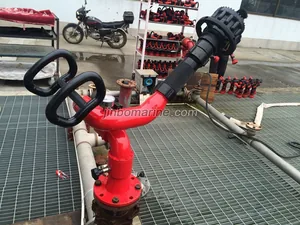

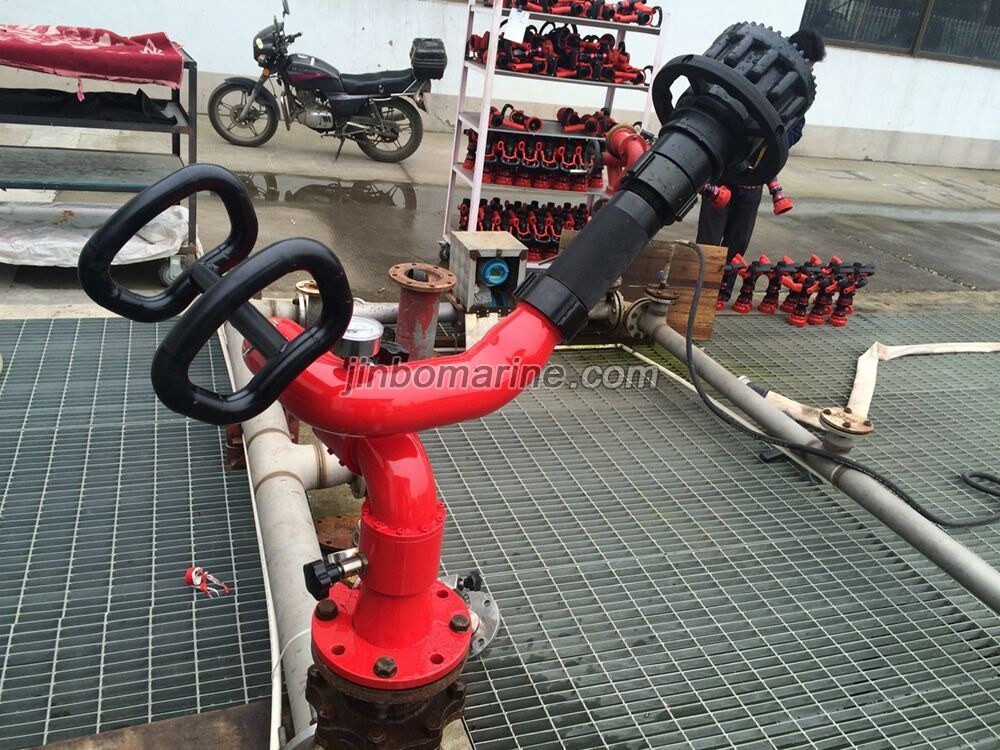

Stainless Steel Manual Fire Monitor PS80B
Type: PS80B Flow Range: 0-80 L/S (0-1250GPM) Working Pressure: 10 bar Max Reach @ Max Flow: 80m Range of motion: -45°~+90°Vert , 360°Rot Max fog angle ：120° Horizontal Control ：Lever A...
Loading product images...
Stainless Steel Manual Fire Monitor PS80B
PDF Datasheet
We can supply according to your requirement.
China Stainless Steel Manual Fire Monitor PS80B:
Type: PS80B
Flow Range: 0-80 L/S (0-1250GPM)
Working Pressure: 10 bar
Max Reach @ Max Flow: 80m
Range of motion: -45°~+90°Vert , 360°Rot
Max fog angle ：120°
Horizontal Control ：Lever Action Rotational Lock
Material (body)：Stainless Steel
Material (nozzle)：Aluminum
Material (Tiller controll) ： Stainless Steel
Pump requirement for minimum performance：30L/S@ 8 bar
Pipe dimensions for installation: 4 Inch
Monitor Inlet: DN100 flange
Monitor Outlet：2.5 inch (65mm)
Paint: Fire Red
