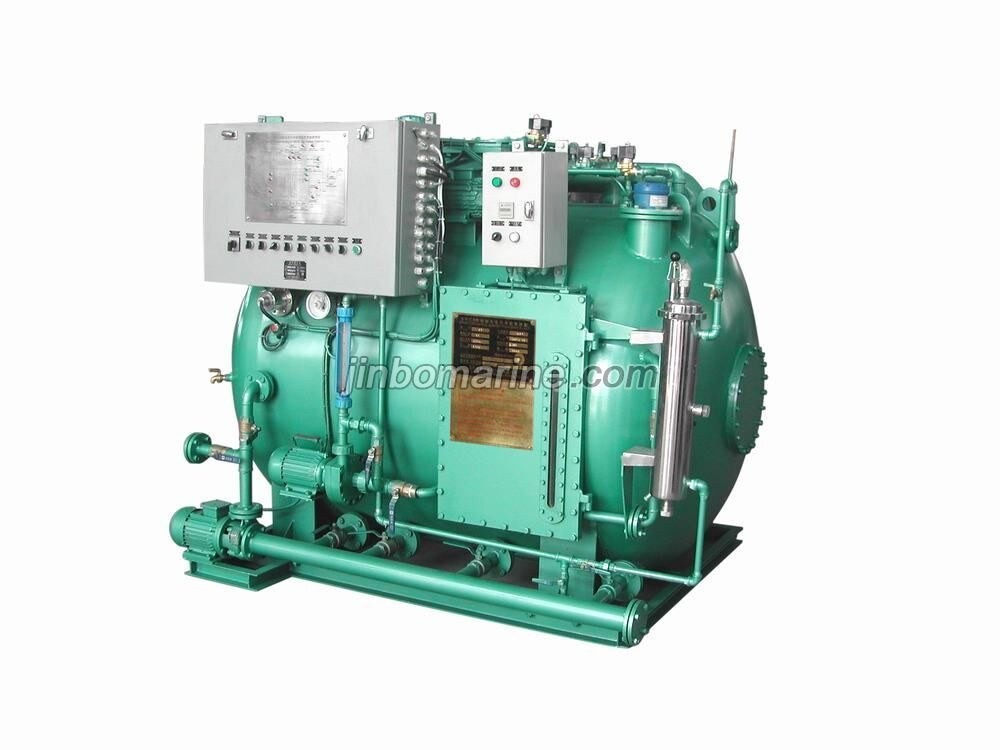

SWCM Sewage Treatment Plant

Request a Quote Not what you need, please send your RFQs via Email.

Details

Product Description:

The SWCM type marine sewage treatment plant uses activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively and reach at the IMO new effluent standard or other stricter requirements.

Working Principle:

The device adopts activated sludge, contact oxidizing and principle of biologic membrane to digest the organic pollutant, which can treat sewage effectively andmeetthe IMO new effluent standard or other stricter requirements.

Technical Feature:

1.Adopting horizontal circular design, ellipse closures on both ends, pressure resistance and compact structure.

2.The device is adopted auto-control, and compliance with the requirement of 24-hours unattended cabin.

3.Adopting the "MBR" technology, devices allow to the narrow size, and solve the conflict of small space of cabin, but

big volume of device.

4.The intermittent aeration in bio-membrane tank and hollow fiber membrane tank, form the process of "aerobic -

anoxic", and resolve the problem of "nitrogen and phosphorus removal".

5.The device is adopting the principle of“air-lifting”to transfer the sludge from sediment tank and membrane tank

to aeration tank, meantimes the“pump stops and air never stopped”, so as the scale on the membrane surface comes

down. Due to back flushing and clean the membrane“online”usd technology patent.

6."On-line" cleaning technology, making the dirt on membrane off automatically, recover membrane flux. It can be

solved the problem of opening the cleaning or replacement of membrane difficultly caused by the small space in cabin.

7.The effluent after further treatment can be reached at the requirement of“water recovery”.

Technical Data:

Model LOAD Rated capacity(men) Max capacity(men) External dimension(mm)L×W×H weight
Average load(L/d) Peak load(L/h) Organic load(kgBOD5/d) Dry weight(kg) Wet weight(kg)
SWCM-10 840 105 0.42 10 12 1510×1200x1300 900 1775
SWCM-15 1190 149 0.595 15 17 1870x1200x1400 1000 2283
SWCM-20 1540 193 0.77 20 22 1745x1400x1525 1000 2640
SWCM-25 1890 237 0.945 25 27 1935x1400x1560 1100 2740
SWCM-30 2310 289 1.155 30 33 1985x1500x1650 1200 3500
SWCM-40 3080 385 1.54 40 44 2400x1600x1700 1300 4400
SWCM-50 3780 473 1.89 50 54 2410x1700x1850 1450 5073
SWCM-60 4480 560 2.24 60 64 2670x1700x1850 1600 5270
SWCM-80 6020 753 3.01 80 86 2780x1900x2050 1850 6517
SWCM-100 7700 963 3.85 100 110 2795x2000x2200 2200 8268
SWCM-120 9100 1138 4.55 120 130 3000x2000x2200 2300 9166
SWCM-150 11200 1400 5. 6 150 160 3050x2200x2300 2800 11340
SWCM-200 14700 1838 7.35 200 210 3600x2200x2350 3000 13267
SWCM-250 18200 2275 9.1 250 260 3880x2400x2570 3300 16538
SWCM-300 23100 2888 11.55 300 330 4750x2400x2570 3700 20357
SWCM-400 30800 3850 15.4 400 440 5950x2400x2570 4200 25417

Export Packing:
