SZL65A II Model Double-Cylinder Paper Filter

The filter model representation is as follows:
SZL→SBL represent the double berrelled
65→200 representations passes diameters 200mm

Work pressure Flow Safe filter cylinder precision Normal using precison Pressure difference of safe value opening Pressure difference of by-pass valve opening
0.06Mpa 2x25m³/h 60um 10-15um 0.2±0.02Mpa 0.4±0.02Mpa

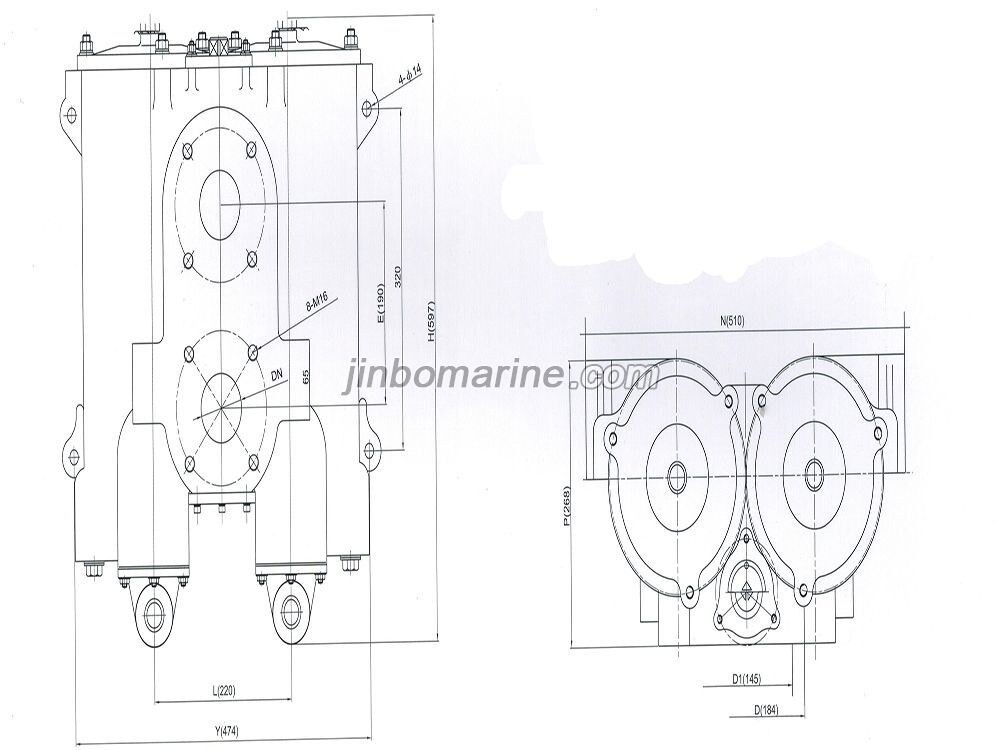

SZL65A II Model Double-Cylinder Paper Filter Diagram



SZL65A II Model Double-Cylinder Paper Technical Parameters

Model Current capacity(referencem³/h) Passes the diameter and the joint size(mm) External dimensions(mm) Installing size(mm) Weight(kg)
DN K E R r 4-M1 H1 H2 L N P W V Y Z 4-M2
SZL20 0.5-1.5 20 60 50 22 12 10 320 60 95 85 193 184 100 53 75 35 10 8
SZL25 1.5-2 25 62 55 25 12 10 375 77 110 98 216 206 100 70 80 40 10 3
SZL25 2-4 32 75 70 35 15 12 420 90 130 125 264 226 120 80 90 40 12 19
SZL25 4-6 40 75 70 35 15 12 445 90 130 125 264 226 120 80 90 40 12 22
DN D D1 E N-M1 H1 L N P Y Z N-D
SZL65A I 25-50 65 184 145 190 8-M16 597 220 510 268 474 320 4-ᵩ14
SZL65A II 40-80 65 184 145 190 8-M16 780 220 510 268 474 320 4-ᵩ14
